BSPP Breakaway Couplings

At Catford Engineering we offer a wide range of hydraulic products. Browse our BSPP Breakaway Couplings specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

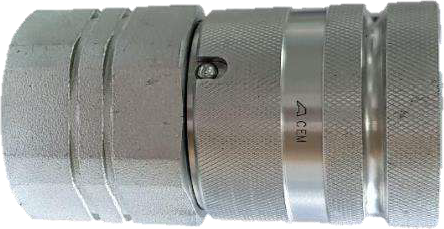

Tema Type Coupling

QTC Tema Type Coupling

  • Material Steel
  • Valve Type Poppet
APPLICATIONS
A rugged high flow coupling offering minimum pressure drop and minimum flow drop. Particularly suited to hydraulic applications in the transport industry. Also suited to the high flow requirements of the commercial carpet cleaning industry.
FEATURES
Manual locking ring to prevent accidental disconnection Double O Ring for improved sealing
TECHNICAL
Coupler Body – Steel, Trivalent Plated Poppet Type Steel Valve Seals – Nitrile (Buna N) with PTFE backup ring Temperature Range: -25C to +125C

SEAL KITS

Body  Size Item No Price Inc. GST
3/8″ QTCSK-06F $5.50
1/2″ QTCSK-08F $5.50
3/4″ QTCSK-12F $8.80
1″ QTCSK-16F $8.80
Coupler Male/FemaleBody SizeThread T DashW.P. (Bar)*Price Inc. GST
QTC-06MF3/8” BSPP3/8″-6350$90.20
QTC-08MF1/2″ BSPP1/2″-8350$125.40
QTC-12MF3/4″ BSPP3/4″-12300$198.00
QTC-16MF1″BSPP1″-16300$308.00
Coupler Female Body Size Thread T Dash W.P. (Bar)* Price Inc. GST
QTC-06F 3/8″ BSPP 3/8″ -6 350 $77.00
QTC-08F 1/2″ BSPP 1/2″ -8 350 $102.30
QTC-12F 3/4″ BSPP 3/4″ -12 300 $174.90
QTC-16F 1″ BSPP 1″ -16 300 $238.70
Coupler Male Body Size Thread T Dash W.P. (Bar)* Price Inc. GST
QTC-06M 3/8″ BSPP 3/8″ -6 350 $28.60
QTC-08M 1/2″ BSPP 1/2″ -8 300 $44.00
QTC-12M 3/4″ BSPP 3/4″ -12 300 $57.20
QTC-16M 1″ BSPP 1″ -16 300 $85.80

Female Coupler

Male Coupler

Flat Face High Pressure

QFH Flat Face High Pressure

  • Material Steel
  • Valve Type Poppet
APPLICATIONS
Widely used in the public utility markets where oil spillage can constitute a serious hazard. Higher working pressures, improved flow rating and lower pressure drop than the standard QFF series. Increased number of connection balls reduces brinelling under arduous conditions.
TECHNICAL

Coupler Body – Steel, Trivalent Plated
Standard Seals – Nitrile NBR
Temperature Range: -20C to +120C

Coupler Male/FemaleBody SizeThread T DashW.P. (Bar)*B.P. (Bar)*Price Inc. GST
QFH-04MF1/4″BSPP1/4″-44201250$130.00
QFH-06MF3/8″BSPP3/8″-63501000$194.00
QFH-08MF1/2″BSPP1/2″-83301000$220.00
QFH-12MF3/4″BSPP3/4″-123301000$334.00
QFH-16MF1″BSPP1″-16300800$548.00
Coupler FemaleBody SizeThread T DashW.P. (Bar)*B.P. (Bar)*Price Inc. GST
QFH-04F1/4″BSPP1/4″-44201250$94.00
QFH-06F3/8″BSPP3/8″-63501000$140.00
QFH-08F1/2″BSPP1/2″-83301000$154.00
QFH-12F3/4″BSPP3/4″-123301000$236.00
QFH-16F1″BSPP1″-16300800$390.00
Coupler MaleBody SizeThread T DashW.P. (Bar)*B.P. (Bar)*Price Inc. GST
QFH-04M1/4″BSPP1/4″-44201250$66.00
QFH-06M3/8″BSPP3/8″-63501000$98.00
QFH-08M1/2″BSPP1/2″-83301000$110.00
QFH-12M3/4″BSPP3/4″-123301000$168.00
QFH-16M1″BSPP1″-16300800$264.00

Female Coupler

Male Coupler

Plastic Caps and Plugs

To suit QFH High Pressure Flat Face

Caps Size Thread Price Inc. GST
QPC-04-FF 1/4″ BSPP $5.50
QPC-06-FF 3/8″ BSPP $6.60
QPC-08-FF 1/2″ BSPP $8.80
QPC-12-FF 3/4″ BSPP $13.20
QPC-16-FF 1″ BSPP $16.50
Plugs Size Thread Price Inc. GST
QPP-04-FF 1/4″ BSPP $5.50
QPP-06-FF 3/8″ BSPP $6.60
QPP-08-FF 1/2″ BSPP $8.80
QPP-12-FF 3/4″ BSPP $13.20
QPP-16-FF 1″ BSPP $16.50
Coupler Male/FemaleBody SizeThread T DashW.P. (Bar)*B.P. (Bar)*Price Inc. GST
QFH-04MF1/4″BSPP1/4″-44201250$130.00
QFH-06MF3/8″BSPP3/8″-63501000$194.00
QFH-08MF1/2″BSPP1/2″-83301000$220.00
QFH-12MF3/4″BSPP3/4″-123301000$334.00
QFH-16MF1″BSPP1″-16300800$548.00
Coupler FemaleBody SizeThread T DashW.P. (Bar)*B.P. (Bar)*Price Inc. GST
QFH-04F1/4″BSPP1/4″-44201250$94.00
QFH-06F3/8″BSPP3/8″-63501000$140.00
QFH-08F1/2″BSPP1/2″-83301000$154.00
QFH-12F3/4″BSPP3/4″-123301000$236.00
QFH-16F1″BSPP1″-16300800$390.00
Coupler MaleBody SizeThread T DashW.P. (Bar)*B.P. (Bar)*Price Inc. GST
QFH-04M1/4″BSPP1/4″-44201250$66.00
QFH-06M3/8″BSPP3/8″-63501000$98.00
QFH-08M1/2″BSPP1/2″-83301000$110.00
QFH-12M3/4″BSPP3/4″-123301000$168.00
QFH-16M1″BSPP1″-16300800$264.00

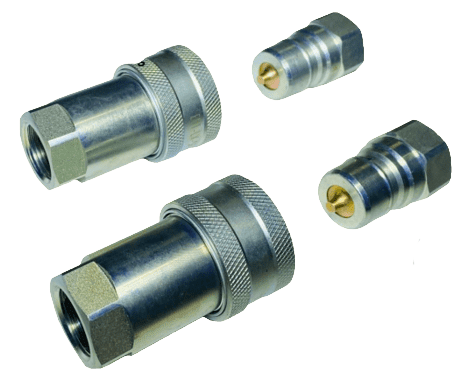

1" BSP Single Acting Hydraulic Quick Release Coupling Male / Female

Single Acting sleeve is manually retracted to connect or disconnect
  • Part Number - C80-16M $60.50 Inc GST for one Male Nipple
  • Part Number - C80-16F $132.00 Inc GST for one Female Nipple
  • Part Number - C80-16MF $187.00 Inc GST for one Male & one Female

3/4" BSP Single Acting Hydraulic Quick Release Coupling Male / Female

Single Acting sleeve is manually retracted to connect or disconnect
  • Part Number - C80-12M $37.30 Inc GST for one Male Nipple
  • Part Number - C80-12F $88.00 Inc GST for one Female Coupling
  • Part Number - C80-12MF $110.00 Inc GST for one Male & one Female

ISO Hydraulic Coupling 1/2" BSP Push Pull Coupling Male / Female

Double Acting sleeve can be manually moved in either direction to connect or disconnect.

  • Part Number - C81-08M $18.50 Inc GST for one Male Nipple
  • Part Number - C81-08F $36.00 Inc GST for one Female Coupling
  • Part Number - C81-08MF $39.00 Inc GST for one Male & one Female

3/8" BSP Single Acting Hydraulic Quick Release Coupling Male / Female

Single Acting sleeve is manually retracted to connect or disconnect
  • Part Number - C80-06M $17.60 Inc GST for one Male Nipple
  • Part Number - C80-06F $39.60 Inc GST for one Female Coupling
  • Part Number - C80-06MF $50.00 Inc GST for one Male & one Female
