Clevis End Hydraulic Cylinders

Call: 0418 641 566

Download Brochure

Email: sales@catford.com.au

5/5

Clevis End Hydraulic Rams

At Catford Engineering we offer a wide range of hydraulic products. Browse our clevis end hydraulic cylinders specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
iso compliance quality guarantee stamp with check mark

ISO 3834-2 (Fusion Welding Process)

3 yellow clevis end hydraulic rams

Clevis End Hydraulic Rams Specifications

Cylinder Type:   We use Metric Materials in Catford Cylinders.Double Acting with Clevis end
4 & 6 Port Cylinders:Allowing simple easy access around machinery brackets
Cylinder Working Pressure:210 Bar – 3045 PSI
Seals Maximum Operating Pressures and Conditions:
  • Pressures: 414 Bar – 6000 PSI
  • Temperature: -30C to +110C
  • Speed: 0.5 Metres Per Second
  • Shock and Load Holding Capabilities
  • Double acting K-DAS piston seal providing positive displacement under all rated pressure situations
Rod Material & Hardening:
  • EN8D/C45 round bar
  • Toughened and Induction Hardened
  • Chrome Thickness: 20 to 30 Microns hard chromed piston rod for superior corrosion resistance
Tube Material:
  • CDS ST52/E355 steel tube
  • Seamless steel tube accurately honed to ensure smooth operation and extended seal life
End Head, Rod End and Piston Material:EN8D/C45 tensile strength – 650 N/mm^2
Gland Material:SG IRON SG500/7 Spheroidal Graphit Cast Iron
Colour:Choice of Industrial Gloss Yellow or Industrial Gloss Black
Machining Tolerances:
  • All threads machined to 2A/B specification
  • All pin holes machined to D9 tolerance
  • All machine surface finishes to 3.2um Ra.

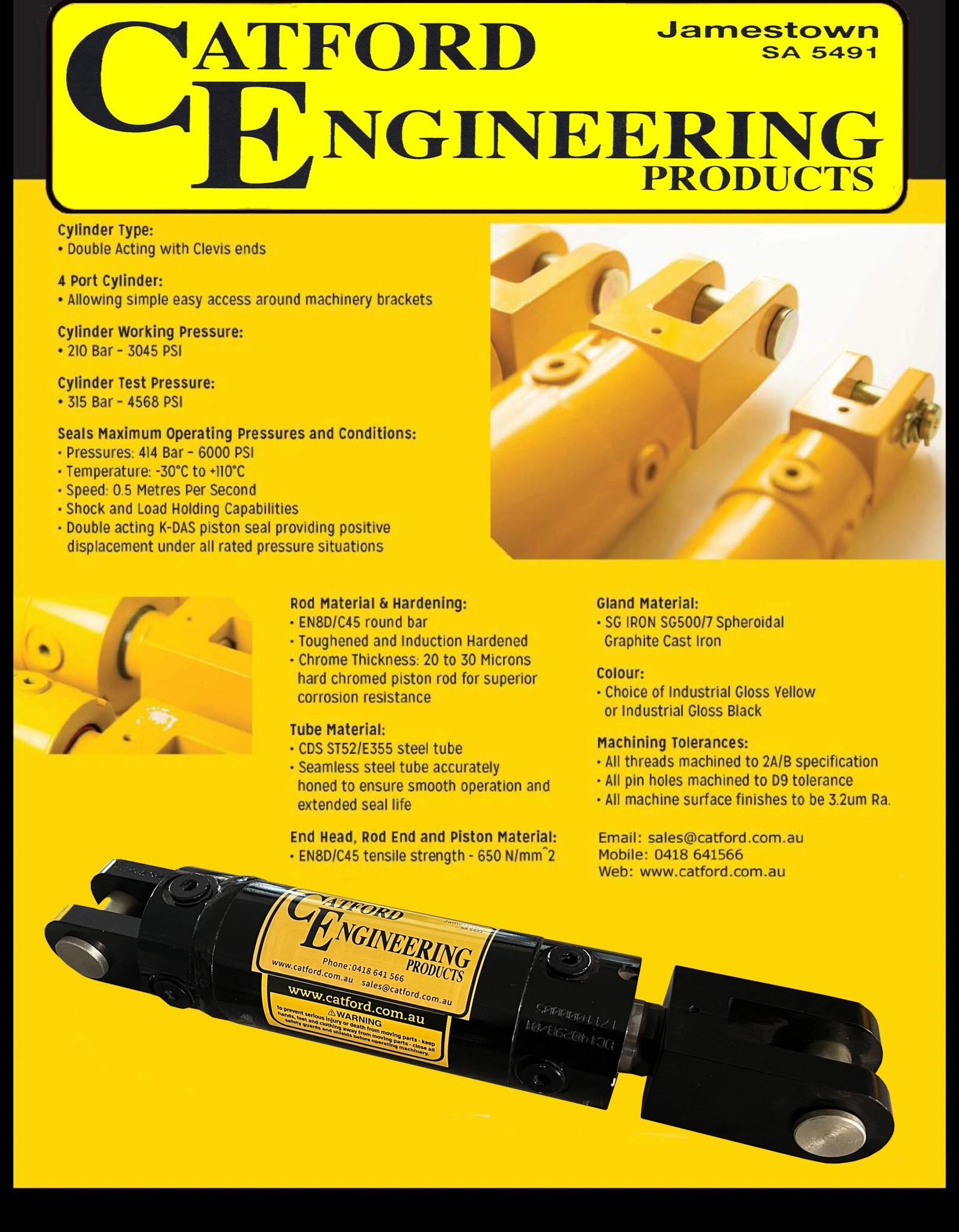

Download Brochure

Clevis End Hydraulic Cylinders Pricing

Part No.BoreStrokeRod diameterClosed lengthOpen lengthPort sizePin diameterWeight KGPrice Inc. GST
CRY152
1-1/2″
40mm
2″ – 51mm
7/8″
22mm
11 1/2″ – 292mm13 1/2″ – 343mm
9/16″ UN
“O” Ring
3/4″
19.05mm
6.4$425
CRY1544″ – 102mm13 1/2″ – 343mm17 1/2″ – 444mm6.7$435
CRY1566″ – 152mm15 1/2″ – 393mm21 1/2″ – 546mm7$440
CRY1588″ – 203mm17 1/2″ – 444mm25 1/2″ – 647mm7.3$445
CRY151010″ – 254mm19 1/2″ – 495mm29 1/2″ – 749mm7.5$450
CRY151212″ – 305mm21 1/2″- 546mm33 1/2″ – 851mm7.8$455
CRY151414″ – 356mm23 1/2″ – 597mm37 1/2″ – 953mm8.1$495
CRY151616″ – 406mm25 1/2″ – 647mm41 1/2″ – 1053mm8.3$505
CRY151818″ – 457mm27 1/2″ – 698mm45 1/2″ – 1155mm8.6$520
CRY152020″ – 508mm29 1/2″ – 749mm49 1/2″ – 1257mm8.9$525
CRY152222″ – 559mm31 1/2″ – 800mm53 1/2″ – 1359mm9.3$545
CRY152424″ – 610mm33 1/2″ – 851mm57 1/2″ – 1460mm9.4$570
CRY153030″ – 762mm39 1/2″ – 1003mm69 1/2″ – 1765mm10.2$605
CRY153636″ – 914mm45 1/2″ – 1155mm81 1/2″ – 2069mm11$670
CRY154848″ – 1219mm57 1/2″ – 1460mm105 1/2″ – 2679mm13.5$756
CRY22
2″
50mm
2″ – 51mm
1-1/4″
32mm
14 1/4″ – 362mm16 1/4″ – 413mm
9/16″ UN
“O” Ring
1″
25.4mm
6.6$435
CRY244″ – 102mm16 1/4″ – 413mm20 1/4″ – 514mm7.4$440
CRY266″ – 152mm18 1/4″ – 463mm24 1/4″ – 616mm8.2$445
CRY288″ – 203mm20 1/4″ – 514mm28 1/4″ – 717mm9$450
CRY21010″ – 254mm22 1/4″ – 565mm32 1/4″ – 819mm9.8$455
CRY21212″ – 305mm24 1/4″ – 616mm36 1/4″ – 921mm10.6$475
CRY21414″ – 356mm26 1/4″ – 667mm40 1/4″ – 1022mm11.2$500
CRY21616″ – 406mm28 1/4″ – 717mm44 1/4″ – 1123mm12.2$505
CRY21818″ – 457mm30 1/4″ – 768mm48 1/4″ – 1225mm13$515
CRY22020″ – 508mm32 1/4″ – 819mm52 1/4″ – 1327mm13.8$530
CRY22222″ – 559mm34 1/4″ – 870mm56 1/4″ – 1429mm14.6$565
CRY22424″ – 610mm36 1/4″ – 921mm60 1/4″ – 1530mm15.4$580
CRY22626″ – 660mm38 1/4″ – 971mm64 1/4″ – 1631mm16.2$605
CRY22828″ – 711mm40 1/4″ – 1022mm68 1/4″ – 1733mm17$670
CRY23030″ – 762mm42 1/4″ – 1073mm721/4″ – 1835mm17.8$705
CRY23636″ – 914mm48 1/4″ – 1225mm84 1/4″ – 2139mm20.2$730
CRY24242″ – 1067mm54 1/4″ – 1378mm96 1/4″ – 2445mm22.6$815
CRY24848″ – 1219mm60 1/4″ – 1530mm108 1/4″ – 2749mm25$840
CRY252
2-1/2″
63mm
2″ – 51mm
1-1/2″
40mm
14 1/4″ – 362mm16 1/4″ – 413mm
3/4″ UN
“O” Ring
1″
25.4mm
8.6$440
CRY2544″ – 102mm16 1/4″ – 413mm20 1/4″ – 514mm9.1$445
CRY2566″ – 152mm18 1/4″ – 463mm24 1/4″ – 616mm9.8$450
CRY2588″ – 203mm20 1/4″ – 514mm28 1/4″ – 717mm10.8$455
CRY251010″ – 254mm22 1/4″ – 565mm32 1/4″ – 819mm11.9$465
CRY251212″ – 305mm24 1/4″ – 616mm36 1/4″ – 921mm12.8$480
CRY251414″ – 356mm26 1/4″ – 667mm40 1/4″ – 1022mm13.6$505
CRY251616″ – 406mm28 1/4″ – 717mm44 1/4″ – 1123mm14.1$510
CRY251818″ – 457mm30 1/4″ – 768mm48 1/4″ – 1225mm14.8$520
CRY252020″ – 508mm32 1/4″ – 819mm521/4″ – 1327mm15.7$535
CRY252222″ – 559mm34 1/4″ – 870mm56 1/4″ – 1429mm16.6$570
CRY252424″ – 610mm36 1/4″ – 921mm60 1/4″ – 1530mm17.6$585
CRY252626″ – 660mm38 1/4″ – 971mm64 1/4″ – 1631mm18.6$640
CRY252828″ – 711mm40 1/4″ – 1022mm68 1/4″ – 1733mm19.7$680
CRY253030″ – 762mm42 1/4″ – 1073mm721/4″ – 1835mm20.6$715
CRY253636″ – 914mm48 1/4″ – 1225mm84 1/4″ – 2139mm23.2$745
CRY254242″ – 1067mm54 1/4″ – 1378mm96 1/4″ – 2445mm26.2$895
CRY254848″ – 1219mm60 1/4″ – 1530mm108 1/4″ – 2749mm29.1$980
Part No.BoreStrokeRod diameterClosed lengthOpen lengthPort sizePin diameterWeight KGPrice Inc. GST
CRY32
3″
75mm
2″ – 51mm
1-1/2″
40mm
14 1/4″ – 362mm161/4″ – 413mm
3/4″ UN
“O” Ring
1″
25.4mm
11.6$445
CRY344″ – 102mm16 1/4″ – 413mm20 1/4″ – 515mm12.6$450
CRY366″ – 152mm18 1/4″ – 463mm24 1/4″ – 616mm13.4$455
CRY388″ – 203mm20 1/4″ – 514mm28 1/4″ – 717mm14.5$475
CRY31010″ – 254mm22 1/4″ – 565mm32 1/4″ – 819mm15.5$505
CRY31212″ – 305mm24 1/4″ – 616mm36 1/4″ – 921mm16.7$530
CRY31414″ – 356mm26 1/4″ – 667mm40 1/4″ – 1023mm17.4$575
CRY31616″ – 406mm28 1/4″ – 717mm44 1/4″ – 1124mm18.5$585
CRY31818″ – 457mm30 1/4″ – 768mm48 1/4″ – 1225mm19.3$605
CRY32020″ – 506mm32 1/4″ – 819mm52 1/4″ – 1327mm20.5$670
CRY32222″ – 559mm34 1/4″ – 870mm56 1/4″ – 1429mm21.6$715
CRY32424″ – 610mm36 1/4″ – 921mm60 1/4″ – 1531mm22.7$730
CRY32626″ – 660mm38 1/4″ – 971mm64 1/4″ – 1632mm23.9$780
CRY32828″ – 711mm40 1/4″ – 1022mm68 1/4″ – 1733mm25.2$800
CRY33030″ – 762mm42 1/4″ – 1073mm72 1/4″ – 1835mm26.4$855
CRY33636″ – 914mm48 1/4″ – 1225mm84 1/4″ – 2139mm30$910
CRY34242″ – 1067mm54 1/4″ – 1378mm96 1/4″ – 2445mm33.3$999
CRY34848″ – 1219mm60 1/4″ – 1530mm108 1/4″ – 2749mm36.9$1,130
CRY356
3-1/2″
90mm
6″ – 152mm
1-3/4″
45mm
18 1/4″ – 463mm24 1/4″ – 616mm
3/4″ UN
“O” Ring
1″
25.4mm
18.1$570
CRY3588″ – 203mm20 1/4″ – 514mm28 1/4″ – 717mm19.7$575
CRY351010″ – 254mm22 1/4″ – 565mm32 1/4″ – 819mm21.2$630
CRY351212″ – 305mm24 1/4″ – 616mm36 1/4″ – 921mm22.8$670
CRY351414″ – 356mm26 1/4″ – 667mm40 1/4″ – 1023mm24.4$680
CRY351616″ – 406mm28 1/4″ – 717mm44 1/4″ – 1124mm25.9$705
CRY351818″ – 457mm30 1/4″ – 768mm48 1/4″ – 1225mm27.4$755
CRY352020″ – 508mm32 1/4″ – 819mm52 1/4″ – 1327mm29$780
CRY352424″ – 610mm36 1/4″ – 921mm60 1/4″ – 1531mm32.1$800
CRY353030″ – 762mm42 1/4″ – 1073mm72 1/4″ – 1835mm36.7$910
CRY353636″ – 914mm48 1/4″ – 1225mm84 1/4″ – 2139mm41.4$1,045
CRY354242″ – 1067mm54 1/4″ – 1378mm96 1/4 – 2445mm46.1$1,135
CRY354848″ – 1219mm60 1/4″ – 1530mm108 1/4″ – 2749mm50.7$1,205
CRY48
4″
100mm
8″ – 203mm
1-3/4″
45mm
20 1/4″ – 514mm28 1/4″ – 717mm
3/4″ UN
“O” Ring
1″
25.4mm
22$605
CRY41010″ – 254mm22 1/4″ – 565mm32 1/4″ – 819mm23.5$670
CRY41212″ – 305mm24 1/4″ – 616mm36 1/4″ – 921mm25$705
CRY41414″ – 356mm26 1/4″ – 667mm40 1/4″ – 1023mm26.5$720
CRY41616″ – 406mm28 1/4″ – 717mm44 1/4″ – 1124mm28$756
CRY41818″ – 457mm30 1/4″ – 768mm48 1/4″ – 1225mm29.7$790
CRY42020″ – 508mm32 1/4″ – 819mm52 1/4″ – 1327mm31.4$835
CRY42424″ – 610mm36 1/4″ – 921mm60 1/4″ – 1531mm34.6$910
CRY43030″ – 762mm42 1/4″ – 1073mm72 1/4″ – 1835mm39$999
CRY43636″ – 914mm48 1/4″ – 1225mm84 1/4″ – 2139mm45$1,175
CRY44242″ – 1067mm54 1/4″ – 1378mm96 1/4″ – 2445mm49.5$1,205
CRY44848″ – 1219mm60 1/4″ – 1530mm108 1/4″ – 2749mm55$1,335
CRY58
5″
125mm
8″ – 203mm
2″
50mm
20 1/4″ – 514mm28 1/4″ – 717mm
3/4″ UN
“O” Ring
1″
25.4mm
31$999
CRY51212″ – 305mm24 1/4″ – 616mm36 1/4″ – 921mm35$1,125
CRY51616″ – 406mm28 1/4″ – 717mm44 1/4″ – 1124mm39.1$1,235
CRY51818″ – 457mm30 1/4″ – 768mm48 1/4″ – 1225mm41.1$1,305
CRY52020″ – 508mm32 1/4″ – 819mm52 1/4″ – 1327mm43.2$1,345
CRY524
5″
125mm
24″ – 610mm
2-1/2″
63mm
36 1/4″ – 921mm60 1/4″ – 1531mm
3/4″ UN
“O” Ring
1″
25.4mm
53$1,620
CRY53030″ – 762mm42 1/4″ – 1073mm72 1/4″ – 1835mm60.5$1,800
CRY53636″ – 914mm48 1/4″ – 1225mm84 1/4″ – 2139mm68.2$2,036
CRY54242″ – 1067mm54 1/4″ – 1378mm96 1/4″ – 2445mm75.9$2,236
CRY54848″ – 1219mm60 1/4″ – 1530mm108 1/4″ – 2749mm83.2$2,390
Part No. Bore Stroke Rod diameter Closed length Open length Port size Six Ports Pin diameter Weight KG Price Inc. GST
CRY68    6″ 150mm 8″-203mm 2-1/2″ 63mm 20 1/4″ – 514mm 28 1/4″ – 717mm 3/4″ UN “O” Ring6 Ports Three Ports Each End 1-1/4″ 31.75mm 36 $1,660
CRY612 12″-305mm 24 1/4″ – 616mm 36 1/4″ – 921mm 45 $1,782
CRY616 16″-406mm 28 1/4″ – 717mm 44 1/4″ – 1123mm 53 $1,900
CRY620 20″-508mm 32 1/4″- 819mm 52 1/4″- 1327mm 62 $2,065
CRY624 24″-610mm 36 1/4 – 921mm 60 1/4″-1531mm 68 $2,225
CRY630 30″-762mm 42 1/4″ – 1073mm 72 1/4″ -1835mm 75 $2,460
CRY636 36″- 914mm 48 1/4″ – 1225mm 84 1/4″-2139mm 80 $2,710
CRY648 48″-1219mm 60 1/4″- 1530mm 108 1/4″-2749mm 188 $3,200
