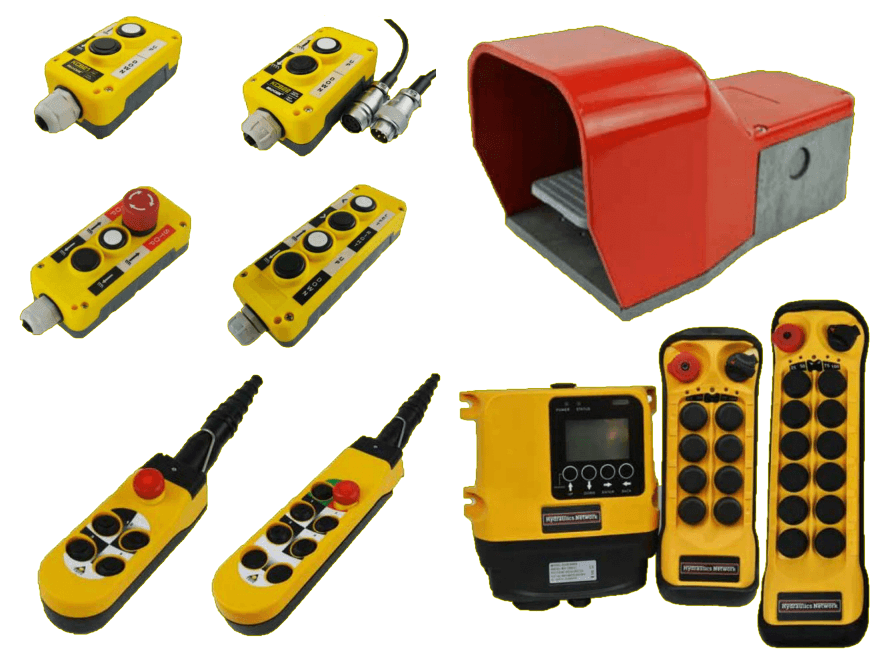

At Catford Engineering we offer a wide range of electrical controllerss. Browse our electrical controllers specifications and pricing below.
If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.
ISO 3834-2 (Fusion Welding Process)
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Cord | IP Rating | Voltage | Connector | E-Stop |
|---|---|---|---|---|---|---|---|---|

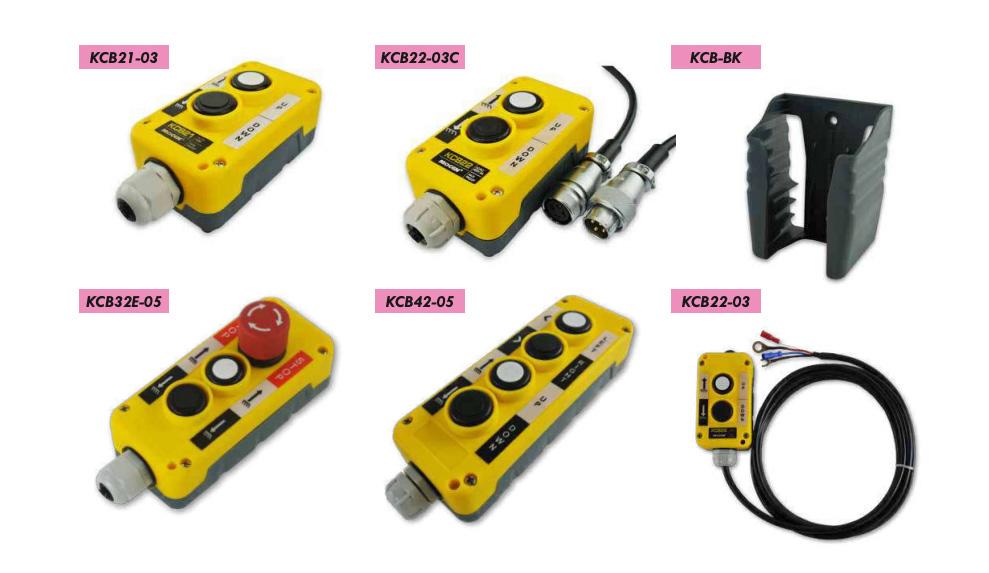

| KCB21-03 | $ | 2 | S/A | 3 mtr | 55 | 5v – 48v | – | – |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Cord | IP Rating | Voltage | Connector | E-Stop |
|---|---|---|---|---|---|---|---|---|
| KCB22-03 | $ | 2 | D/A | 3 mtr | 55 | 5v – 48v | – | – |
| KCB22-10 | $ | 2 | D/A | 10 mtr | 55 | 5v – 48v | – | – |
| KCB42-05 | $ | 4 | D/A | 5 mtr | 55 | 5v – 48v | – | – |
| KCB62-05 | $ | 6 | D/A | 5 mtr | 55 | 5v – 48v | – | – |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Cord | IP Rating | Voltage | Connector | E-Stop |
|---|---|---|---|---|---|---|---|---|
| KCB32E-03 | $ | 2 | D/A | 3 mtr | 55 | 5v – 48v | – | Yes |
| KCB52E-05 | $ | 4 | D/A | 5 mtr | 55 | 5v – 48v | – | Yes |
| KCB72E-05 | $ | 6 | D/A | 5 mtr | 55 | 5v – 48v | – | Yes |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Cord | IP Rating | Voltage | Connector | E-Stop |
|---|---|---|---|---|---|---|---|---|
| KCB21C-03C | $ | 2 | S/A | 3 mtr | 55 | 5v – 48v | Yes | No |
| KCB22C-03C | $ | 2 | D/A | 3 mtr | 55 | 5v – 48v | Yes | No |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| KCB-BK | $ | For use with all KCB pendants |
| Buttons | IP Rating | Contact | Button Function | Max Signal Current | Max Input Current | Voltage |
|---|---|---|---|---|---|---|
| 2 | IP65 | N/O | Momentary | 3 amp | 6amp | 250v AC |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Function | Main Cord | Signal Cable | Plug | E-Stop |
|---|---|---|---|---|---|---|

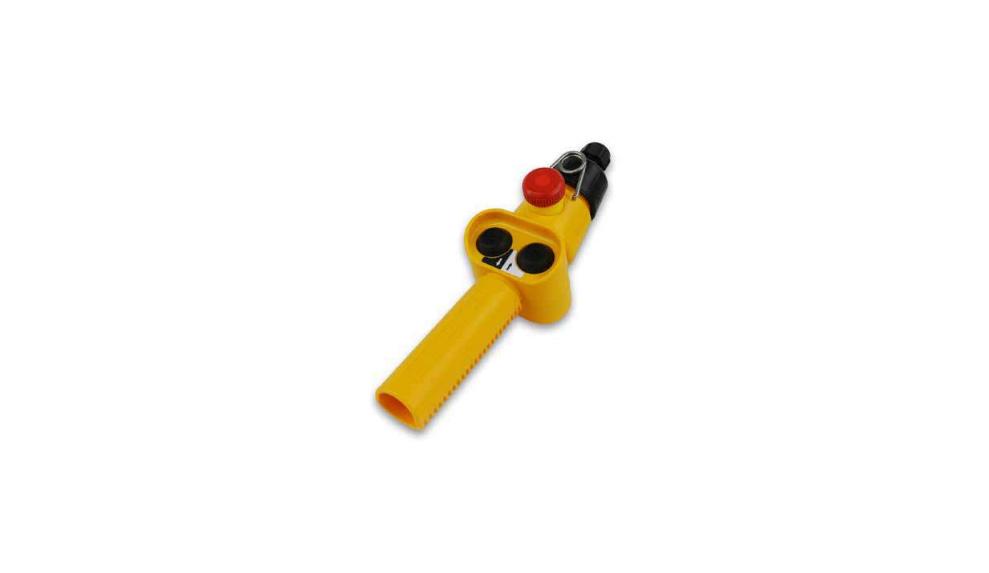

| CHARLIE | $ | No Loom | – | – | – | – |
| CHARLIE-21-03 | $ | Single Acting | 3000mm | 300mm | DIN 43650-A | – |
| CHARLIE-22-03 | $ | Double Acting | 3000mm | 300mm | DIN 43650-A | – |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Function | Main Cord | Signal Cable | Plug | E-Stop |
|---|---|---|---|---|---|---|
| CHARLIE-E | $ | No Loom | – | – | – | Yes |
| CHARLIE-21-03E | $ | Single Acting | 3000mm | 300mm | DIN 43650-A | Yes |
| CHARLIE-22-03E | $ | Double Acting | 3000mm | 300mm | DIN 43650-A | Yes |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Contact | Button Function | Cover | IP Rating | Voltage | Material |
|---|---|---|---|---|---|---|---|---|

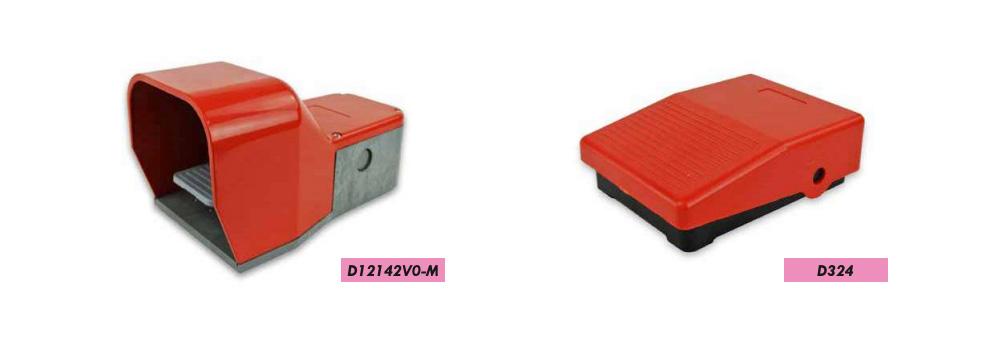

| D324 | $ | 1 | NO/NC | Momentary | No | IP40 | 10 amp/24v AC/AC15 6 amp/240v AC/AC15 4 amp/400v AC/AC15 | ABS |
| D12142V0-M | $ | 1 | NO/NC | Momentary | Yes | IP65 | ABS Base Aluminium Cover |
| IP Rating | Contact | Button Function | Max Signal Current | Max Input Current | Voltage |
|---|---|---|---|---|---|
| IP65 | N/O | Momentary | 3 amp | 6 amp | 250v AC |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Main Cord | Signal Cable | Plug | E-Stop |
|---|---|---|---|---|---|---|---|

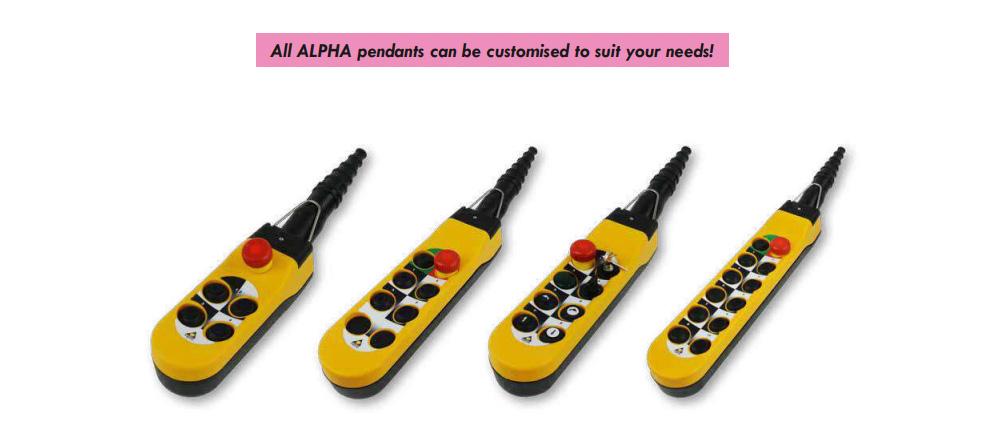

| ALPHA-4 | $ | 4 | – | – | – | – | – |
| ALPHA-6 | $ | 6 | – | – | – | – | – |
| ALPHA-8 | $ | 8 | – | – | – | – | – |
| ALPHA-12 | $ | 12 | – | – | – | – | – |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Main Cord | Signal Cable | Plug | E-Stop |
|---|---|---|---|---|---|---|---|
| ALPHA-4-03 | $ | 4 | Double Acting | 3000mm | 3000mm | DIN 43650-A | – |
| ALPHA-6-03 | $ | 6 | Double Acting | 3000mm | 3000mm | DIN 43650-A | – |
| ALPHA-8-03 | $ | 8 | Double Acting | 3000mm | 3000mm | DIN 43650-A | – |
| ALPHA-12-03 | $ | 12 | Double Acting | 3000mm | 3000mm | DIN 43650-A | – |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Buttons | Function | Main Cord | Signal Cable | Plug | E-Stop |
|---|---|---|---|---|---|---|---|
| ALPHA-4-03E | $ | 4 | Double Acting | 3000mm | 3000mm | DIN 43650-A | Yes |
| ALPHA-5-03E | $ | 5 | Double Acting | 3000mm | 3000mm | DIN 43650-A | Yes |
| ALPHA-7-03E | $ | 7 | Double Acting | 3000mm | 3000mm | DIN 43650-A | Yes |
| ALPHA-11-03E | $ | 11 | Double Acting | 3000mm | 3000mm | DIN 43650-A | Yes |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|

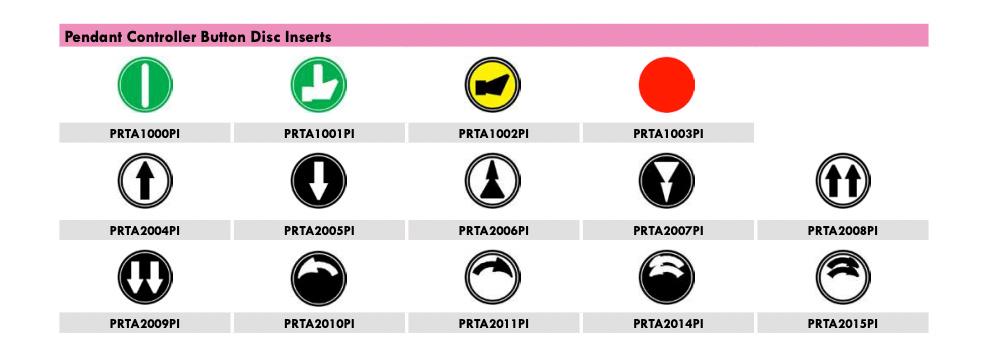

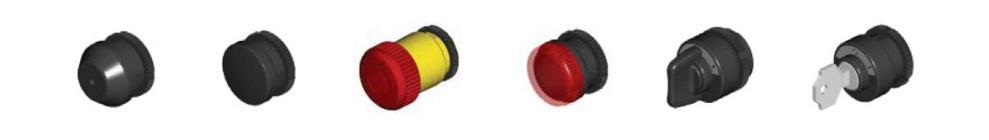

| PRTS000001 | $ | Single Push Button |
| PRTD000001 | $ | Double push button to suit PRTA2 |
| PRSL1023PI | $ | Blanking Plug |
| PRSL1009PI | $ | Emergency Stop Mushroom Push Button |
| PRSL1012PI | $ | Red Pilot Light |
| PRSL1013PI | $ | Yellow Pilot Light |
| PRSL1014PI | $ | Green Pilot Light |
| PRSL1015PI | $ | Selector Switch 0/1 Spring Return |
| PRSL1016PI | $ | Selector Switch 0/1 Maintained Positions |
| PRSL1026PI | $ | Selector Switch 1/0/2 Spring Return |
| PRSL1027PI | $ | Selector Switch 1/0/2 Maintained Positions |
| PRSL1017PI | $ | Key Selector Switch 0/1 Maintained Positions |
| PRSL1024PI | $ | Key Selector Switch 0/1 Spring Return |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Current Rating | Description |
|---|---|---|---|
| PRSL1000PI | $ | 250v AC | 1NO |
| PRSL1001PI | $ | 250v AC | 1NC |
| PRSL1004PI | $ | 250v AC | Lamp Holder (Without Bulb) |
| PRSL1002PI | $ | 250v AC | Double Switch X 2 |
| PRSL1003PI | $ | 250v AC | Double Switch X 3 |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Avail. Buttons | Output Relays | Frequency | Transmitting Power | Voltage | Enclosure Rating | Rechargeable Transmitter |
|---|---|---|---|---|---|---|---|---|

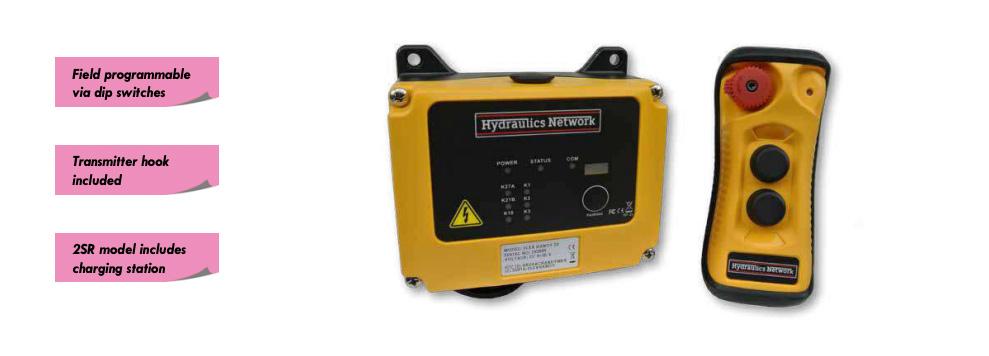

| FLEX HANDY-2S | $ | 2 | 4 | 433.050MHz ~ 434.575MHz | 2.0mW | 9~36VDC | IP66 | No |
| FLEX HANDY-2SR | $ | 2 | 4 | 433.050MHz ~ 434.575MHz | 2.0mW | 9~36VDC | IP66 | Yes |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| TXC-301 | $ | Replacment transmitter |
| TXC-301R | $ | Replacment transmitter (recharagble) |

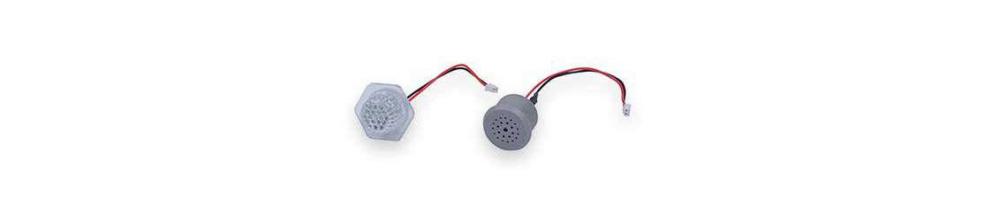

| MLG-02 | $ | Receiver-mounted safety beacon |
| MBZ-02 | $ | Receiver-mounted safety horn |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Avail. Buttons | Output Relays | Frequency | Transmitting Power | Voltage | Enclosure Rating |
|---|---|---|---|---|---|---|---|

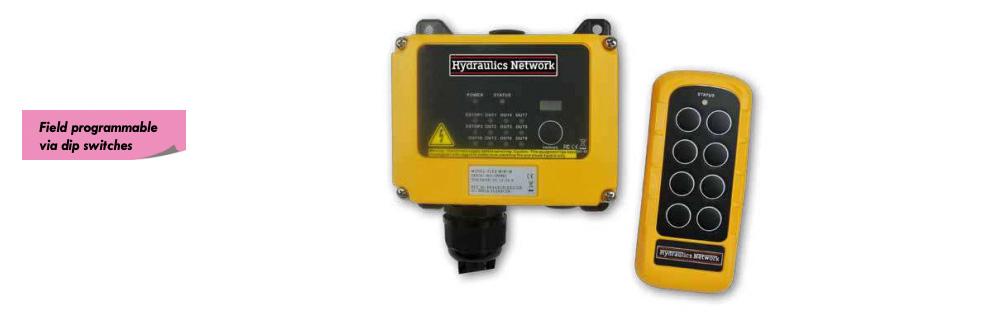

| FLEX MINI-M | $ | 8 | 8 | 433.050MHz ~ 434.575MHz | 5mW | 9~36VDC | IP66 |
| TXC-70 | $ | Replacement Transmitter | |||||
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Avail. Buttons | Digital Outputs | Frequency | Voltage | Enclosure Rating | Rechargeable |
|---|---|---|---|---|---|---|---|

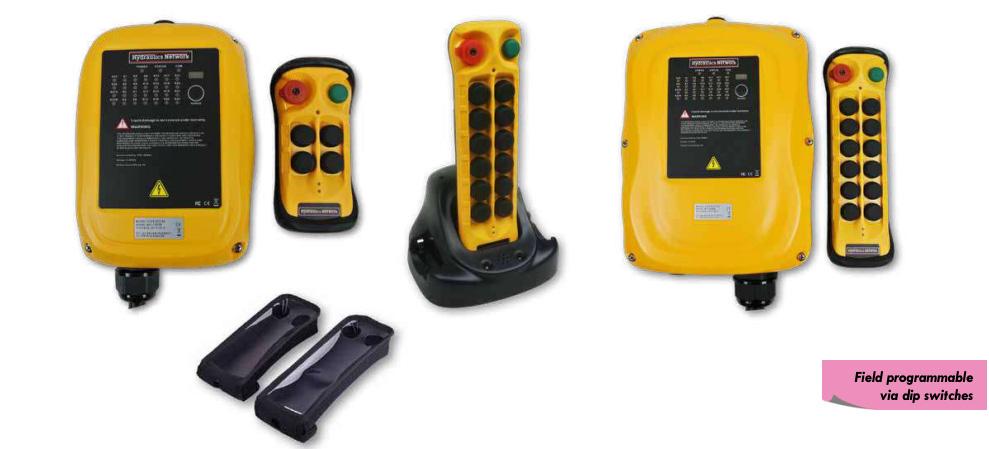

| FLEX ECO-4S | $ | 4 | 5 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | – |
| FLEX ECO-6S | $ | 6 | 7 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | – |
| FLEX ECO-8S | $ | 8 | 9 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | – |
| FLEX ECO-12S | $ | 12 | 13 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | – |
| FLEX ECO-12X-MS | $ | 12 | 25 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | – |
| FLEX ECO-4SR | $ | 4 | 5 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | Yes |
| FLEX ECO-6SR | $ | 6 | 7 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | Yes |
| FLEX ECO-8SR | $ | 8 | 9 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | Yes |
| FLEX ECO-12SR | $ | 12 | 13 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | Yes |
| FLEX ECO-12X-MSR | $ | 12 | 25 | 433.050MHz ~ 434.575MHz | 9~36VDC | IP66 | Yes |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| TXC-101 | $ | 4-button replacment transmitter |
| TXC-102 | $ | 6-button replacment transmitter |
| TXC-103 | $ | 8-button replacment transmitter |
| TXC-104 | $ | 12-button replacment transmitter |
| TXC-101R | $ | 4-button replacment transmitter (rechargeable) |
| TXC-102R | $ | 6-button replacment transmitter (rechargeable) |
| TXC-103R | $ | 8-button replacment transmitter (rechargeable) |
| TXC-104R | $ | 12-button replacment transmitter (rechargeable) |
| CHR-106 | $ | Charging station |
| MBZ-02 | $ | Receiver-mounted safety beacon |
| MLG-02 | $ | Receiver-mounted safety horn |
| EAK-101 | $ | External antenna |
| TPC-201 | $ | Flex Eco 4 transmitter padded casing w/ shoulder strap |
| TPC-202 | $ | Flex Eco 6 transmitter padded casing w/ shoulder strap |
| TPC-203 | $ | Flex Eco 8 transmitter padded casing w/ shoulder strap |
| TPC-204 | $ | Flex Eco 12 transmitter padded casing w/ shoulder strap |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Avail. Buttons | Digital Outputs | Analogue Outputs | Frequency | Voltage |
|---|---|---|---|---|---|---|

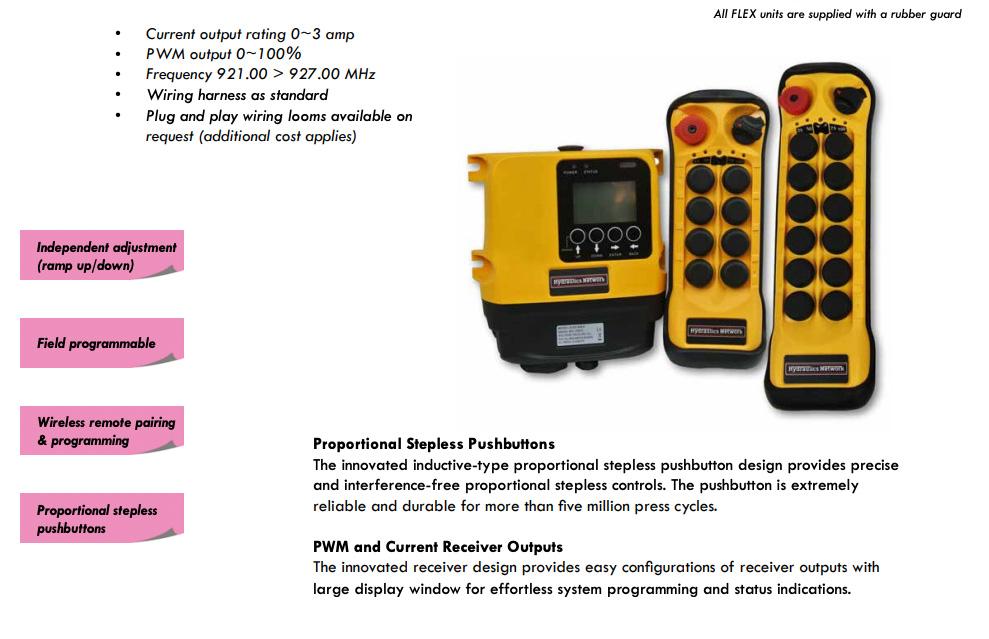

| Flex 8EPH | $ | 8 stepless pushbuttons | 12 digital outputs (SSR) | 10 analog outputs (PWM and current) | 921~927MHz | 12-24v DC |
| Flex 12EPH | $ | 12 stepless pushbuttons | 16 digital outputs | 14 analog outputs (PWM and current) | 921~927MHz | 12-24v DC |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| TXC-501 | $ | 8EPH replacment transmitter |
| TXC-502 | $ | 12EPH replacment transmitter |
| CHR-206 | $ | Charging station |
| MBZ-02 | $ | Receiver-mounted safety beacon |
| MLG-02 | $ | Receiver-mounted safety horn |
| EAK-202 | $ | External antenna |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Control Type | Digital Outputs | Analogue Outputs | Function Outputs | Voltage |
|---|---|---|---|---|---|---|

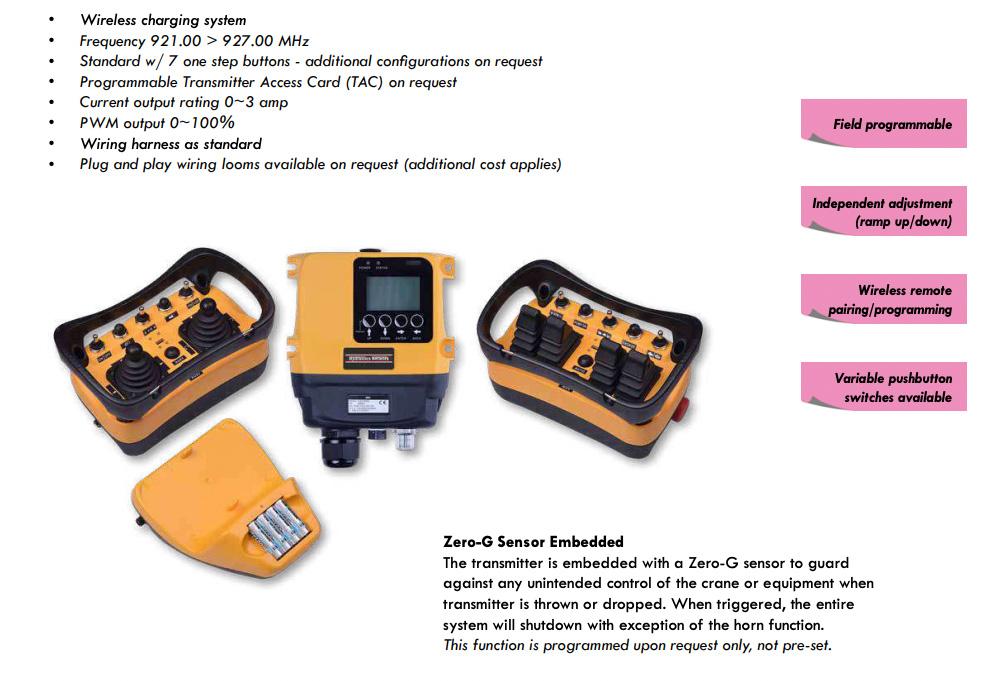

| Flex 2JB-HRX-L | $ | Stepless lever | 12 outputs (SSR) | 8 outputs (PWM & current) | 2 analogue/digital outputs | 12-24v DC |
| Flex 2JB-HRX-J | $ | Joystick dual access cross gate | 12 outputs (SSR) | 8 outputs (PWM & current) | 2 analogue/digital outputs | 12-24v DC |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description |
|---|---|---|
| SWT-604 | $ | 2JB 3-position non-latching toggle switch complete with rubber boot & connector |
| SWT-602 | $ | 2JB 2-position non-latching toggle switch complete with rubber boot & connector |
| SWT-601 | $ | 2JB 2-position non-latching toggle switch complete with rubber boot & connector |
| SWT-603 | $ | 2JB 3-position non-latching toggle switch complete with rubber boot & connector |
| MBZ-02 | $ | Receiver-mounted safety beacon |
| MLG-02 | $ | Receiver-mounted safety horn |
| EAK-202 | $ | External antenna |
| TAC-201 | $ | TAC/RFID transmitter add-on board |
| TAC-202 | $ | TAC transmitter access card |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Voltage | Description |
|---|---|---|---|

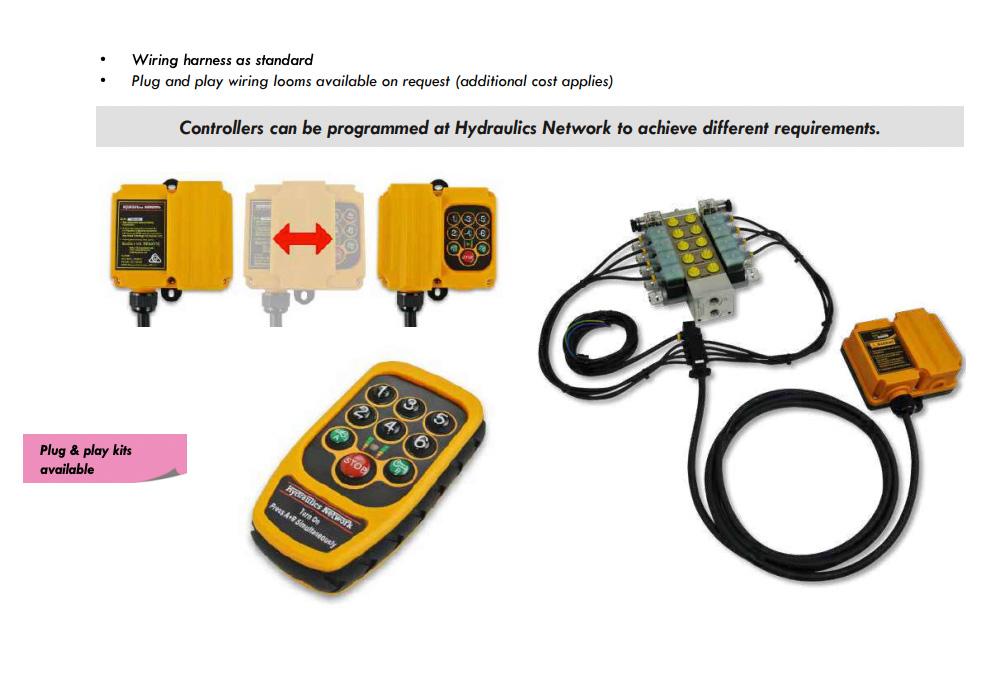

| V6PR-4 | $ | 12v or 24v compatible | Remote control set with override pad on receiver, 4 button transmitter |
| V6PR-6 | $ | 12v or 24v compatible | Remote control set with override pad on receiver, 6 button transmitter |
| V6HS-4 | $ | 12v or 24v compatible | 4 button replacement transmitter |
| V6HS-6 | $ | 12v or 24v compatible | 6 button replacement transmitter |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Voltage | Input Signal | Output Current | Mounting | Controls |
|---|---|---|---|---|---|---|

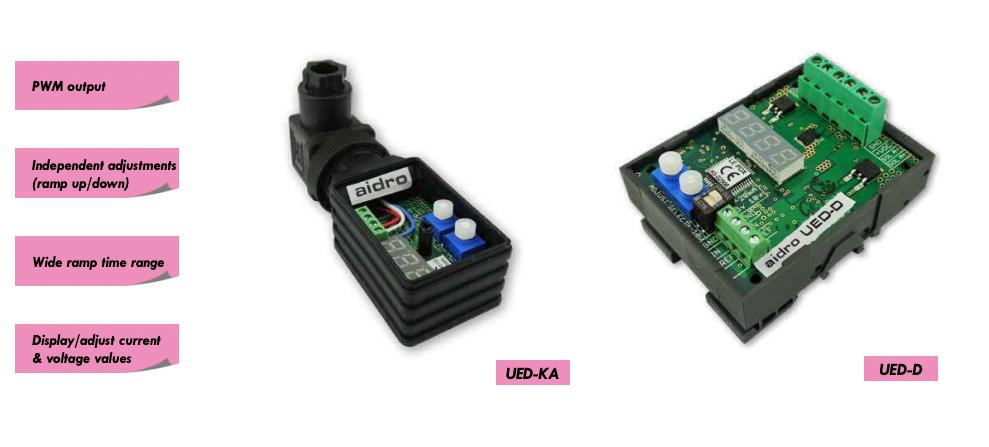

| UED-KA | $ | 9-36v DC | 0-5v, 0-10v, 4-20mA | 0-3 amp | DIN 43650-A | 1 solenoid |
| UED-D | $ | 9-36v DC | 0-5v, 0-10v, 4-20mA | 0-3 amp | DIN rail (open) | 1 or 2 solenoid |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Signal Wires | Connection | Signal Cable Length | Main Cable Length | Power Input Lead | Voltage | Max Amp Signal Wire | Max Amp Common Wire |
|---|---|---|---|---|---|---|---|---|---|

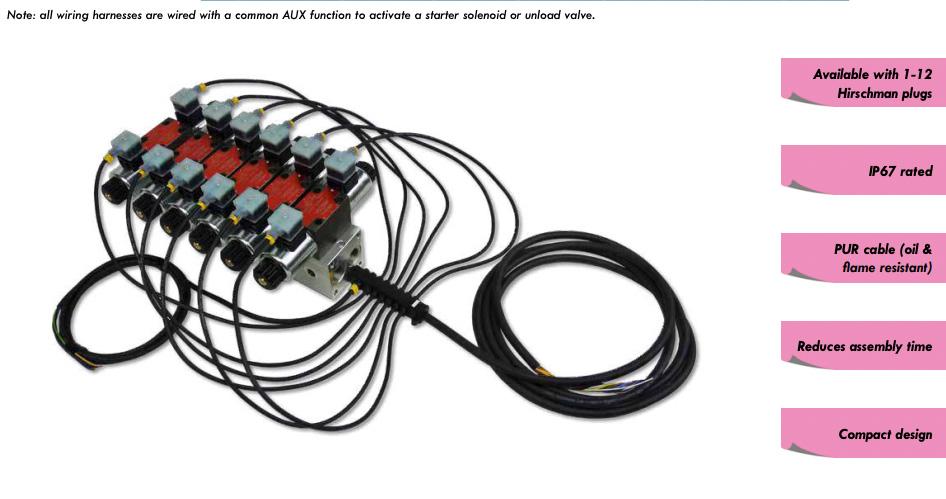

| WLDP-1 | $ | 1 | DIN 43650-A | 500mm | 3000mm | 2000mm | 10-50 Vdc/AC | 3 amp | 6 amp |
| WLDP-2 | $ | 2 | DIN 43650-A | 500mm | 3000mm | 2000mm | 10-50 Vdc/AC | 3 amp | 6 amp |
| WLDP-4 | $ | 4 | DIN 43650-A | 500mm | 3000mm | 2000mm | 10-50 Vdc/AC | 3 amp | 6 amp |
| WLDP-6 | $ | 6 | DIN 43650-A | 500mm | 3000mm | 2000mm | 10-50 Vdc/AC | 3 amp | 6 amp |
| WLDP-8 | $ | 8 | DIN 43650-A | 500mm | 3000mm | 2000mm | 10-50 Vdc/AC | 3 amp | 6 amp |
| WLDP-12 | $ | 12 | DIN 43650-A | 500mm | 3000mm | 2000mm | 10-50 Vdc/AC | 3 amp | 6 amp |
| Part No. | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Description | DIN Size | Terminals | Body | LED |
|---|---|---|---|---|---|---|

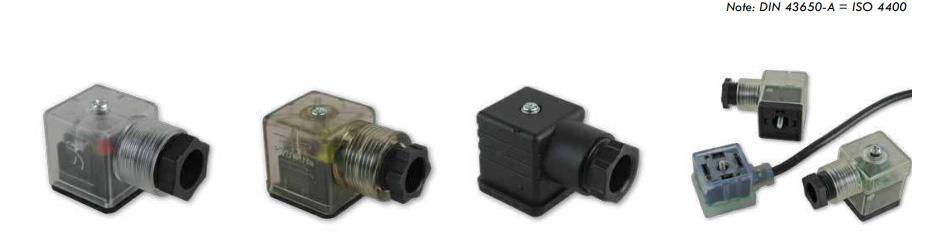

| DP-IP67-AC/DC-250 | $ | 1-250V AC+DC, IP67 | DIN 43650-A | 3 | Clear | Yes |
| DP-IP67-AC/DC-38 | $ | 1-38V AC+DC, IP67 | DIN 43650-A | 3 | Clear | Yes |
| DP-IP67-AC/DC-3M | $ | 1-38V AC+DC, 3m Cable, IP67 | DIN 43650-A | 3 | Clear | Yes |
| DP-LED-AC | $ | AC | DIN 43650-A | 3 | Clear | Yes |
| DP-LED-DC | $ | DC | DIN 43650-A | 3 | Clear | Yes |
| DP-REC-LV | $ | Rectifier AC to DC (1-48v) | DIN 43650-A | 3 | Clear | Yes |
| DP-REC | $ | Rectifier AC to DC (70-250v) | DIN 43650-A | 3 | Clear | Yes |
