Hydraulic Motors

At Catford Engineering we offer a wide range of hydraulic products. Browse our Hydraulic Motors pricings below.

*BMM, BMP & BMPH Gerotor Motors
*BMR, BMRS, BMSY, BMV & BMT Geroler Motors

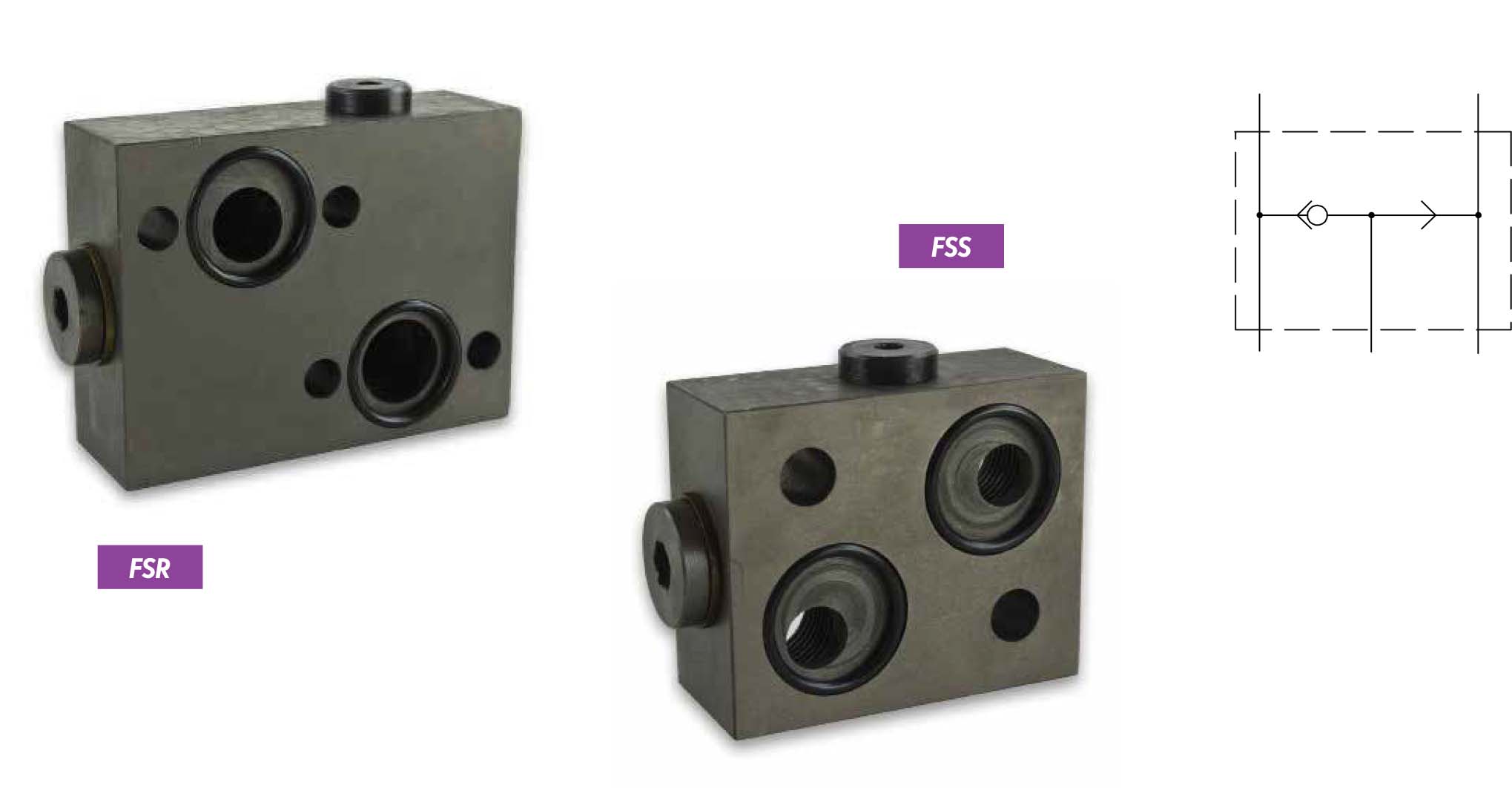

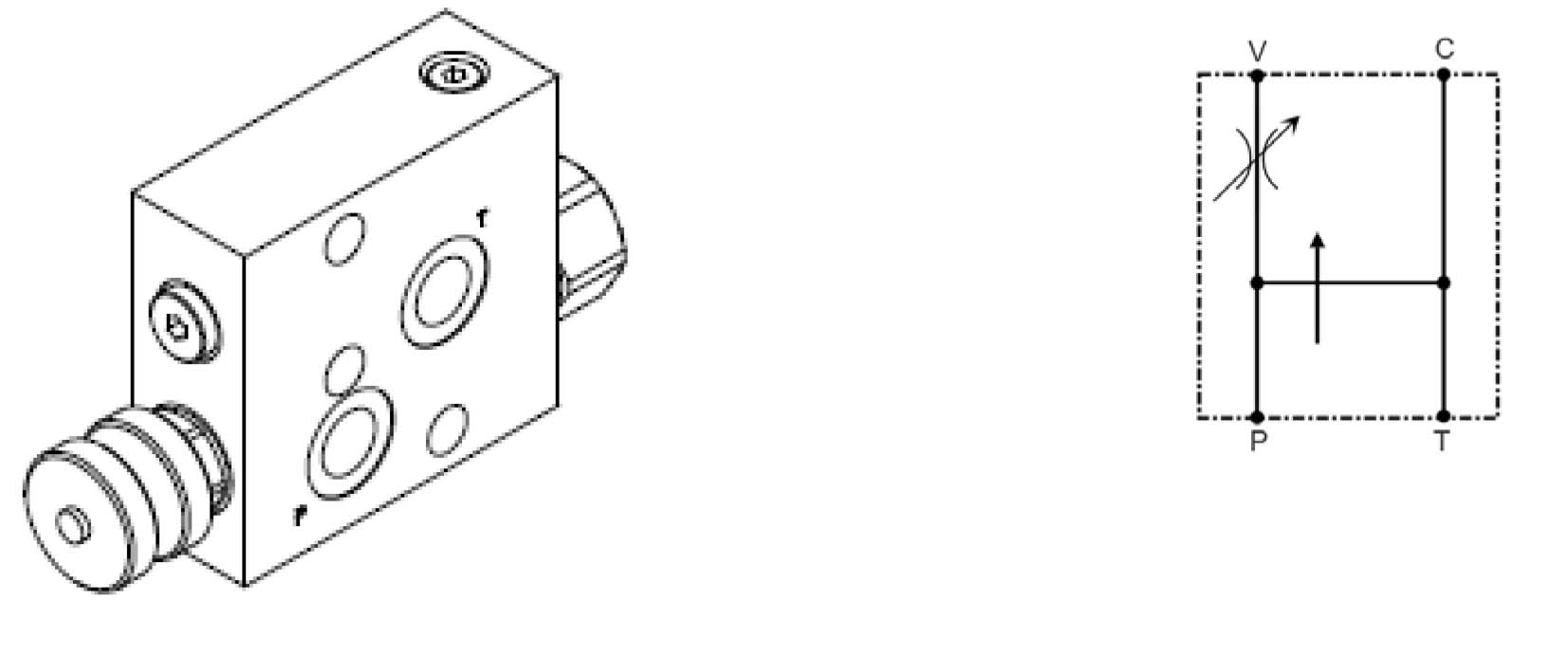

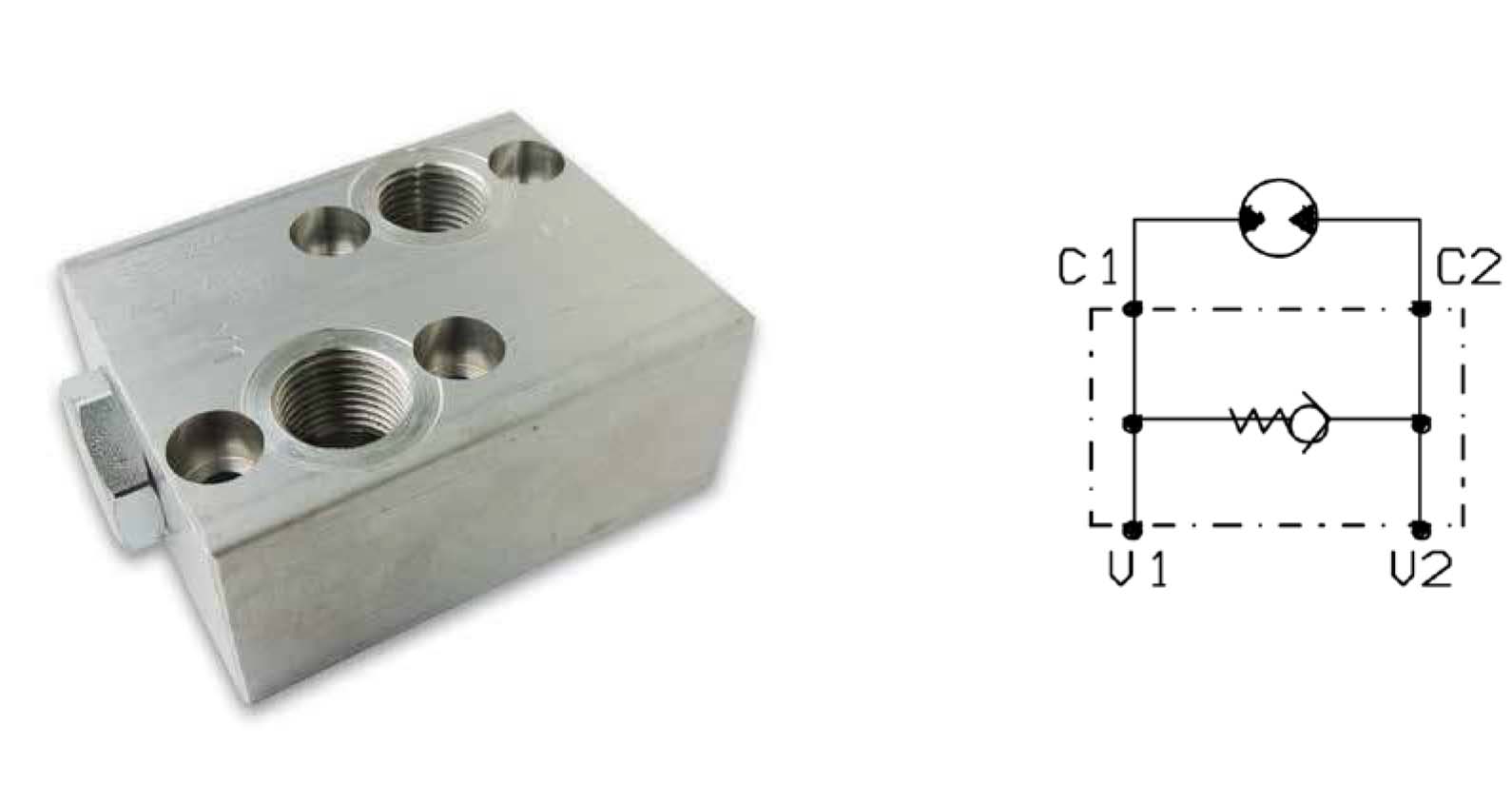

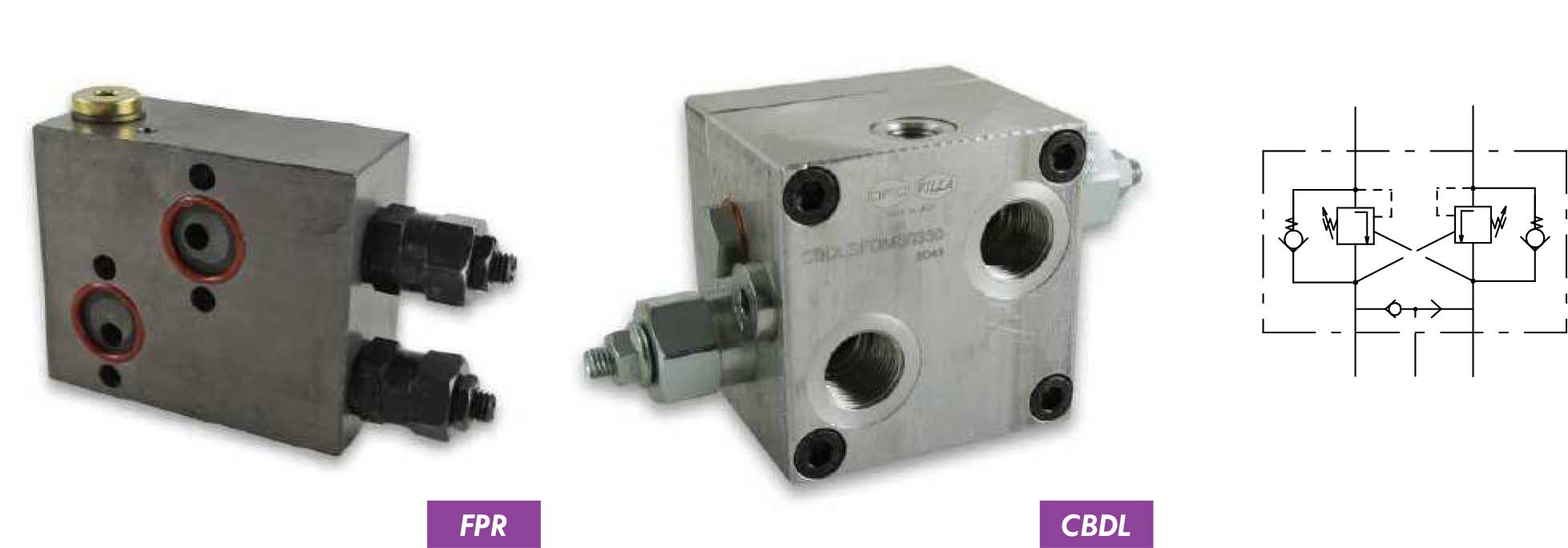

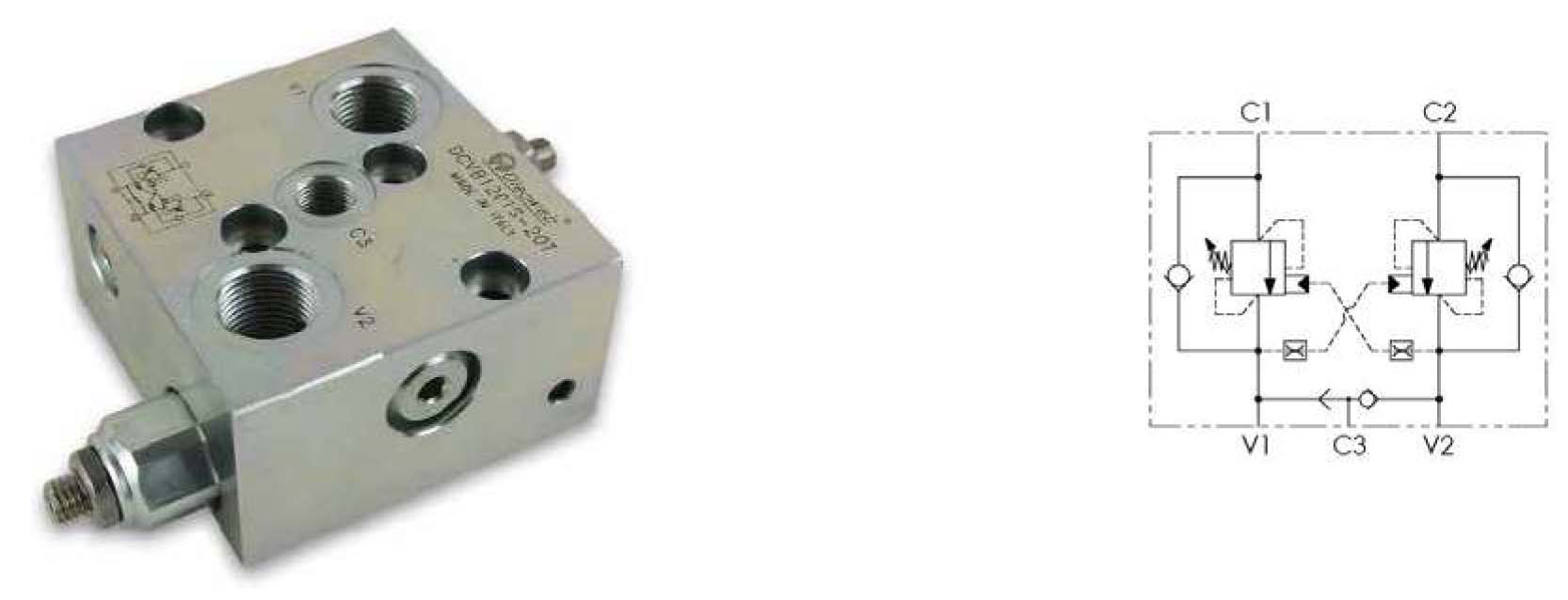

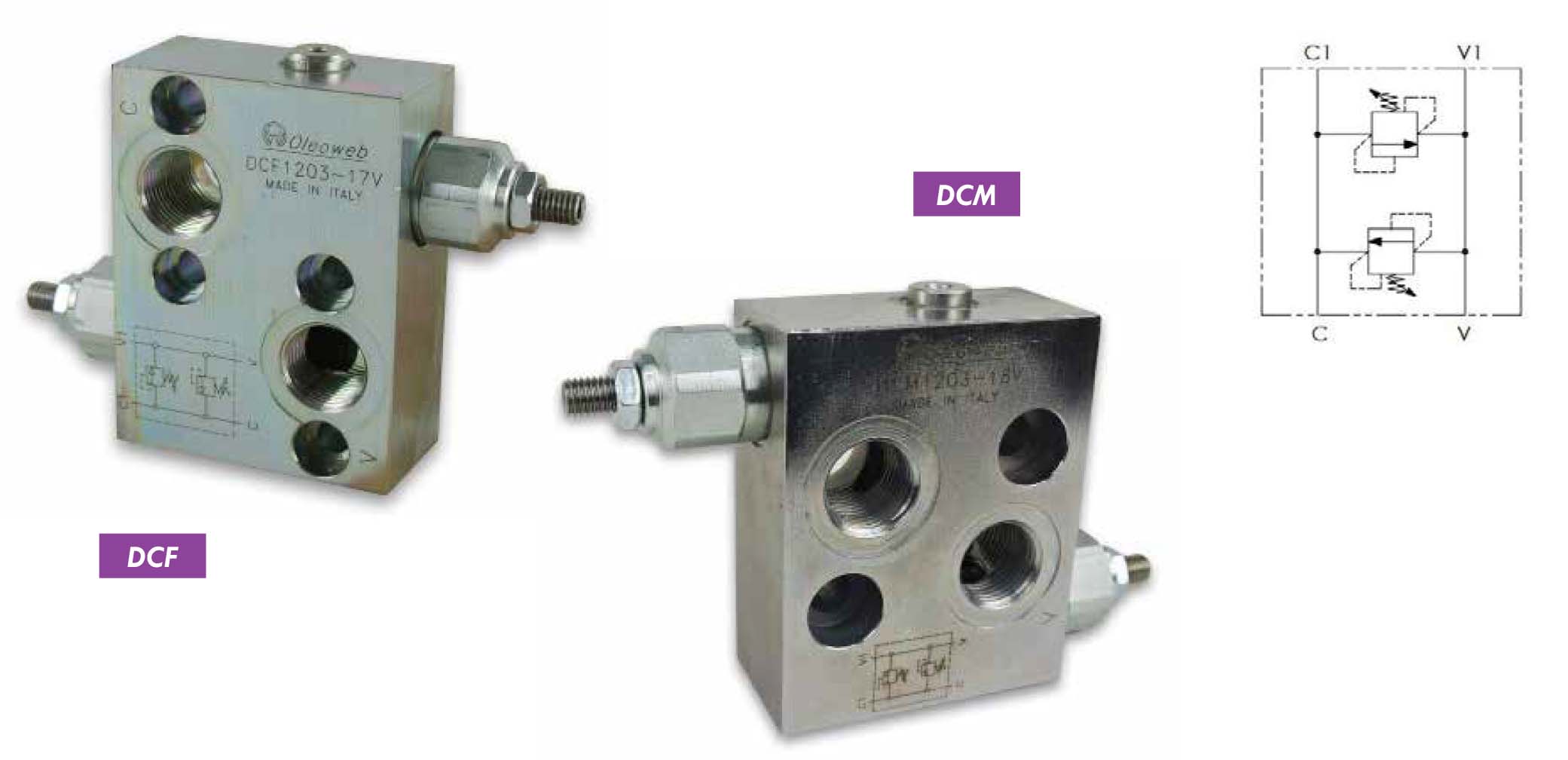

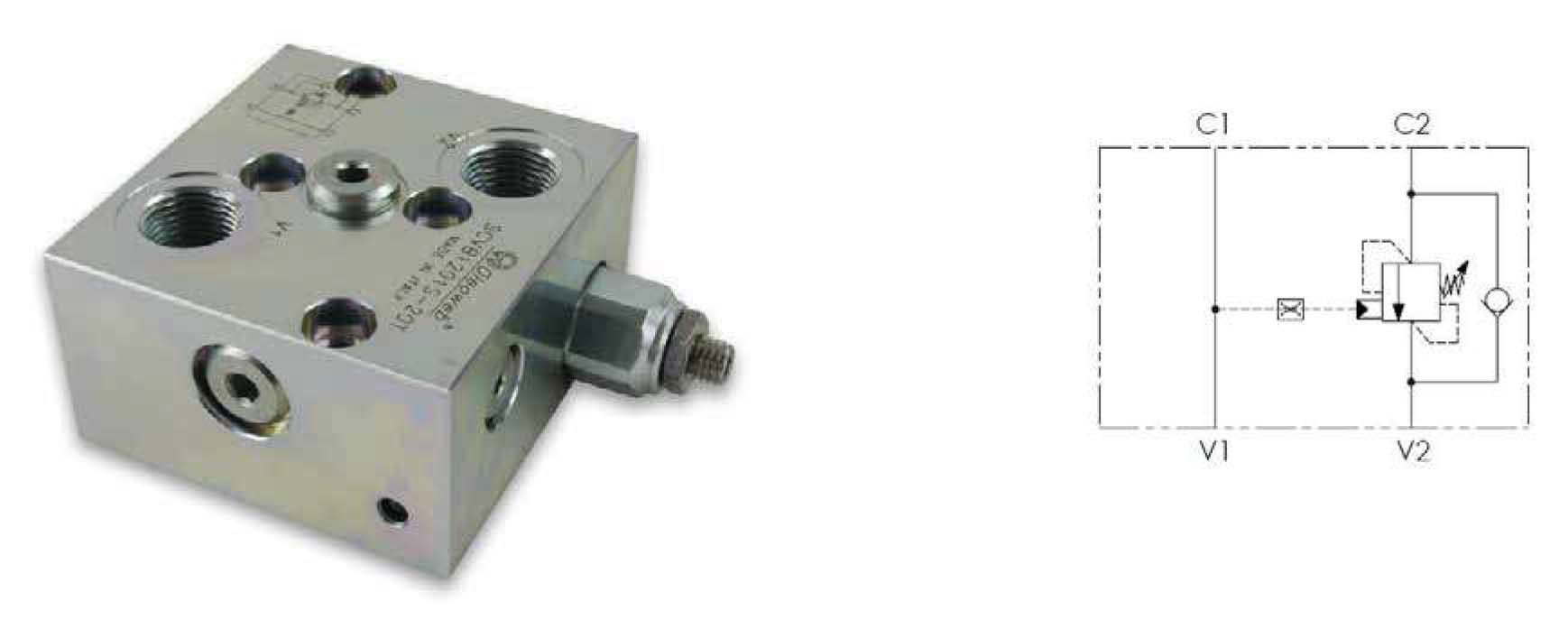

*Hydraulic Brakes & Motor Valves

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491

HYDRAULIC MOTORS

CROSS REFERENCE CHART

	Danfoss	Eaton	M+S	Parker	White
BMP/BPMH	OMP, DH	H	MP	TC	WP, WD
BMR/BMRS	OMR, DS	S	MR	TC	WR, RS
BMH	OMH		MH
BMSY	OMS	2000	MSY	TF, TG	WS, RE, DR
BMT	OMT	4000, 6000	MT
BMK6		6000
BMV	OMV	6000, 10000	MV
BMM	OMM		MM
BME2		J2		TE, TC, TB	WG
BMER			HW	TF, TG	RE, RC
BMEC					CE
BMJ	OMEW	W	RW	TJ
BMPW	OMEW		PW

GEROTOR MOTORS - BMM

BMM SERIES NOMENCLATURE

Series	–	Displacement		–	Flange	Shaft		Port		Colour
BMM	–	8	8.2cc	–	SAE AA 2-bolt	A	16mm keyed	1E	3/8″ BSPP rear	B	Black
		12.5	12.9cc		Face Mount	B	5/8″ keyed	E	3/8″ BSPP side
		20	19.9cc			C	16.5mm 9T spline
		32	31.6cc
		40	39.8cc
		50	50.3

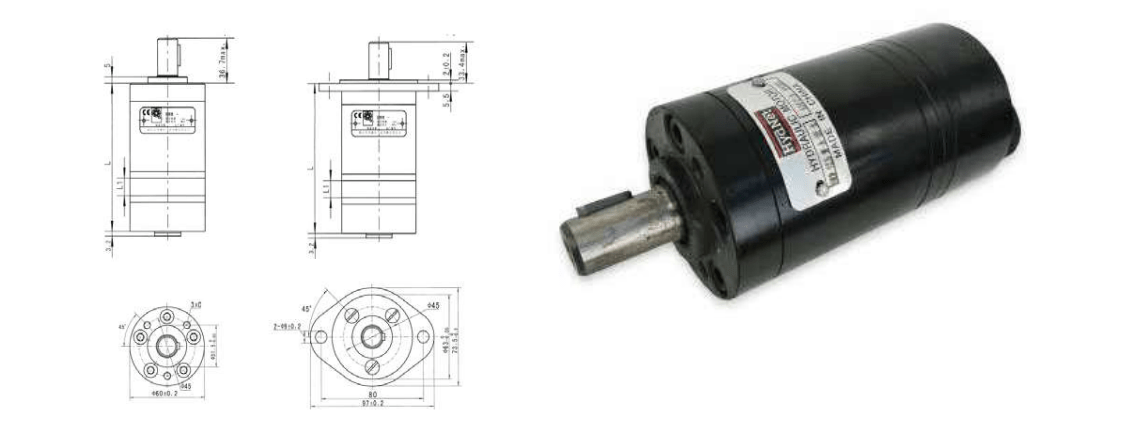

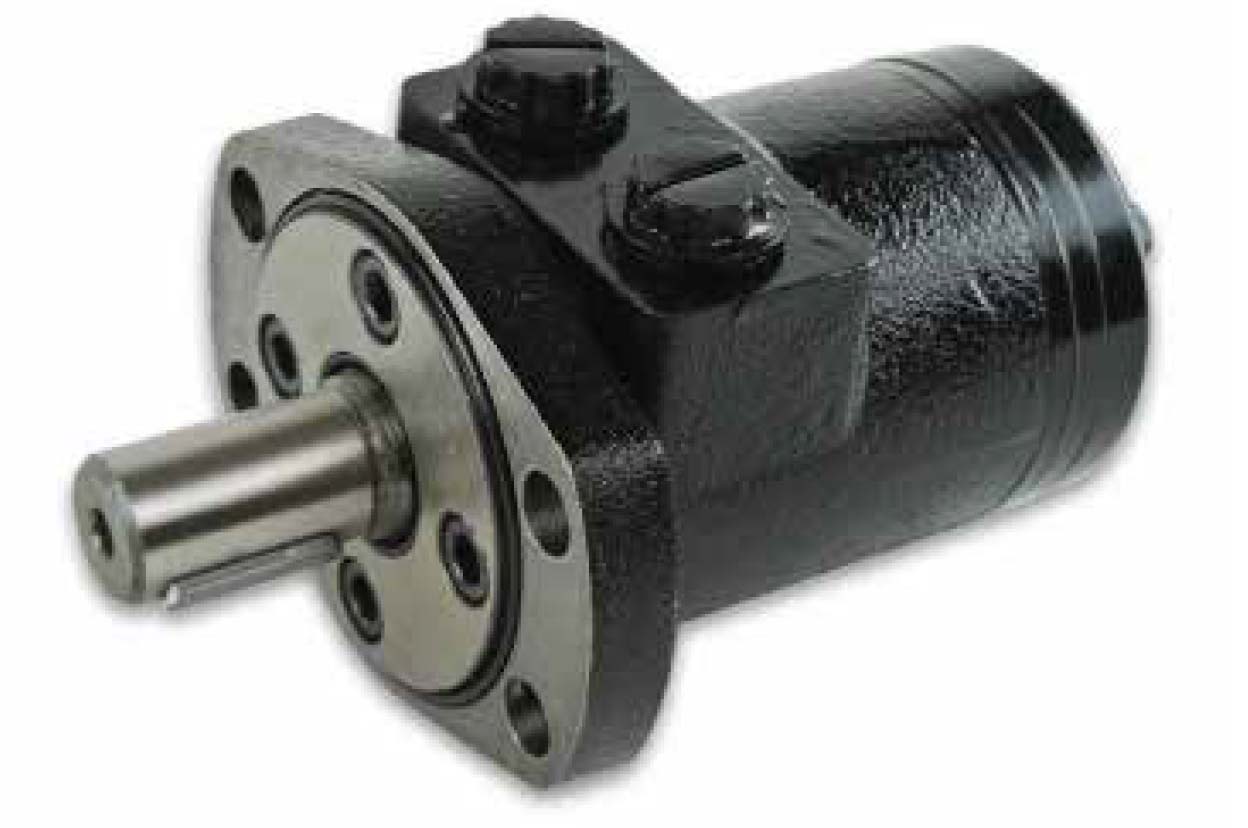

BMM Series Gerotor Motor

SIZE	BMM8	BMM12.5	BMM20	BMM32	BMM40	BMM50
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	$	$	$	$	$	$

SIZE

BMM8

BMM12.5

BMM20

BMM32

BMM40

BMM50

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

TECHNICAL DATA

SIZE		BMM8	BMM12.5	BMM20	BMM32	BMM40	BMM50
Features		1/8″ BSPP standard case drain
Ports		3/8″ BSPP rear 3/8” BSPP side
Displacement	CC	8.2	12.9	19.9	31.6	39.8	50.3
Max Inlet Pressure Cont	Bar	175	175	175	175	175	175
Max Inlet Pressure Int	Bar	225	225	225	225	225	225
Max Speed Cont	Rpm	1950	1550	1000	630	500	400
Max Speed Int	Rpm	2450	1940	1250	800	630	500
Pressure Cont	Bar	100	100	100	100	90	70
Pressure Int		140	140	140	140	140	140
Pressure Peak		200	200	200	160	160	160
Max Torque Cont	Nm	11	16	25	40	45	46
Max Torque Int		15	23	35	57	70	88
Max Torque Peak		21	33	51	64	82	100
Max Output Cont	kW	1.8	2.4	2.4	2.4	2.2	1.8
Max Output Int	kW	2.6	3.2	3.2	3.2	3.2	3.2
Max Flow Cont	Ipm	16	20	20	20	20	20
Max Flow Int	Ipm	20	25	25	25	25	25
Weight	kg	1.9	2	2.1	2.2	2.3	2.4
M Flange L	mm	104	106	109	114	117.5	122
M Flange L1		3.5	5.5	8.5	13.5	17	21.5
F Flange L		107.5	109.5	112.5	117.5	121	125.5
F Flange L1		3.5	5.5	8.5	13.5	17	21.5

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMM-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMM-SK

GEROTOR MOTORS - BMP

BMP SERIES NOMENCLATURE

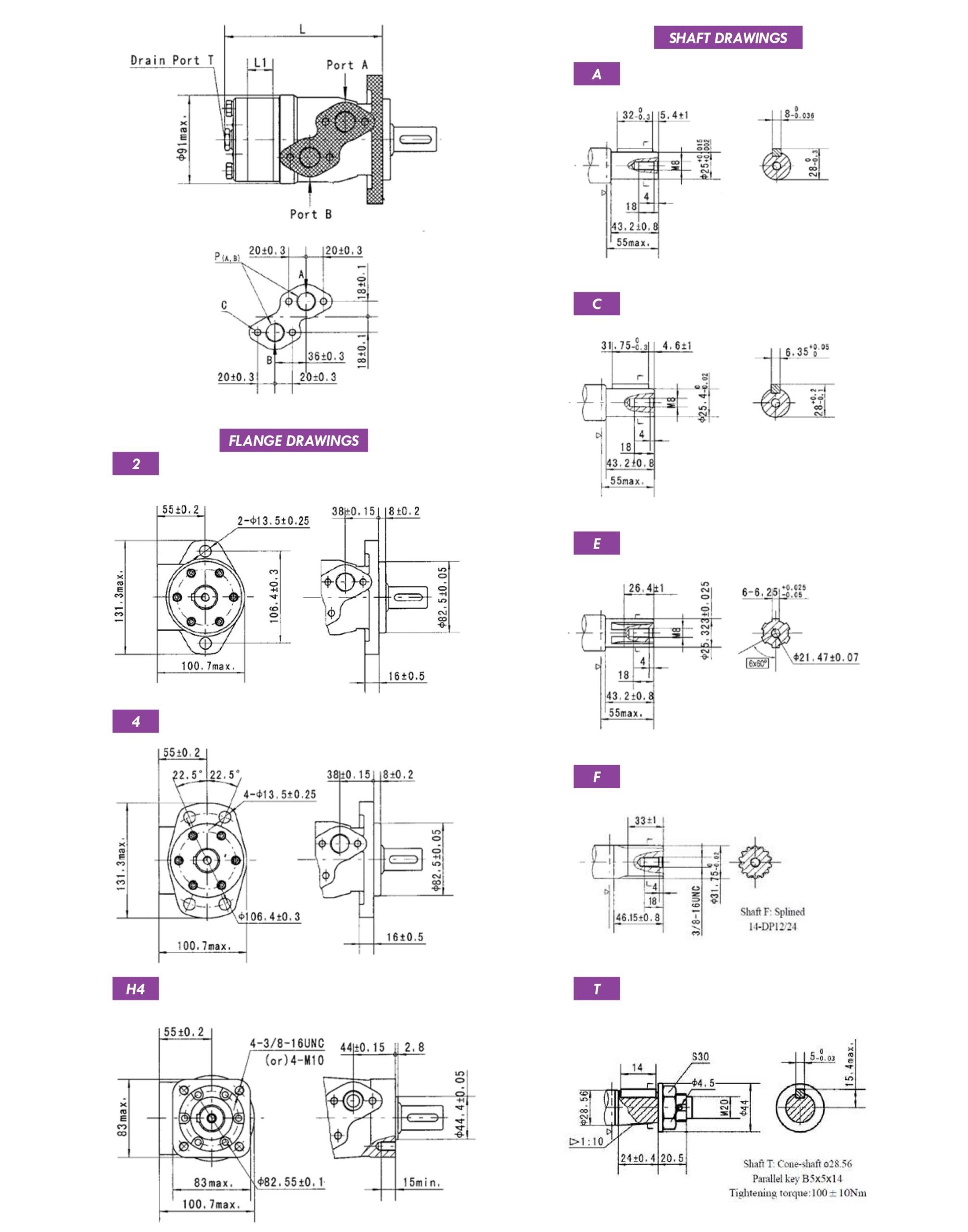

Series	–	Displacement		–	Flange		Shaft		Port		Colour		Bearing		Shaft Seal
BMP	–	36	36cc	–	2	SAE A 2-bolt	A	25mm keyed	S	1/2″ BSPP	B	Black	N	Needle	HP	High pressure 200 bar
		50	51.7cc		4	4-bolt magneto	C	1″ keyed
		80	77.7cc		H4	4-boll square	E	1″ 6T spline
		100	96.2cc				F	14T spline
		125	120.2cc				T	28.56mm taper
		160	157.2cc
		200	194.5cc
		250	240.3cc
		315	314.5cc
		400	389.5cc

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMP-SK	$

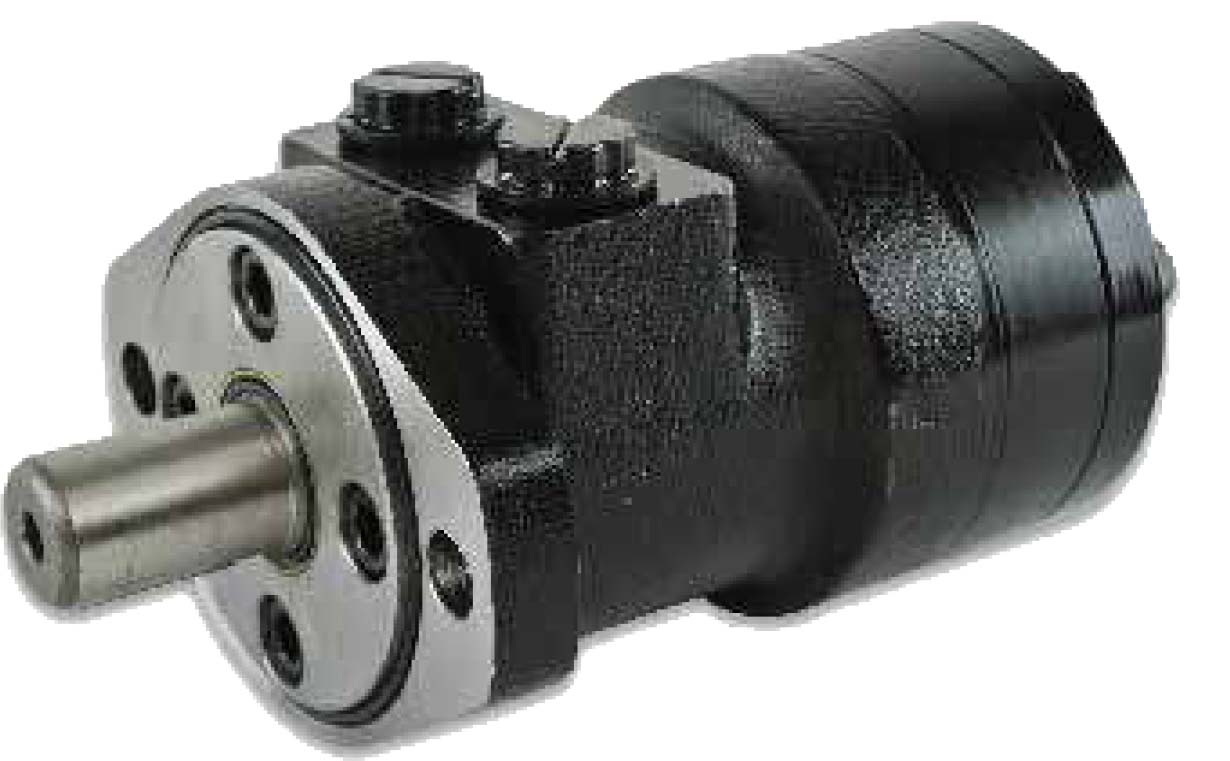

BMP Series Gerotor Motor

SIZE		BMP36	BMP50	BMP80	BMP100	BMP125	BMP160	BMP200	BMP250	BMP315	BMP400
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.		$	$	$	$	$	$	$	$	$	$

TECHNICAL DATA

SIZE		BMP36	BMP50	BMP80	BMP100	BMP125	BMP160	BMP200	BMP250	BMP315	BMP400
Features		Needle bearings + 200 bar shaft seals
Ports		1/2″ BSPP (A+B) 1/4” BSPP drain (T)
Displacement	CC	36	51.7	77.7	96.2	96.2	157.2	194.5	240.3	314.5	389.5
Max Speed Cont	Rpm	1500	1150	770	615	490	383	310	250	192	155
Max Speed Int	Rpm	1650	1450	960	770	615	475	385	310	240	190
Pressure Cont	Bar	125	140	140	140	140	140	140	110	90	70
Pressure Int		165	175	175	175	175	175	175	140	140	105
Pressure Peak		225	225	225	225	225	225	225	180	160	140
Max Torque Cont	Nm	55	100	146	182	236	302	360	380	375	360
Max Torque Int		76	128	186	227	290	370	440	460	555	525
Max Torque Peak		96	148	218	264	360	434	540	550	650	680
Max Output Cont	kW	8	10	10	11	10	10	10	8.5	7	6
Max Output Int	kW	11.5	12	12	13	12	12	12	10.5	8.5	7
Max Flow Cont	Ipm	55	60	60	60	60	60	60	60	60	60
Max Flow Int	Ipm	60	75	75	75	75	75	75	75	75	75
Weight	kg	5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4
Dimension L	mm	137	137	140.5	143	146	151	157	162	172	182
Dimension L1		7	7	10.5	13	16	21	26	32	42	52
Thread C		M8	M8	M8	M8	M8	M8	M8	M8	M8	M8

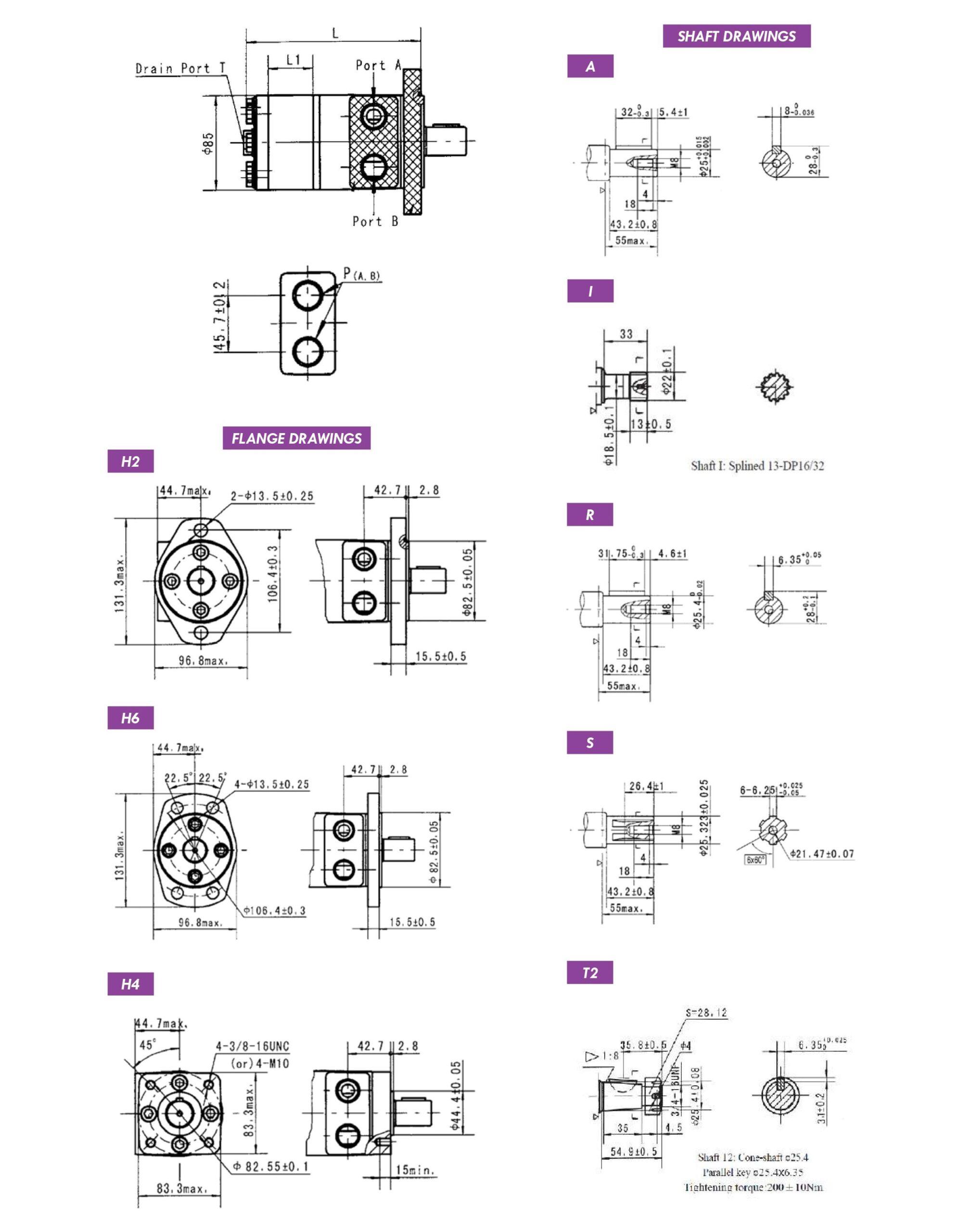

GEROTOR MOTORS - BMPH

BMPH SERIES NOMENCLATURE

Series	–	Displacement		–	Flange		Shaft		Port		Colour		Bearing		Shaft Seal
BMPH	–	36	36cc	–	H2	SAE A 2-bolt	A	25mm keyed	S	7/8″ UNO	B	Black	N	Needle	HP	High pressure 200 bar
		50	51.7cc		H6	4-bolt magneto	I	13T spline
		80	77.7cc		H4	4-bolt square	R	1″ keyed
		100	96.2cc				S	1″ 6T spline
		125	120.2cc				T2	25.4mm taper
		160	157.2cc
		200	I94.5cc
		250	240.3cc
		315	314.5cc
		400	389.5cc

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMPH-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMPH-SK

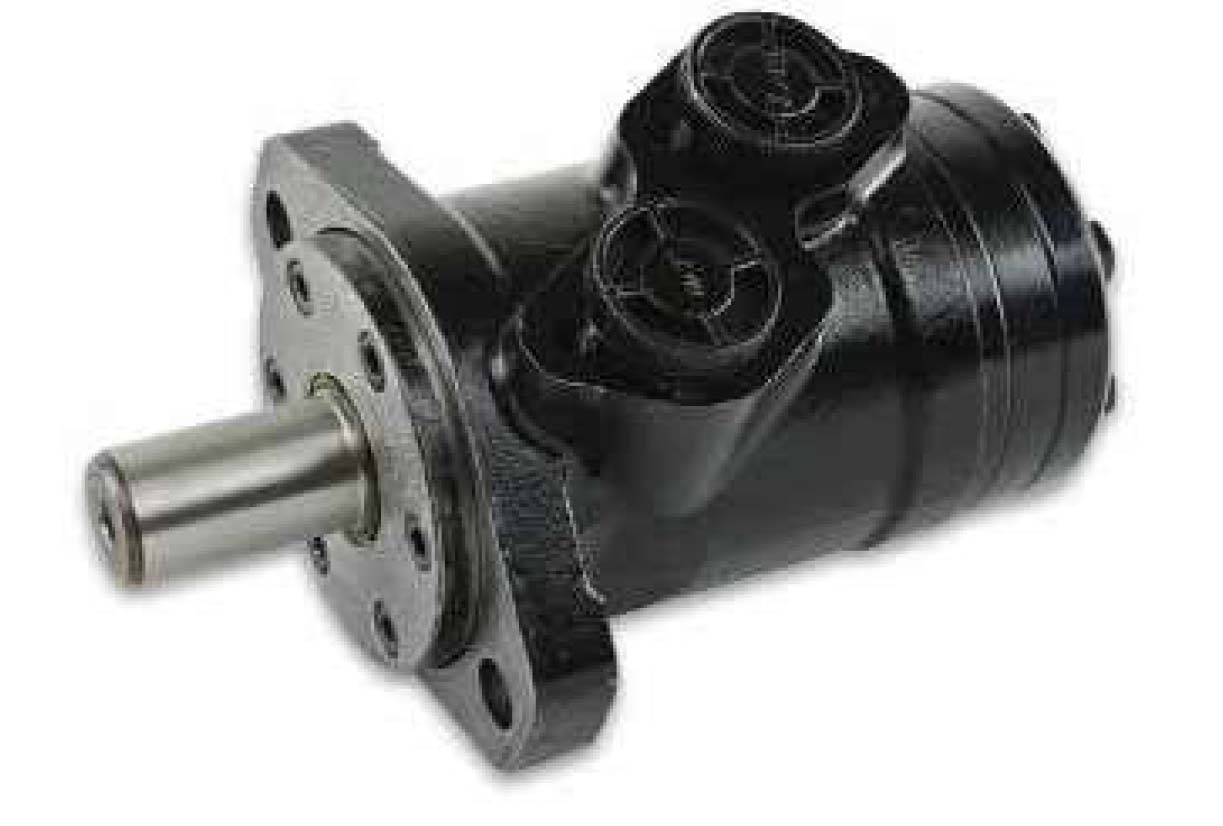

BMPH Series Gerotor Motor

SIZE	BMPH36	BMPH50	BMPH80	BMPH100	BMPH125	BMPH160	BMPH200	BMPH250	BMPH315	BMPH400
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	$	$	$	$	$	$	$	$	$	$

SIZE

BMPH36

BMPH50

BMPH80

BMPH100

BMPH125

BMPH160

BMPH200

BMPH250

BMPH315

BMPH400

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

TECHNICAL DATA

SIZE		BMPH36	BMPH50	BMPH80	BMPH100	BMPH125	BMPH160	BMPH200	BMPH250	BMPH315	BMPH400
Features		Needle bearings + 200 bar shaft seals
Ports		7/8″ UNO (A+B) 7/16” UNO drain (T)
Displacement	CC	36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5
Max Speed Cont	Rpm	1500	1150	770	615	490	383	310	250	192	155
Max Speed Int	Rpm	1650	1450	960	770	615	475	385	310	240	190
Pressure Cont	Bar	125	140	140	140	140	140	140	110	90	70
Pressure Int		165	175	175	175	175	175	175	140	140	105
Pressure Peak		225	225	225	225	225	225	225	180	160	140
Max Torque Cont	Nm	55	100	146	182	236	302	360	380	375	360
Max Torque Int		76	128	186	227	290	370	440	460	555	525
Max Torque Peak		96	148	218	264	360	434	540	550	650	680
Max Output Cont	kW	8	10	10	11	10	10	10	8.5	7	6
Max Output Int	kW	11.5	12	12	13	12	12	12	10.5	8.5	7
Max Flow Cont	lpm	55	60	60	60	60	60	60	60	60	60
Max Flow Int	lpm	60	75	75	75	75	75	75	75	75	75
Weight	kg	5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4
Dimension L	mm	141	141	144.5	147	150	155	160	166	176	186
Dimension L1	mm	7	7	10.5	13	16	21	26	32	42	52
						web I www.catford.com.au email I sales@catford.com.au tel I					0418 641 566

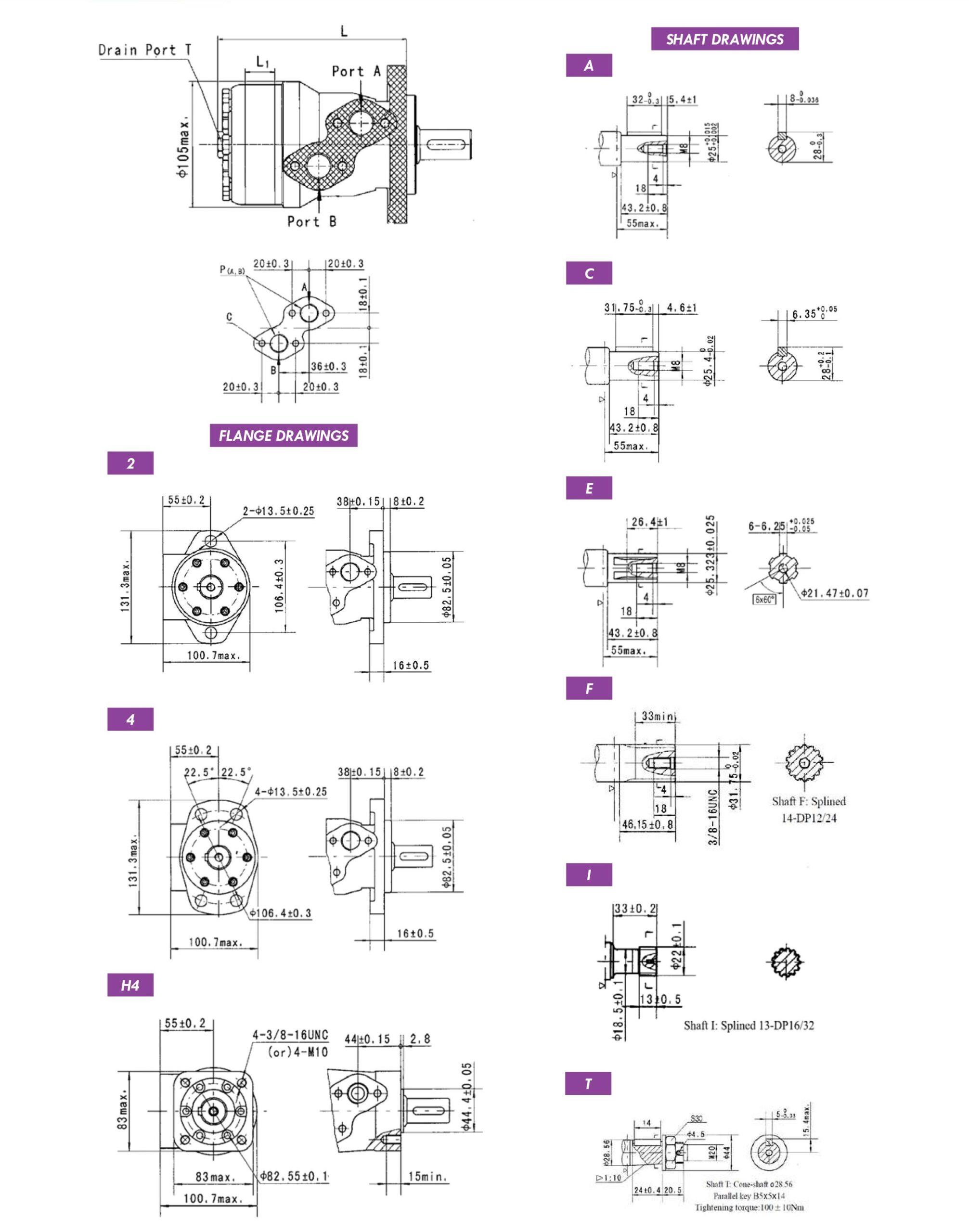

GEROLER MOTORS - BMR

BMR SERIES NOMENCLATURE

Series	–	Displacement		–	Flange		Shaft		Port		Colour		Bearing		Shaft Seal
BMR	–	36	36cc	–	2	SAE A 2-bolt	A	25mm keyed	S	1/2″ BSPP	B	Black	N	Needle	HP	High pressure 200 bar
		50	51.7cc		4	4-bolt magneto	C	1″ keyed
		80	81.5cc		H2	4-bolt square	E	1″ 6T spline
		100	102cc				F	14T spline
		125	127.2cc				T	28.56mm taper
		160	157.2cc
		200	194.5cc
		250	253.3cc
		315	317.5cc
		400	381.4cc

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMR-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMR-SK

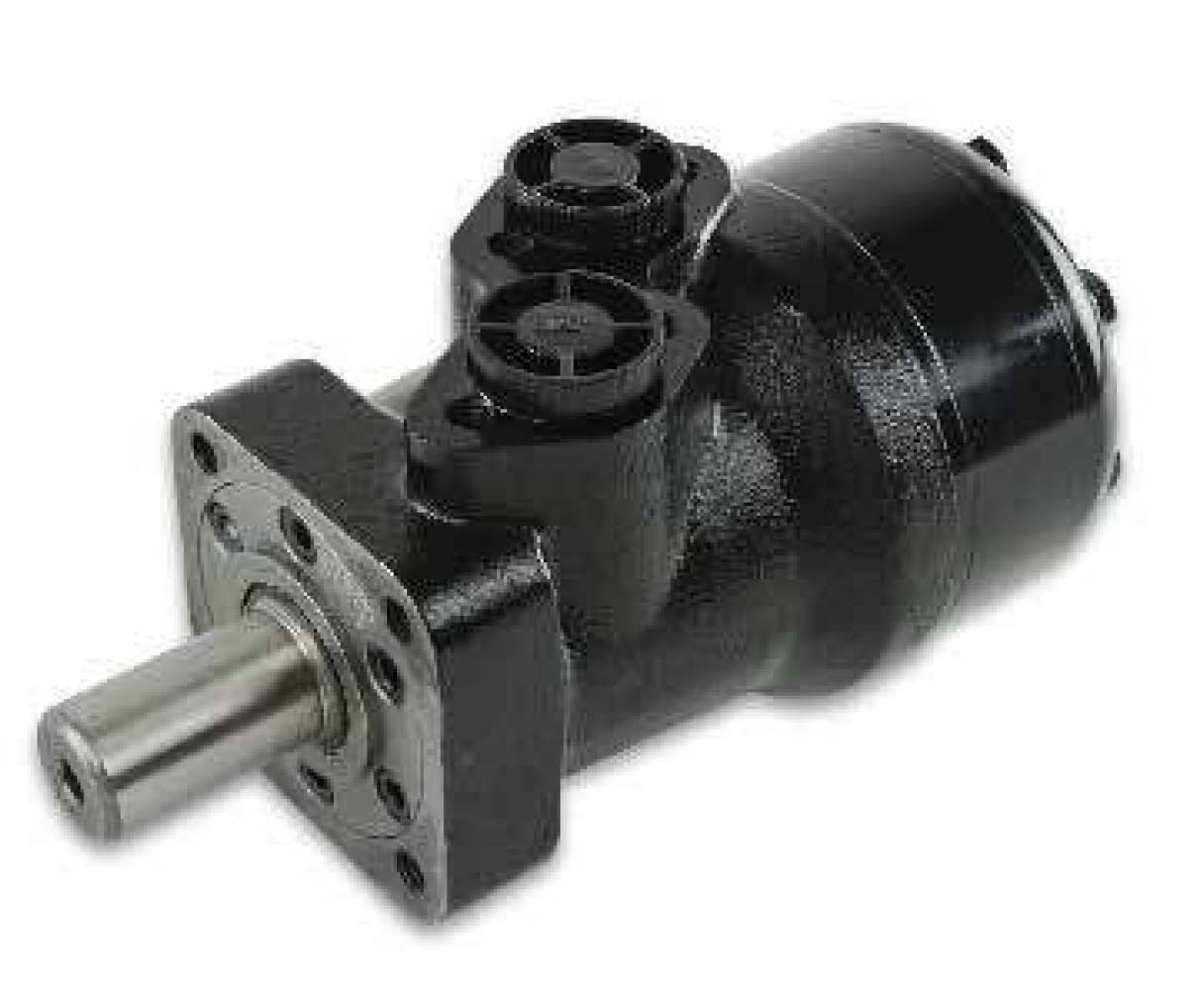

BMR Series Geroler Motor

SIZE	BMR36	BMR50	BMR80	BMR100	BMR125	BMR160	BMR200	BMR250	BMR315	BMR400
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	$	$	$	$	$	$	$	$	$	$

SIZE

BMR36

BMR50

BMR80

BMR100

BMR125

BMR160

BMR200

BMR250

BMR315

BMR400

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

TECHNICAL DATA

SIZE		BMR36	BMR50	BMR80	BMR100	BMR125	BMR160	BMR200	BMR250	BMR315	BMR400
Features		Needle bearings + 200 bar shaft seals
Ports		1/2″ BSPP (A+B) 1/4” BSPP drain (T)
Displacement	CC	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max Speed Cont	Rpm	1085	960	750	600	475	378	310	240	190	155
Max Speed Int	Rpm	1220	1150	940	750	600	475	385	300	240	190
Pressure Cont	Bar	140	140	175	175	175	165	130	110	90	70
Pressure Int		165	175	200	200	200	200	175	150	130	100
Pressure Peak		225	225	225	225	225	225	225	200	175	150
Max Torque Cont	Nm	72	100	195	240	300	360	360	390	390	365
Max Torque Int		83	126	220	280	340	430	440	490	535	495
Max Torque Peak		105	165	270	320	370	460	560	640	650	680
Max Output Cont	kW	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max Output Int	kW	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max Flow Cont	Ipm	40	50	60	60	60	60	60	60	60	60
Max Flow Int	Ipm	45	60	75	75	75	75	75	75	75	75
Weight	kg	6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5
Dimension L	mm	137	140	146	150	155	161.5	170	180	192	204
Dimension LI		7	10	16	20	25	30.5	38.1	50	62	74
Thread C		M8	M8	M8	M8	M8	M8	M8	M8	M8	M8

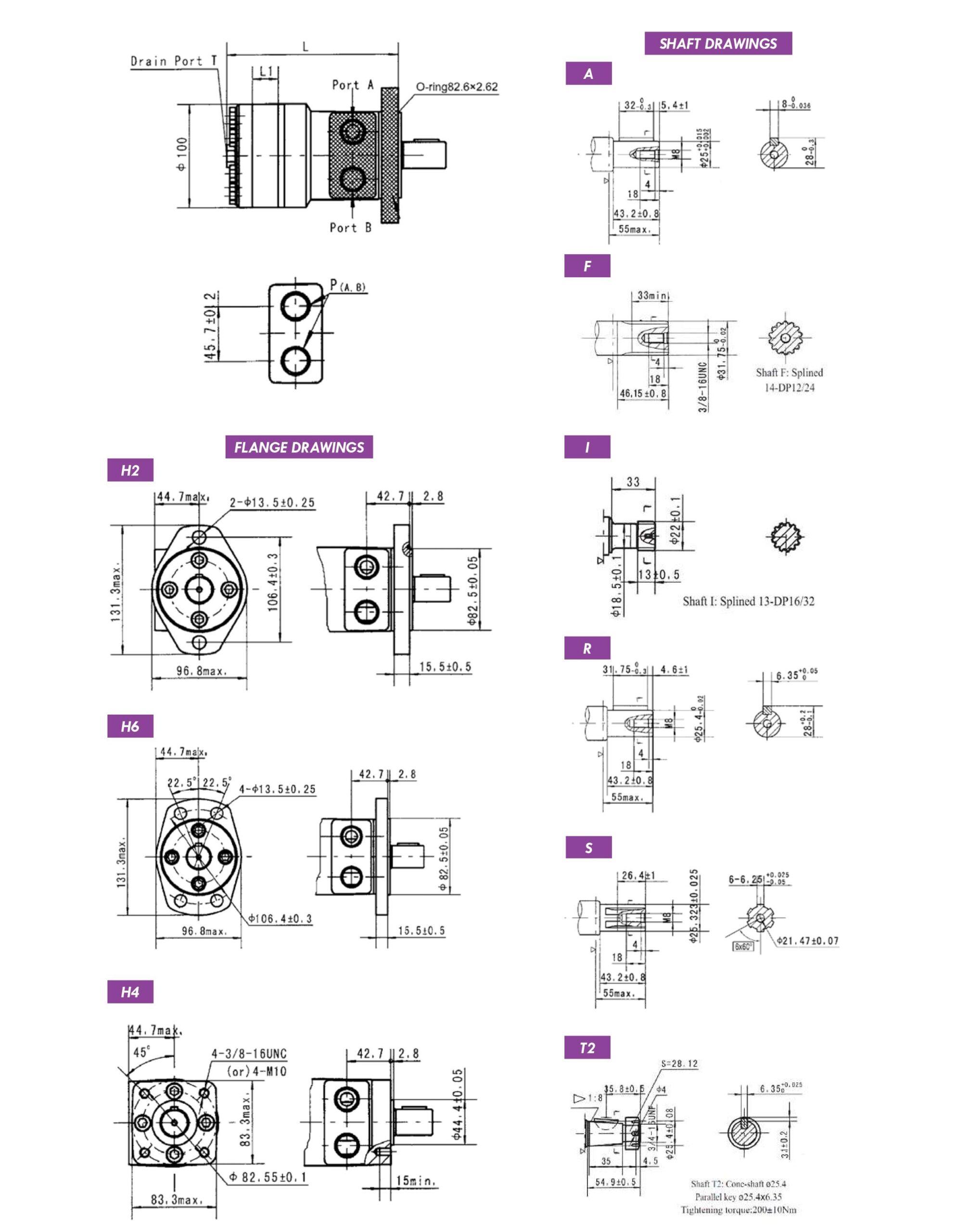

GEROLER MOTORS - BMRS

BMRS SERIES NOMENCLATURE

Series	–	Displacement		–	Flange		Shaft		Port		Colour		Bearing		Shaft Seal
BMRS	–	36	36cc	–	H2	SAE A 2-bolt	A	25mm keyed	S	7/8” UNO	B	Black	N	Needle	HP	High pressure 200 bar
		50	51.7cc		H6	4-bolt magneto	I	1 3T” keyed
		80	81.5cc		H4	4-boll square	R	1″ keyed
		100	102cc				Shaft	1″6T spline
		125	127.2cc				T2	25.4mm taper
		160	157.2cc
		200	194.5cc
		250	253.3cc
		315	317.5cc
		400	381.4cc

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMRS-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMRS-SK

BMRS Series Geroler Motor

SIZE	BMRS36	BMRS50	BMRS80	BMRS100	BMRS125	BMRS160	BMRS200	BMRS250	BMRS315	BMRS400
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	$	$	$	$	$	$	$	$	$	$

SIZE

BMRS36

BMRS50

BMRS80

BMRS100

BMRS125

BMRS160

BMRS200

BMRS250

BMRS315

BMRS400

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

TECHNICAL DATA

SIZE		BMRS36	BMRS50	BMRS80	BMRS100	BMRS125	BMRS160	BMRS200	BMRS250	BMRS315	BMRS400
Features		Needle bearings + 200 bar shaft seals
Ports		7/8” UNO (A+B) 7/16” UNO drain (T)
Displacement	CC	36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max Speed Cont	Rpm	1085	960	750	600	475	378	310	240	190	155
Max Speed Int	Rpm	1220	1150	940	750	600	475	385	300	240	190
Pressure Cont	Bar	140	140	175	175	175	165	130	110	90	70
Pressure Int		165	175	200	200	200	200	175	150	130	100
Pressure Peak		225	225	225	225	225	225	225	200	175	150
Max Torque Cont	Nm	72	100	195	240	300	360	360	390	390	365
Max Torque Int		83	126	220	280	340	430	440	490	535	495
Max Torque Peak		105	165	270	320	370	460	560	640	650	680
Max Output Cont	kW	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max Output Int	kW	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max Flow Cont	Ipm	40	50	60	60	60	60	60	60	60	60
Max Flow Int	Ipm	45	60	75	75	75	75	75	75	75	75
Weight	kg	6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5
Dimension L	mm	137	140	146	150	155	161.5	170	180	192	204
Dimension L1	mm	7	10	16	20	25	30.5	38.1	50	62	74

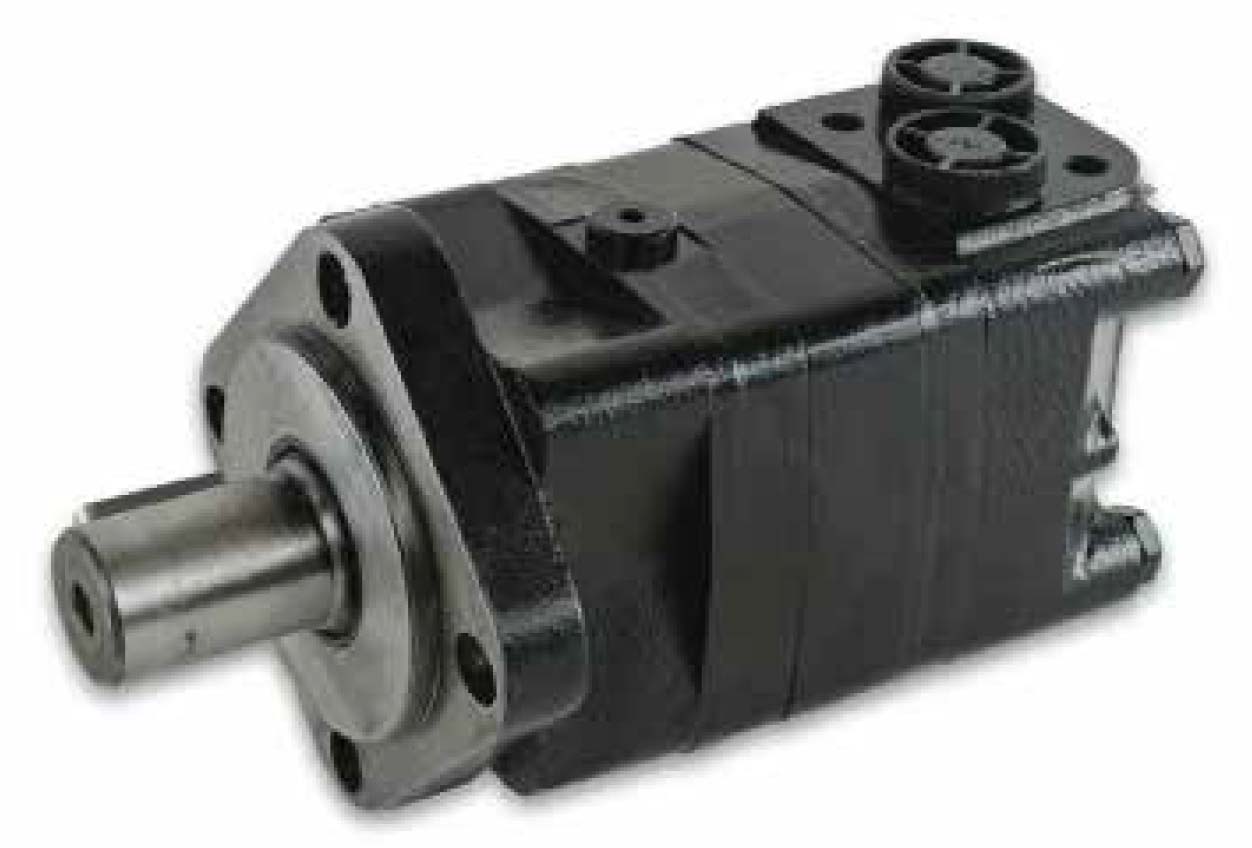

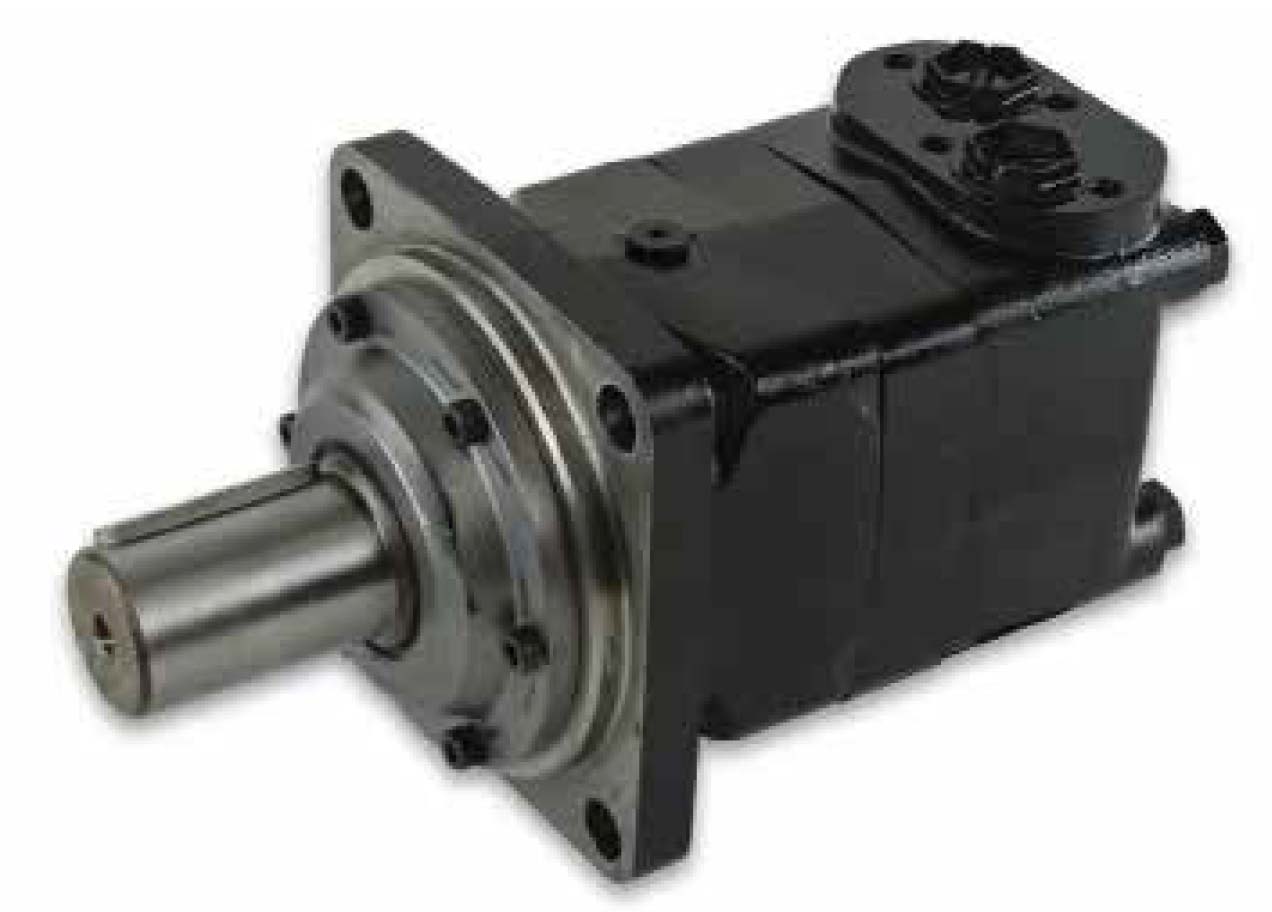

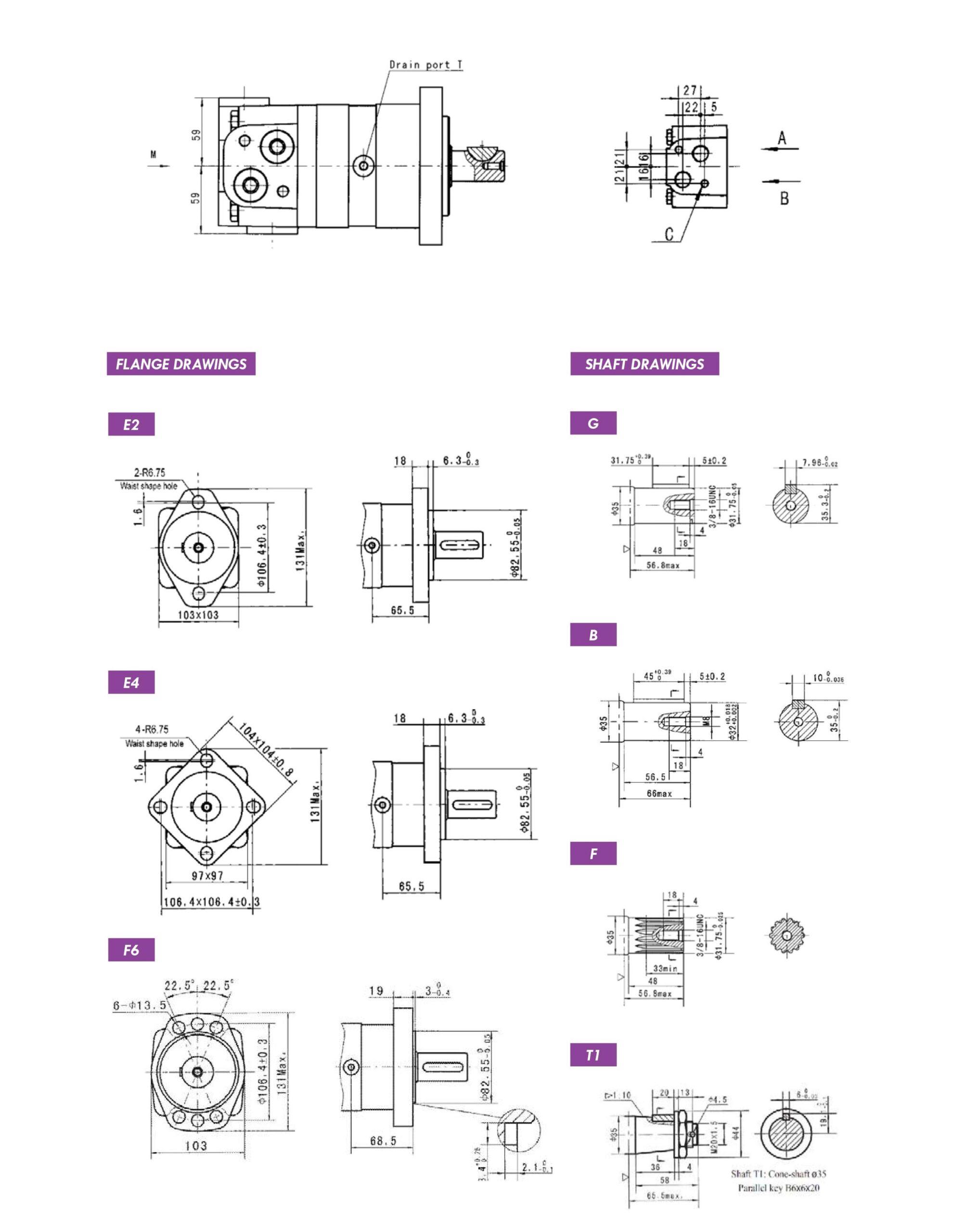

GEROLER MOTORS - BMSY

BMSY SERIES NOMENCLATURE

Series	–	Displacement		–	Flange		Shaft		Port		Colour		Bearing		Shaft Seal
BMSY	–	80	80.6cc	–	E2	SAE A 2-bolt	B	32mm keyed	S	1/2” BSPP	B	Black	N	Taper Roller H	HP	High pressure 200 bar
		100	100.8cc		E4	4-bolt square	F	14T spline
		125	125cc		F6	6-bolt magneto	G	1.1/4” keyed
		160	154cc				T1	35mm taper
		200	194cc
		250	243cc
		315	311cc
		400	394cc
		475	475cc

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMSY-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMSY-SK

BMSY Series Geroler Motor

SIZE	BMSY80	BMSY100	BMSY125	BMSY160	BMSY200	BMSY250	BMSY315	BMSY400	BMSY475
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	$	$	$	$	$	$	$	$	$

SIZE

BMSY80

BMSY100

BMSY125

BMSY160

BMSY200

BMSY250

BMSY315

BMSY400

BMSY475

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

TECHNICAL DATA

SIZE		BMSY80	BMSY100	BMSY125	BMSY160	BMSY200	BMSY250	BMSY315	BMSY400	BMSY475
Features		Tapered roller bearings + 200 bar shaft seals
Ports		1/2” BSPP (A+B) 1/4” BSPP drain (T)
Displacement	CC	80.6	100.8	125	154	194	243	311	394	475
Max Inlet Press Cont	Bar	250	250	250	250	250	250	250	250	250
Max Inlet Press int	Bar	300	300	300	300	300	300	300	300	300
Max Speed Cont	Rpm	800	748	600	470	375	300	240	185	155
Max Speed Int	Rpm	988	900	720	560	450	360	280	225	185
Pressure Cont	Bar	205	205	205	210	210	200	200	160	140
Pressure Int		225	225	225	225	225	225	225	175	150
Pressure Peak		295	295	295	225	225	225	225	200	175
Max Torque Cont	Nm	225	290	365	485	586	708	880	880	910
Max Torque Int	Nm	250	320	400	540	645	806	960	960	960
Max Output Cont	kW	16	18	18	18.1	18.1	18	17	11	9
Max Output Int	kW	20	22	23	25	24	23.8	20.2	12	11
Max Flow Cont	Ipm	65	75	75	75	75	75	75	75	75
Max Flow int	Ipm	80	90	90	90	90	90	90	90	90
Weight	kg	9.8	10	10.3	10.7	11.1	11.6	12.3	13.2	14.3
Dimension L	mm	170	174	179	181	188	196	208	223	237
Dimension L1		16	20	25	27	34	42	54	69	83
Thread C		M10	M10	M10	M10	M10	M10	M10	M10	M10

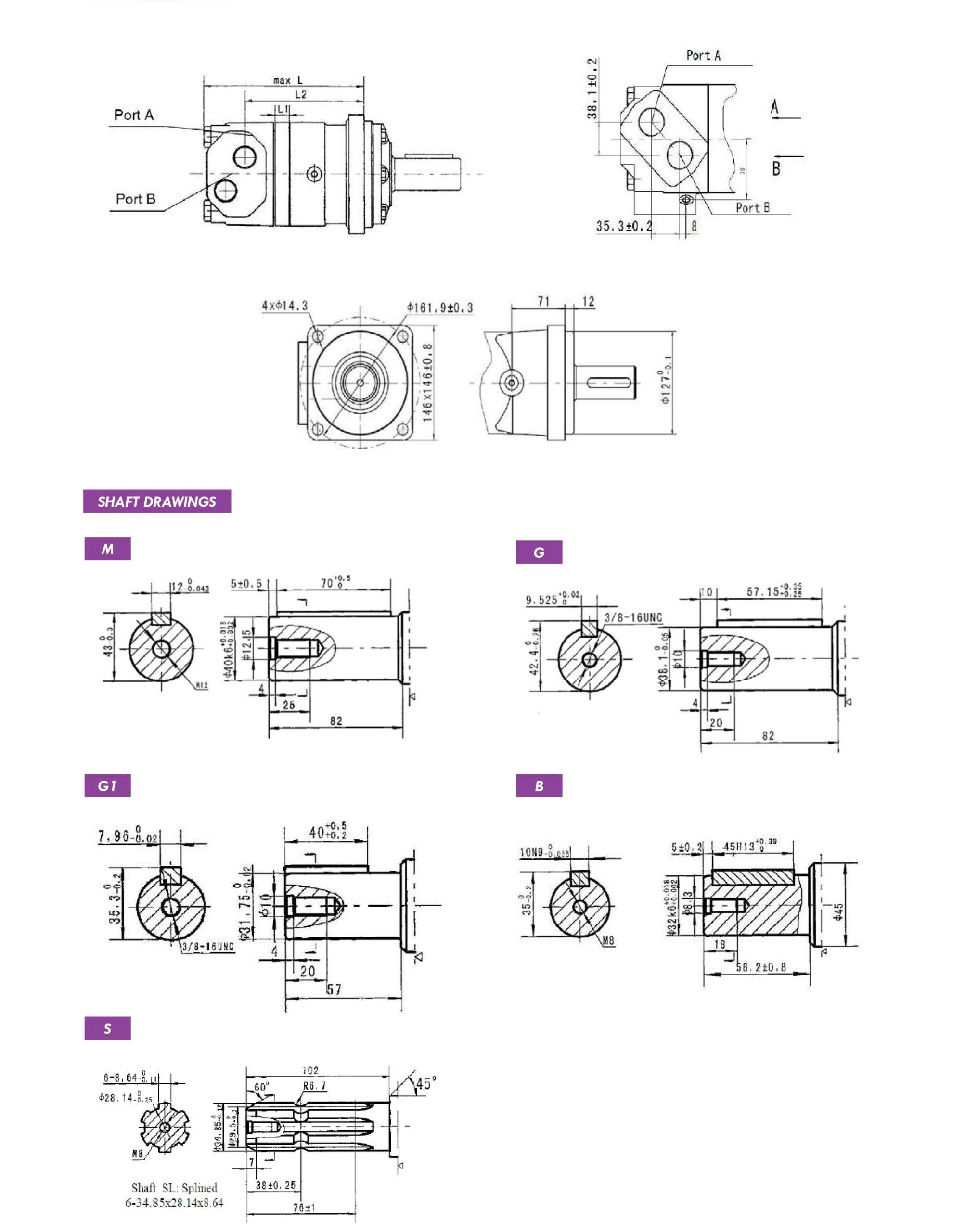

GEROLER MOTORS - BMT

BMT SERIES NOMENCLATURE

Series	–	Displacement		–	Flange		Shaft		Port		Colour
BMT	–	160	161.1cc	–	4	4-bolt square	B	32mm keyed	S	3/4″ BSPP	B	Black
		200	201.4cc				G1	1.1 /4″ keyed
		250	251.8cc				G	1.1/2″ keyed
		315	326.3cc				M	40mm keyed
		400	410.9cc				S	1.3/8″ 6T splined
		500	523.6cc
		630	629.1cc
		800	801.8cc

BMT SERIES NOMENCLATURE

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMT-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMT-SK

BMT Series Geroler Motor

SIZE

BMT160

BMT200

BMT250

BMT315

BMT400

BMT500

BMT630

BMT800

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

TECHNICAL DATA

SIZE		BMT160	BMT200	BMT250	BMT315	BMT400	BMT500	BMT630	BMT800
Ports		3/4” BSPP (A+B) 1/4” BSPP drain (T)
Displacement	CC	161.1	201.4	251.8	326.3	410.9	523.6	629.1	801.8
Max Speed Cont	Rpm	625	625	500	380	305	240	196	154
Max Speed Int	Rpm	780	750	600	460	365	285	233	185
Pressure Cont	Bar	200	200	200	200	180	160	140	125
Pressure Int		240	240	240	240	210	180	160	130
Pressure Peak		280	280	280	280	240	210	190	160
Max Torque Cont	Nm	470	590	730	950	1080	1220	1318	1464
Max Torque Int	Nm	560	710	880	1140	1260	1370	1498	1520
Max Output Cont	kW	27.7	34.9	34.5	34.9	31.2	28.8	25.3	22.2
Max Output Int	kW	32	40	40	40	35	35	27.5	26.8
Max Flow Cont	Ipm	100	125	125	125	125	125	125	125
Max Flow Int	Ipm	125	150	150	150	150	150	150	150
Max Inlet Press Cost	Bar	210	210	210	210	210	210	210	210
Max Inlet Press Int	Bar	250	250	250	250	250	250	250	250
Weight	kg	19.5	20	20.5	21	22	23	24	25
Dimension L	mm	193	197	204	210	217	225	237	248
Dimension L1		17	21	14	20	27	35	47	58
Dimension L2		142.5	146.5	152.5	158.5	165.5	173.5	185.5	196.5

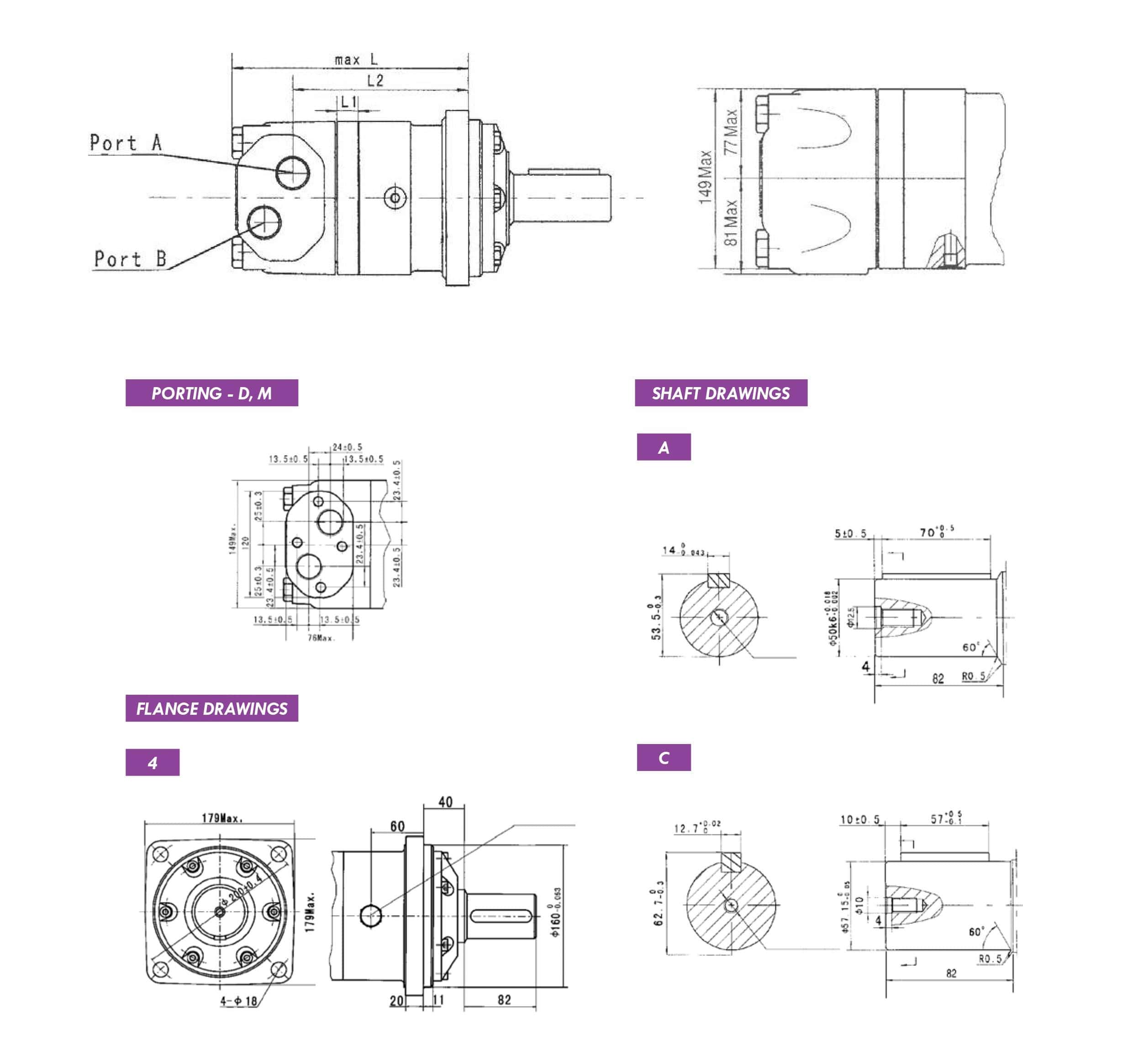

GEROLER MOTORS - BMV

BMV SERIES NOMENCLATURE

Series	–	Displacement		–	Flange		Shaft		Port		Colour
BMV	–	315	333	–	4	4-bolt square	A	50mm keyed	S	1″ BSPP	B	Black
		400	419				C	2.1/4″ keyed
		500	518
		630	666
		800	801
		1000	990

Seal Kit

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
BMV-SK	$

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

BMV-SK

BMV Series Geroler Motor

SIZE		BMV315	BMV400	BMV500	BMV630	BMV800	BMV1000
List Price $		2148.00	2238.00	2374.00	2839.00	2975.00	3300.00

TECHNICAL DATA

SIZE		BMV3I 5	BMV400	BMV500	BMV630	BMV800	BMV 1000
Ports		1” BSPP (A+B) 1/4” BSPP drain (T)
Displacement	CC	333	419	518	666	801	990
Max Speed Cont	Rpm	510	500	400	320	250	200
Max Speed Int	Rpm	630	600	480	380	300	240
Pressure Cont	Bar	200	200	200	180	160	140
Pressure Int		240	240	240	210	180	160
Pressure Peak		280	280	280	240	210	180
Max Torque Cont	Nm	920	1180	1460	1660	1880	2015
Max Torque Int		1110	1410	1760	1940	2110	2280
Max Torque Peak		1290	1640	2050	2210	2470	2400
Max Output Cant	kW	38	47	47	40	33	28.6
Max Output Int	kW	46	56	56	56	44	40
Max Flow Cant	Ipm	160	200	200	200	200	200
Max Flow Int	Ipm	200	240	240	240	240	240
Weight	kg	31.8	32.6	33.5	34.9	36.5	38.6
Dimension L	mm	217	224	232	244	255	271
Dimension L1		20	27	35	47	58	74
Thread C		M12	M12	M12	M12	M12	M12

PLANETARY WHEEL DRIVES

PLANETARY WHEEL DRIVE NOMENCLATURE

Series	–	Series Code		–	Ratio		–	Brake		–	Motor Series		–	Displacement		–	Ports		–	Painted
WGB	–	150	150011m	–	5.75	5.75	–	BK	with Brake	–	WT	BMSY	–	80	80cc	–	D	1/2′ BSPP	–	0	No Paint
														100	100cc
														125	125cc
														160	160cc
														200	200cc
														250	250cc
														315	315cc
														375	375cc
														400	400cc

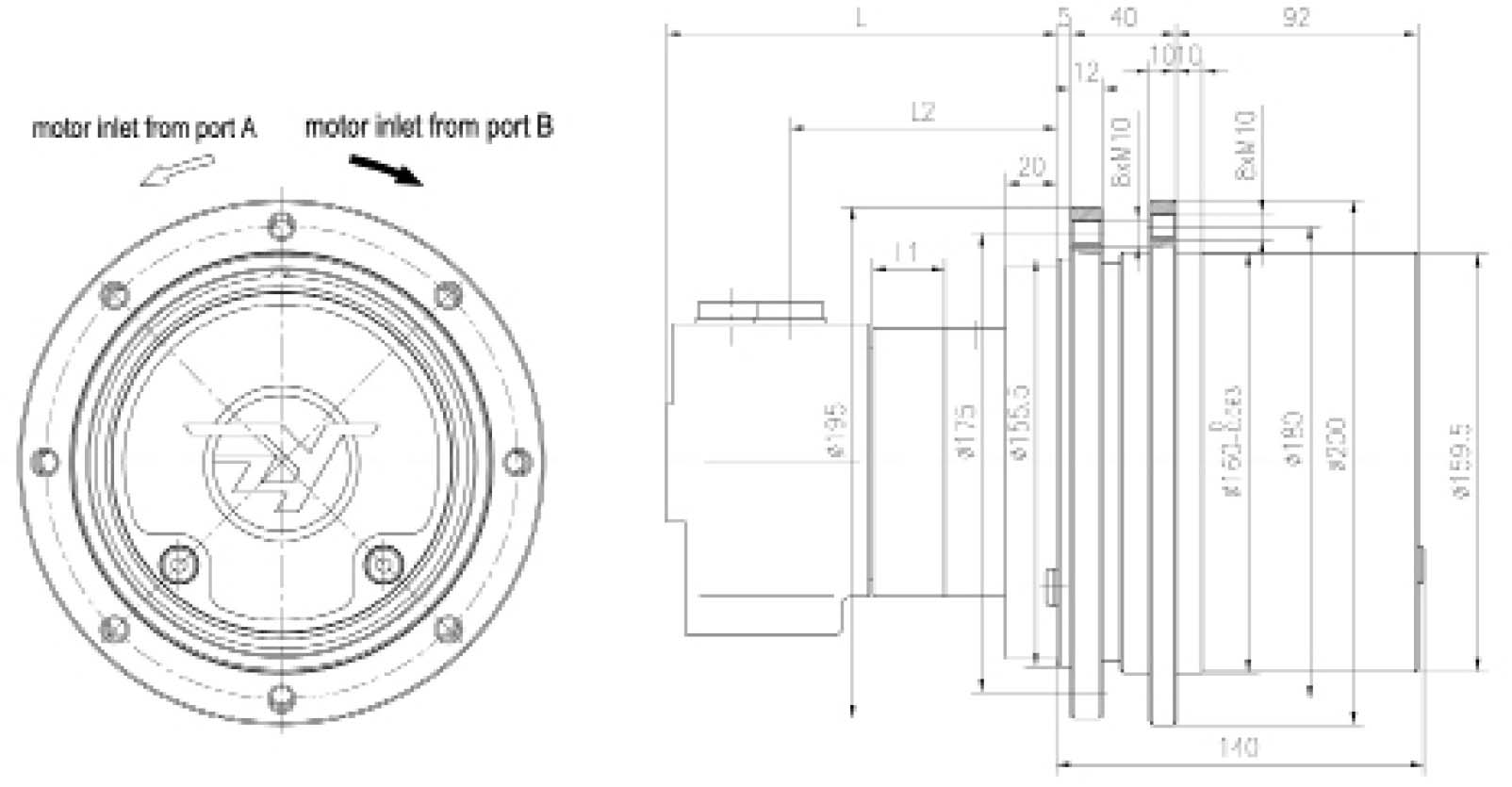

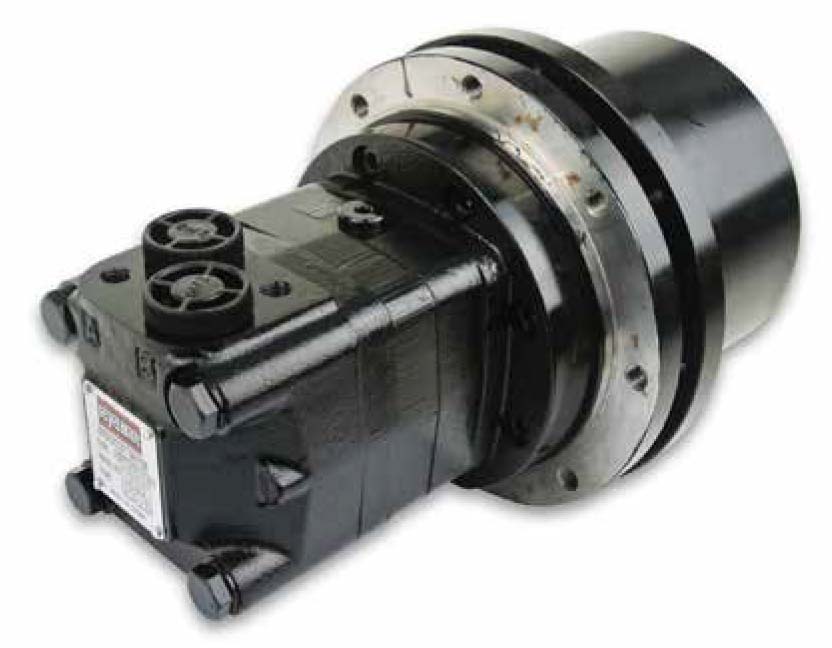

Planetary Wheel Drive

Displacement	80cc	100cc	125cc	160cc	200cc	250cc	315cc	400cc
List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	$	$	$	$	$	$	$	$
L1 (mm)	13	17	22	27.5	35.1	47	59	71
L2 (mm)	69	73	78	83.5	91.1	103	115	127
L (mm)	134.5	138.5	143.5	149	157	169	181	193

WGB150 WITH BMS 125. Main specifications as follows

Main specifications of WGB 150

WGB150		5.75	4.6	3.28
specification Motor	Motor BMS125	125	125	125
	pressure Mpa	15.4	15.4	16.2
	flow L/min	73.3	73.3	69.7
	Vrqui#	260.9	260.9	274.4
	wood rpm	539.5	539.5	512.9
Output speed rpm		93.8	117.3	156.4
Output tarque N-m		1500	1200	900
Output power KW		14	14	14

Main speciofication of the non-standad motor with WGB 150 will be calculated upon hydraulic motor. The max. output tarque of WGB 150 is 1500 Nm. the max. output power is 14 kW.

HYDRAULIC MOTOR VALVES

Cross Line Relief Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow Rate	Pressure Range	Series	A+B Ports	Bolts
DCF1201	$	40 lpm	10-110 bar	MP, MR	1/2″ BSPP	M8x40 cap screw
DCF1202	$	40 lpm	20-210 bar	MP, MR	1/2″ BSPP	M8x40 cap screw
DCF1203	$	40 lpm	70-350 bar	MP, MR	1/2″ BSPP	M8x40 cap screw
DCM1201	$	40 lpm	10-140 bar	MSY	1/2- BSPP	M10x40 cap screw
DCM1202	$	40 lpm	20-210 bar	MSY	1/2″ BSPP	M10x40 cap screw
DCM1203	$	40 lpm	70-350 bar	MSY	1/2″ BSPP	M10x40 cap screw

Shuttle Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow Rate	Max Pressure	Series	A+B Ports	C Port	Bolts
FSRDB	$	60 lpm	300 bar	MP, MR	1/2″ BSPP	1/4″ BSPP	M8x40 cap screw (x4)
FSSDB	$	60 lpm	300 bar	MSY	1/2″ BSPP	1/4″ BSPP	M10x40 cap screw (x2)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max Flow Rate

Max Pressure

Series

A+B Ports

C Port

Bolts

FSRDB

60 lpm

300 bar

MP, MR

1/2″ BSPP

1/4″ BSPP

M8x40 cap screw (x4)

FSSDB

60 lpm

300 bar

MSY

1/2″ BSPP

1/4″ BSPP

M10x40 cap screw (x2)

Counter Balance Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow Rate	Max Pressure	Series	A+B Ports	C Port	Bolts
FPRDDB	$	60 lpm	70-250 bar	MP, MR	1/2″ BSPP	1/4″ BSPP	M8x50 cap screw (x4)
CBDLSFOMS-03	$	60 lpm	100-350 bar	MSY	1/2″ BSPP	1/4″ BSPP	M8x80 cap screw (x4)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max Flow Rate

Max Pressure

Series

A+B Ports

C Port

Bolts

FPRDDB

60 lpm

70-250 bar

MP, MR

1/2″ BSPP

1/4″ BSPP

M8x50 cap screw (x4)

CBDLSFOMS-03

60 lpm

100-350 bar

MSY

1/2″ BSPP

1/4″ BSPP

M8x80 cap screw (x4)

Dual Counter Balance Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow Rate	Pressure Range	Series	A+B Ports	Ratio	Bolts
DCVB1201S	$	60 lpm	30-210 bar	MP, MR	1/2″ BSPP	1:4.25	M8x50 Cap Screw (x4)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max Flow Rate

Pressure Range

Series

A+B Ports

Ratio

Bolts

DCVB1201S

60 lpm

30-210 bar

MP, MR

1/2″ BSPP

1:4.25

M8x50 Cap Screw (x4)

Single Counter Balance Valve

Part #	List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.	Max Flow Rate	Pressure Range	Series	A+B Ports	Ratio	Bolts
SCVB1201S	$	60 lpm	30-210 bar	MP, MR	1/2″ BSPP	1:4.25	M8x50 Cap Screw (x4)

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max Flow Rate

Pressure Range

Series

A+B Ports

Ratio

Bolts

SCVB1201S

60 lpm

30-210 bar

MP, MR

1/2″ BSPP

1:4.25

M8x50 Cap Screw (x4)

Priority Flow Control Valve

Part #	List Price $	Max Flow Rate	Max Pressure	Max Adjustable Flow	Series	A+B Ports	Bolts
PVETOMP03	565.00	60 Ipm	250 bar	50 Ipm	BMP/BMR	1/2″ BSPP

Anti-Cavitation (rundown) Check Valve

Part #	List Price $	Max Flow Rate	Max Pressure	Cracking Pressure	Series	A+B Ports	Bolts
ACVOMPO3	270.00	50 Ipm	250 bar	0.5 bar	BMP/BMR	1/2″ BSPP

Call Charles 0418 641 566 Email: sales@catford.com.au Jamestown South Australia 5491

Hydraulic Motors

Call: 0418 641 566

Email: sales@catford.com.au

Hydraulic Motors

HYDRAULIC MOTORS

CROSS REFERENCE CHART

GEROTOR MOTORS - BMM

BMM SERIES NOMENCLATURE

BMM Series Gerotor Motor

TECHNICAL DATA

Seal Kit

GEROTOR MOTORS - BMP

BMP SERIES NOMENCLATURE

Seal Kit

BMP Series Gerotor Motor

TECHNICAL DATA

GEROTOR MOTORS - BMPH

BMPH SERIES NOMENCLATURE

Seal Kit

BMPH Series Gerotor Motor

TECHNICAL DATA

GEROLER MOTORS - BMR

BMR SERIES NOMENCLATURE

Seal Kit

BMR Series Geroler Motor

TECHNICAL DATA

GEROLER MOTORS - BMRS

BMRS SERIES NOMENCLATURE

Seal Kit

BMRS Series Geroler Motor

TECHNICAL DATA

GEROLER MOTORS - BMSY

BMSY SERIES NOMENCLATURE

Seal Kit

BMSY Series Geroler Motor

TECHNICAL DATA

GEROLER MOTORS - BMT

BMT SERIES NOMENCLATURE

BMT SERIES NOMENCLATURE

BMT Series Geroler Motor

TECHNICAL DATA

GEROLER MOTORS - BMV

BMV SERIES NOMENCLATURE

Seal Kit

BMV Series Geroler Motor

TECHNICAL DATA

PLANETARY WHEEL DRIVES

PLANETARY WHEEL DRIVE NOMENCLATURE

Planetary Wheel Drive

WGB150 WITH BMS 125. Main specifications as follows

Main specifications of WGB 150

HYDRAULIC MOTOR VALVES

Cross Line Relief Valve

Shuttle Valve

Counter Balance Valve

Dual Counter Balance Valve

Single Counter Balance Valve

Priority Flow Control Valve

Anti-Cavitation (rundown) Check Valve

Product Enquiry

Call Charles 0418 641 566

© 2024 Catford Engineering. All Rights Reserved.

Website by Tracey Dewell Designs

Call Charles 0418 641 566
Email: sales@catford.com.au Jamestown South Australia 5491
