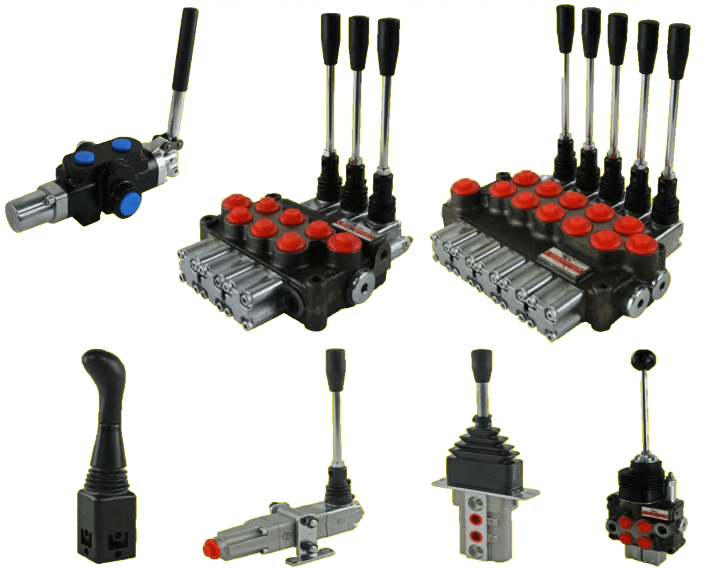

Monoblock Valves

At Catford Engineering we offer a wide range of monoblock valves. Browse our monoblock valve specifications and pricing below.

If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.

Buy Online
Pricing
Enquire
Call Charles 0418 641 566

Lot 25, Mannanarie Road,
Jamestown SA PO Box 178 , Jamestown SA 5491
iso compliance quality guarantee stamp with check mark

ISO 3834-2 (Fusion Welding Process)

Download Brochure

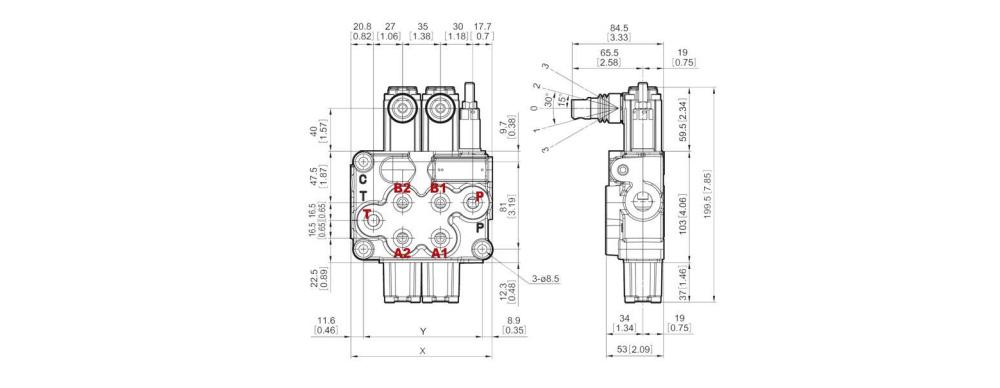

MB2 (45 LPM)

Part Number

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SpoolQuantityMax FlowMax PressurePorts
PT
MB2/1S3/18L/G3-M3$Cylinder145 lpm250 bar25 bar3/8″ BSPP
MB2/1S3/28L/G3-M3$Motor145 lpm250 bar25 bar3/8″ BSPP

Monoblock Valvues

MB2 - ORDERING A COMPLETE ASSEMBLED VALVE

MB-2 / 1S - 3 / 28L / G-3 - M3

Body Kits

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1S1 Section$

Inlet Pressure Relief Valve

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

2YLMB3200240-80 bar direct pressure relief valve$
3YLMB3200363-200 bar direct pressure relief valveStandard$
4YLMB32004160-315 bar direct pressure relief valve$
SVYLMB32100Relief valve blanking plug$



Spool Options

Code Part # Description List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
1 YLMB23001 Double acting, 3 positions, A+B closed in neutral position Standard $
2 YLMB23002 Double acting, 3 positions, A+B open to tank in neutral position Standard $
3 YLMB23003 Single acting on A closed in neutral position, 3 positions, B plugged $
4 YLMB23004 Single acting on B closed in neutral position, 3 positions, A plugged $

B-Side Spool Positioner

Code Part # Description List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
8 YLMB24008 With spring return to neutral position STANDARD Standard $
6-1 YLMB24061 Detent in position 1-0-2, without spring centered $
6-2 YLMB24062 2 positions, detent in position 0-2, without spring centered $
6-3 YLMB24063 2 positions, detent in position 1-0, without spring centered $
6-4 YLMB24082 MB2 2 position kit, spring centred from position 2 $
6-5 YLMB24081 MB2 2 position kit, spring centred from position 1 $
9-1 YLMB24091 Detent in position 1, 2 with spring centered $
9-2 YLMB24092 Detent in position 2 with spring centered $
9-3 YLMB24093 Detent in position 1 with spring centered $
8P YLMB24080 ON/OFF pneumatic actuator $
8MG1 YLMB24801 Microswitch kit operated in position 1 (normally open) $
8MG2 YLMB24802 Microswitch kit operated in position 2 (normally open) $
8MG3 YLMB24803 Microswitch kit operated in position 1 & 2 (normally open) $
8D2 YLMB24200 Spring return to neutral position and pin with M8 male thread for dual control $

A-Side Option

Code Part # Description List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page.
L YLMB45000 Standard lever box Standard $
TQ YLMB45003 Flexible cable connection (also requires RCC-3 remote lever and cable – see p228) $

Outlet Cover

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

M3Open centreStandard–

Monoblock Valves

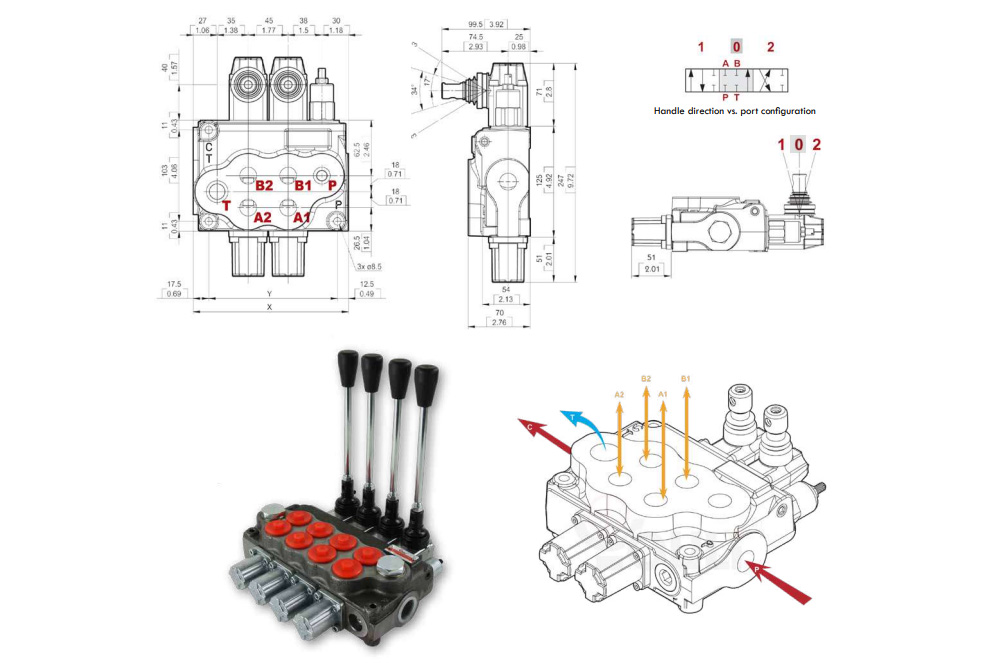

MB3 (45 LPM)

MB3 Monoblock

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

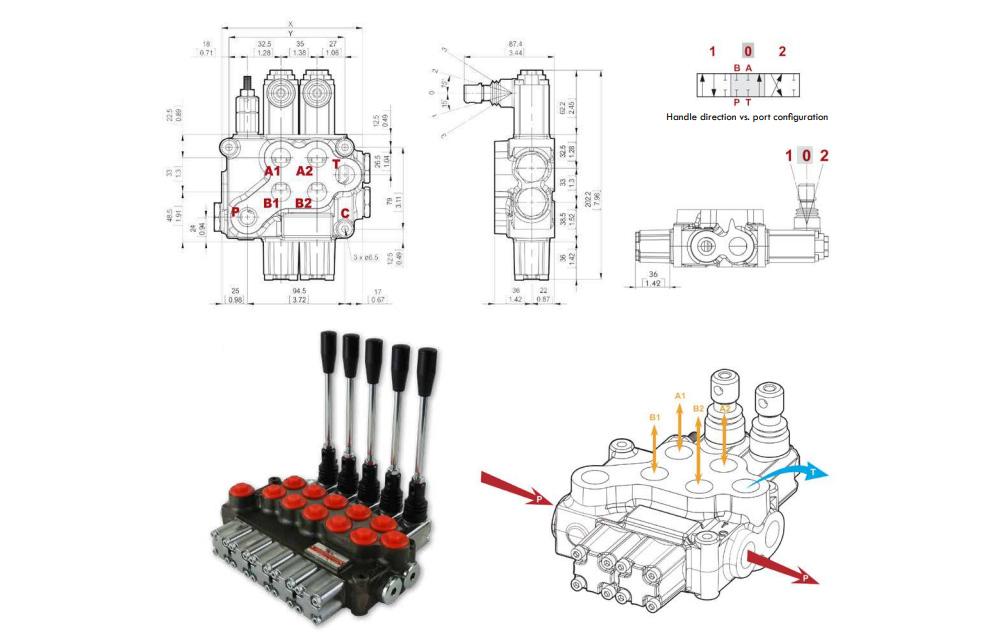

SpoolQtyMax FlowMax Pressure (bar)Ports (BSPP)Dimension (mm)
PTA-BP-T-CXY
MB3/1S3/18L/G4-3-4-M3$Cylinder145315243/8”1/2”93.573
MB3/1S3/28L/G4-3-4-M3$Motor145315243/8”1/2”93.573
MB3/1S3/48L/G4-3-4-M3$Single Acting145315243/8”1/2”93.573
MB3/2S3/18L/G4-3-4-M3$Cylinder245315243/8”1/2”130.5110
MB3/3S3/18L/G4-3-4-M3$Cylinder345315243/8”1/2”165.5147
MB3/4S3/18L/G4-3-4-M3$Cylinder445315243/8”1/2”202.5184
MB3/5S3/18L/G4-3-4-M3$Cylinder545315243/8”1/2”239.5221
MB3/6S3/18L/G4-3-4-M3$Cylinder645315243/8”1/2”275.6258

MB3 Monoblock with Float Spools

Part # List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. Spool Qty Max Flow Max Pressure (bar) Ports (BSPP) Dimension (mm)
P T P-T-C A-B X Y
MB3/1S3/5PYL/G4-3-4-M3 $ Cylinder w/ Float 1 45 315 25 1/2” 3/8” 93.5 73
MB3/2S3/5PYL/G4-3-4-M3 $ Cylinder w/ Float 2 45 315 25 1/2” 3/8” 130.5 110
MB3/2S3/18L/5PYL/G4-3-4-M3 $ 1x Cylinder, 1x Float 2 45 315 25 1/2” 3/8” 130.5 110
MB3/4S3/18L/5PYL/G4-3-4-M3 $ 2x Cylinder, 2x Float 4 45 315 25 1/2” 3/8” 202.5 184

MB3 Accessories

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
YLMB08160$MB3 manual lever M8 x 160mm
YLMB3SEAL$Spool seal kit (advise number of spools)
YLMB44080-SK$MB3 pneumatic actuator seal kit

Monoblock Valves

MB3 (45 LPM)

MB3 Electrical Options

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

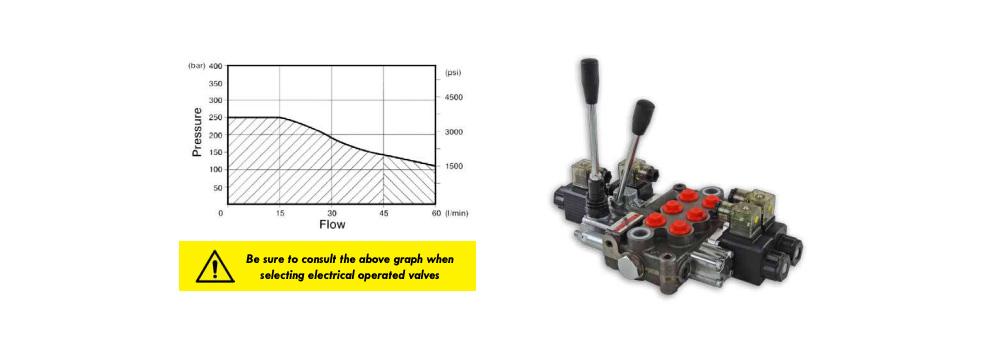

VoltageFunctionSpoolManual LeverNominal Pres.Nominal Flow
YLMB34511$12v DCD/AClosed centre–250 bar45 lpm
YLMB34521$12v DCD/AOpen centre–250 bar45 lpm
YLMB34512$24v DCD/AClosed centre–250 bar45 lpm
YLMB34522$24v DCD/AOpen centre–250 bar45 lpm
YLMB34511L$12v DCD/AClosed centreYes250 bar45 lpm
YLMB34521L$12v DCD/AOpen centreYes250 bar45 lpm
YLMB34512L$24v DCD/AClosed centreYes250 bar45 lpm
YLMB34522L$24v DCD/AOpen centreYes250 bar45 lpm
YLMB8ES001$MB3 8ES Coil Retaining Nut
YLMB8ES12D$MB3 8ES Coil 12v DC
YLMB8ES24D$MB3 8ES Coil 24v DC

Monoblock Valves

MB3 - ORDERING A COMPLETE ASSEMBLED VALVE

MB-3 / 2S - 3 / 18L / 28L / G-4-3-4 - M3 - 12

Body Kits

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1S1 section$
2S2 section$
3S3 section$
4S4 section$
5S5 section$
6S6 section$

Inlet Pressure Relief Valve

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

2YLMB3200240-80 bar direct pressure relief valve$
3YLMB3200360-210 bar direct pressure relief valve STANDARD$
4YLMB32004160-315 bar direct pressure relief valve$
SVYLMB32100Relief valve blanking plug$

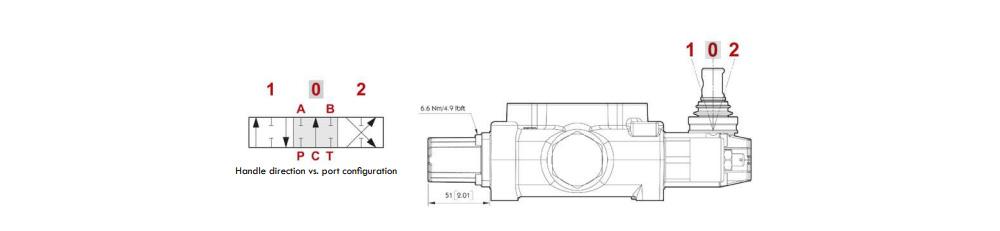

Spool Options

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1YLMB33001Double acting, 3 positions, A+B closed in neutral position STANDARD$
2YLMB33002Double acting, 3 positions, A+B open to tank in neutral position$
3YLMB33003Single acting on A closed in neutral position, 3 positions, B plugged$
4YLMB33004Single acting on B closed in neutral position, 3 positions, A plugged$
5PYSelected valves onlyDouble acting, 4 positions, floating circuit 4th position w/ A+B open to tank via lever–

B-Side Spool Positioner

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

6-1YLMB44061Detent in position 1-0-2, without spring centered$
6-2YLMB440622 positions, detent in position 0-2, without spring centered$
6-3YLMB440632 positions, detent in position 1-0, without spring centered$
8YLMB44008With spring return to neutral position STANDARD$
8-1YLMB440812 positions, with spring centered from position 1$
8-2YLMB440822 positions, with spring centered from position 2$
9-1YLMB44091Detent in position 1, 2 with spring centered$
9-2YLMB44092Detent in position 2 with spring centered$
9-3YLMB44093Detent in position 1 with spring centered$
8D2YLMB44200Spring return to neutral position and pin with M8 male thread for dual control$
8MG1YLMB44801Microswitch kit operated in position 1 (normally open)$
8MG2YLMB44802Microswitch kit operated in position 2 (normally open)$
8MG3YLMB44803Microswitch kit operated in position 1 & 2 (normally open)$
9MG4YLMB448055PYL float microswitch kit operated in position 1 & 2 (normally open)$
8PYLMB44080ON/OFF pneumatic actuator$
8EP3YLMB44300-12V
YLMB44300-24V		ON/OFF electro-pneumatic actuator 12v DC / 24v DC$
8ES3YLMB345**** See electrical options on page 219 ON/OFF electro-hydraulic control without lever$
8ES3LESYLMB345**L** See electrical options on page 219 ON/OFF electro-hydraulic control with lever$
8ESNAYLMB8ESN12DON/OFF electro-hydraulic control with lever$
8ESNBYLMB8ESN24DON/OFF electro-hydraulic control with lever$
8IMYLMB440810Hydraulic pilot kit – MB3/MB4 – pilot pressure maximum 50 bar$

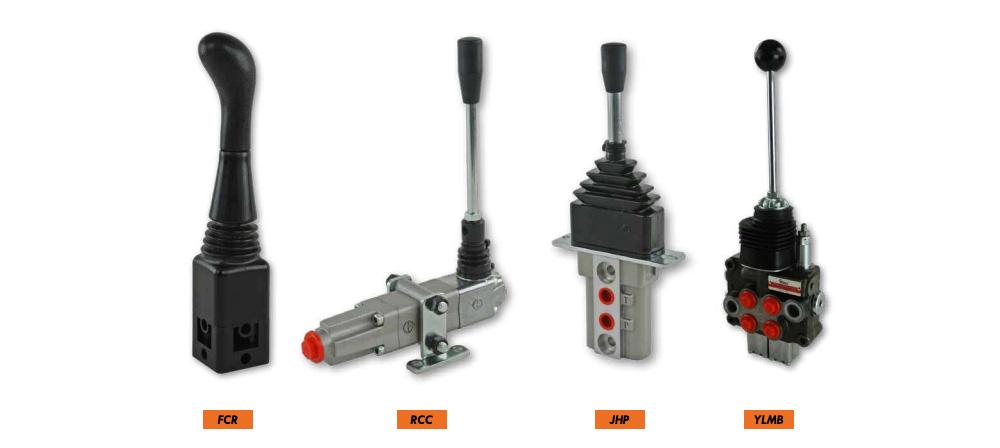

A-Side Option

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

LYLMB45000Standard lever box STANDARD$
LCBYLMB45002Joystick lever for 2 section operation$
TQYLMB45003Flexible cable connection (also requires RCC-3 remote lever and cable – see p228)$



Outlet Cover

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

M3–Open centre STANDARD–
M8YLMB34COPClosed centre (power beyond conversion plug)$

Voltage

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1212v DC coils–
2424v DC coils–

MONOBLOCK VALVES

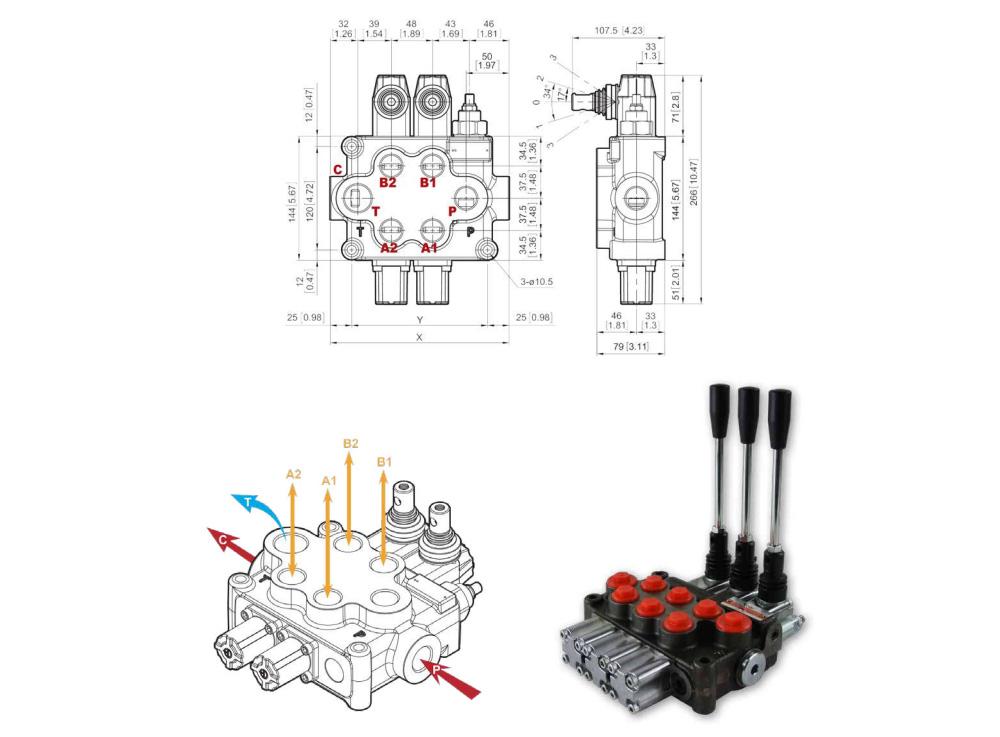

MB4 (60 LPM)

MB4 Monoblock

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SpoolQtyMax Flow (lpm)Max Pressure (bar)Ports (BSPP)Dimension (mm)
PTXY
MB4/1S3/18L/G4-M3$Cylinder160315251/2”101.577.5
MB4/1S3/28L/G4-M3$Motor160315251/2”101.577.5
MB4/1S3/48L/G4-M3$Single Acting160315251/2”101.577.5
MB4/2S3/18L/G4-M3$Cylinder260315251/2”136.5112.5
MB4/3S3/18L/G4-M3$Cylinder360315251/2”171.5147.5
MB4/4S3/18L/G4-M3$Cylinder460315251/2”206.5182.5
MB4/5S3/18L/G4-M3$Cylinder560315251/2”241.5217.5
MB4/6S3/18L/G4-M3$Cylinder660315251/2”276.5252.5

MB4 Accessories

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
YLMB08160$MB4 manual lever M10 x 200mm
YLMB4SEAL$Spool seal kit (advise number of spools)
YLMB44080-SK$MB4 pneumatic actuator seal kit

MONOBLOCK VALVES

MB4 - ORDERING A COMPLETE ASSEMBLED VALVE

MB-4 / 2S - 3 / 18L / 28L / G-4 - M3 - 12

Body Kits

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1S1 section$
2S2 sections$
3S3 sections$
4S4 sections$
5S5 sections$
6S6 sections$

Inlet Pressure Relief Valve

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

2YLMB4200240-80 bar direct pressure relief valve$
3YLMB4200363-200 bar direct pressure relief valve STANDARD$
4YLMB42004160-315 bar direct pressure relief valve$
SVYLMB42100Relief valve blanking plug$

Spool Options

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1YLMB43001Double acting, 3 positions, A+B closed in neutral position STANDARD$
2YLMB43002Double acting, 3 positions, A+B open to tank in neutral position$
3YLMB43003Single acting on A closed in neutral position, 3 positions, B plugged$
4YLMB43004Single acting on B closed in neutral position, 3 positions, A plugged$

B-Side Spool Positioner

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

6-1YLMB44061Detent in position 1-0-2, without spring centered$
6-2YLMB440622 positions, detent in position 0-2, without spring centered$
6-3YLMB440632 positions, detent in position 1-0, without spring centered$
8YLMB44008With spring return to neutral position STANDARD$
8-1YLMB440812 positions, with spring centered from position 1$
8-2YLMB440822 positions, with spring centered from position 2$
9-1YLMB44091Detent in position 1, 2 with spring centered$
9-2YLMB44092Detent in position 2 with spring centered$
9-3YLMB44093Detent in position 1 with spring centered$
8EP3YLMB44300-12VON/OFF electro-pneumatic actuator 12v DC$
8EP3YLMB44300-24VON/OFF electro-pneumatic actuator 24v DC$
8PYLMB44080ON/OFF pneumatic actuator$
8MG1YLMB44801Microswitch kit operated in position 1 (normally open)$
8MG2YLMB44802Microswitch kit operated in position 2 (normally open)$
8MG3YLMB44803Microswitch kit operated in position 1 & 2 (normally open)$
8IMYLMB440810Hydraulic pilot kit – MB4 – pilot pressure max 50 bar$

A-Side Option

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

LYLMB45000Standard lever box STANDARD$
LCBYLMB45002Joystick lever for 2 section operation$
TQYLMB45003Flexible cable connection (also requires RCC-3 remote lever and cable – see p228)$



Outlet Cover


CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

M3 Open centre STANDARD
M8YLMB34COPClosed centre (power beyond conversion plug)$

Voltage



CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1212v DC coils–
2424v DC coils–

Monoblock Valves

MB5 (80 LPM)

MB5 Monoblock

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SpoolQtyMax Flow (lpm)Max Pressure (bar)Ports (BSPP)Dimension (mm)
PTP-T-CA-BXY
MB5/1S3/18L/G8-6-8-M3$Cylinder180315251”3/4”130100
MB5/1S3/28L/G8-6-8-M3$Motor180315251”3/4”130100
MB5/1S3/48L/G8-6-8-M3$Single Acting180315251”3/4”130100
MB5/2S3/18L/G8-6-8-M3$Cylinder280315251”3/4”174.5145
MB5/3S3/18L/G8-6-8-M3$Cylinder380315251”3/4”219.5190
MB5/4S3/18L/G8-6-8-M3$Cylinder480315251”3/4”264.5235
MB5/5S3/18L/G8-6-8-M3$Cylinder580315251”3/4”309.5280
MB5/6S3/18L/G8-6-8-M3$Cylinder680315251”3/4”354.5325

MB5 Accessories

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
YLMB10200$MB5 manual lever M10 x 200mm
YLMB5SEAL$Spool seal kit (advise number of spools)
YLMB54080-SK$MB5 pneumatic actuator seal kit

Monoblock Valves

MB5 - ORDERING A COMPLETE ASSEMBLED VALVE

MB-5 / 2S - 3 / 18L / 28L / G-8-6-8 - M3 - 12

Body Kits

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1S1 section$
2S2 sections$
3S3 sections$
4S4 sections$
5S5 sections$
6S6 sections$

Inlet Pressure Relief Valve

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

XAGYLX2100025-315 bar pilot operated pressure relief valve$
2YLMB5200280-160 bar direct pressure relief valve$
3YLMB52003125-250 bar direct pressure relief valve STANDARD$
4YLMB52004200-315 bar direct pressure relief valve$
SVYLMB52100Relief valve blanking plug$



Spool Options

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1YLMB53001Double acting, 3 positions, A+B closed in neutral position STANDARD$
2YLMB53002Double acting, 3 positions, A+B open to tank in neutral position$
3YLMB53003Single acting on A closed in neutral position, 3 positions, B plugged$
4YLMB53004Single acting on B closed in neutral position, 3 positions, A plugged$

B-Side Spool Positioner

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

6-1YLMB54061Detent in position 1-0-2, without spring centered$
6-2YLMB540622 positions, detent in position 0-2, without spring centered$
8YLMB54008With spring return to neutral position STANDARD$
8-1YLMB548102 positions, with spring centered from position 1$
8-2YLMB548202 positions, with spring centered from position 2$
9-1YLMB54091Detent in position 1, 2 with spring centered$
9-2YLMB54092Detent in position 2 with spring centered$
9-3YLMB54093Detent in position 1 with spring centered$
8EP3YLMB54300-12VON/OFF electro-pneumatic actuator 12v DC$
8EP3YLMB54300-24VON/OFF electro-pneumatic actuator 24v DC$
8PYLMB54080ON/OFF pneumatic actuator$
8MG1YLMB54801Microswitch kit operated in position 1 (normally open)$
8MG2YLMB54802Microswitch kit operated in position 2 (normally open)$
8MG3YLMB54803Microswitch kit operated in position 1 & 2 (normally open)$
8IMYLMB540810Hydraulic pilot kit – MB5- 8IM type$

A-Side Option

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

LYLMB55000Standard lever box STANDARD$
LCBYLMB55002Joystick lever for 2 section operation$
TQYLMB55003Flexible cable connection (also requires RCC-3 remote lever and cable – see p228)$

Outlet Cover

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

M3–Open centre STANDARD–
M8YLMB5COPG6Closed centre (power beyond conversion plug) 3/4” BSPP$
M8YLMB5COPG8Closed centre (power beyond conversion plug) 1” BSPP$

Voltage

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1212v DC coils–
2424v DC coils–

MONOBLOCK VALVES

MB6 (120 LPM)

MB6 Monoblock

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

SpoolQtyMax Flow (lpm)Max Pressure (bar)Ports (BSPP)Dimension (mm)
PTP-T-CA-BXY
MB6/1S3/18L/G8-6-8-M3$Cylinder1120315251”3/4”160110
MB6/1S3/28L/G8-6-8-M3$Motor1120315251”3/4”160110
MB6/1S3/48L/G8-6-8-M3$Single Acting1120315251”3/4”160110
MB6/2S3/18L/G8-6-8-M3$Cylinder2120315251”3/4”208158
MB6/3S3/18L/G8-6-8-M3$Cylinder3120315251”3/4”256206
MB6/4S3/18L/G8-6-8-M3$Cylinder4120315251”3/4”304254

MB6 Accessories

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
YLMB64080-SK$MB6 pneumatic actuator seal kit



MONOBLOCK VALVES

MB6 - ORDERING A COMPLETE ASSEMBLED VALVE

MB-6 / 2S - 3 / 18L / 28L / G-8-6-8 - M3 - 12

Body Kits

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1S1 section$
2S2 sections$
3S3 sections$
4S4 sections$

Inlet Pressure Relief Valve

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

XFGYLPSN6300025-315 bar pilot operated pressure relief valve$
SVYLPSN64000Relief valve blanking plug$
3YLMB62003125-250 bar direct pressure relief valve STANDARD$

Spool Options

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1YLMB63001Double acting, 3 positions, A+B closed in neutral position STANDARD$
2YLMB63002Double acting, 3 positions, A+B open to tank in neutral position$
3YLMB63003Single acting on A closed in neutral position, 3 positions, B plugged$
4YLMB63004Single acting on B closed in neutral position, 3 positions, A plugged$

B-Side Spool Positioner

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

6-1YLMB64061Detent in position 1-0-2, without spring centered$
8YLMB64008With spring return to neutral position STANDARD$
9-2YLMB64092Detent in position 2 with spring centered$
9-3YLMB64093Detent in position 1 with spring centered$
8PYLMB64080ON/OFF pneumatic actuator$
8EP3YLMB64300-12VON/OFF electro-pneumatic actuator 12v DC$
8EP3YLMB64300-24VON/OFF electro-pneumatic actuator 24v DC$

A-Side

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

LYLMB65000Standard lever box STANDARD$

Outlet Cover

CodePart #Description

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

M3–Open centre STANDARD–
M82BMTX01954Closed centre (power beyond conversion plug) 3/4” BSPP$

Voltage

CodeDescription

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

1212v DC coils–
2424v DC coils–

MONOBLOCK VALVES

REMOTE CONTROL ACCESSORIES

Cable Control

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
RCC-3/1S/HL$Remote lever for cable control MB2,3,4
RCC-5/1S/HL$Remote lever for cable control MB5
FCR-2$Joystick for cable control, dual axis
YLMB45003$Cable Connector, spool to joystick cable, MB2,3,4
YLMB55003$Cable Connector, spool to joystick cable, MB5
YLMBCABLE1M$Cable 1 Metre
YLMBCABLE1.5M$Cable 1.5 Metre
YLMBCABLE2M$Cable 2 Metre
YLMBCABLE2.5M$Cable 2.5 Metre
YLMBCABLE3M$Cable 3 Metre

Hydraulic Pilot Controllers

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

DescriptionAxisFlowInlet Pressure RangeA+B Outlet Pressure Range
JHP-1/1S-G2/8-A01B$Spring centreSingle5-20 lpm30-100 bar5-19 bar
JHP-1/1S-G2/9-1-A01B$Spring centre friction detent in position 1+2Single5-20 lpm30-100 bar5-19 bar
JHP-1/1S-G2/FD-A01B$Friction detentSingle5-20 lpm30-100 bar5-19 bar
JHP-1/1S-G2/LES-A01B$Safety lever detent in neutralSingle5-20 lpm30-100 bar5-19 bar
JHP-2/01-G2/01-LCB-B02B$Spring centreDual5-20 lpm30-100 bar6-25 bar

Direct Mount Joystick

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Description
YLMB45002$Dual axis direct mount joystick, MB3/MB4
YLMB55002$Dual axis direct mount joystick, MB5

MONOBLOCK VALVES

LOG SPLITTER VALVES

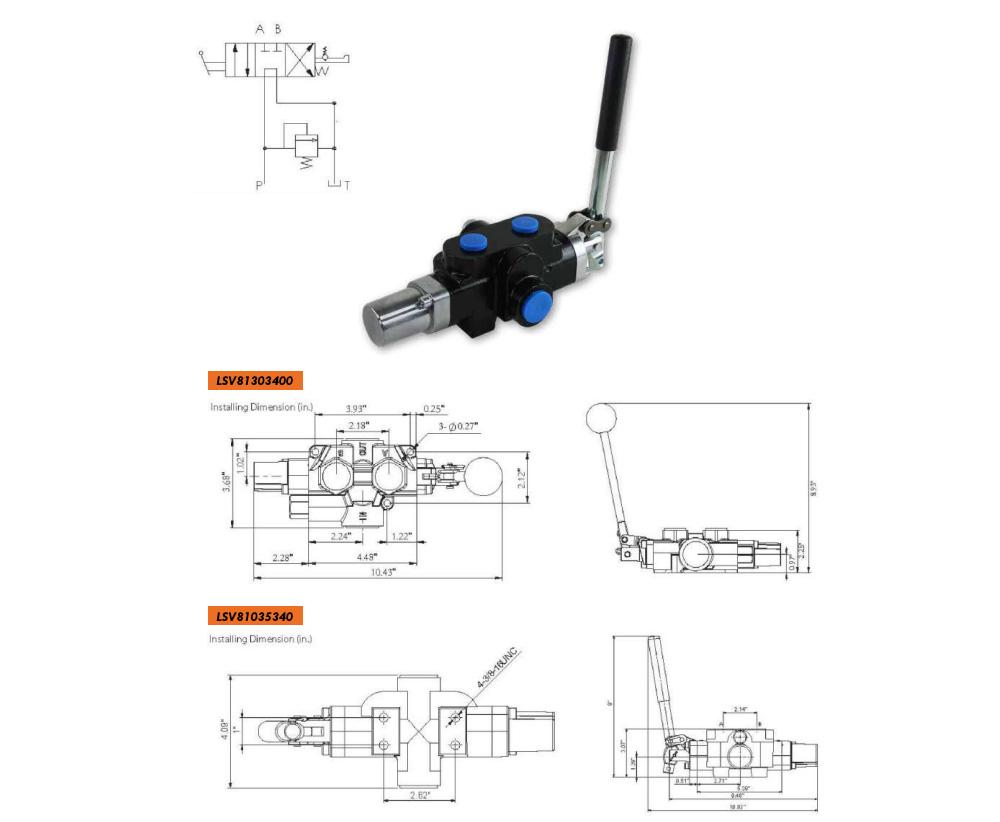

Log Splitter Valve

Part #

List Price Excluding GST

To access PRICES, please click on

“Download Brochure”

Button at the top of the page.

Max FlowMax PressureP+T PortsA+B Ports
LSV81303400$80 lpm3265 psi3/4” BSPP1/2” BSPP
LSV81035340$120 lpm3265 psi3/4” BSPP1/2” BSPP
LSV-81303400-HK$Spare lever assembly1/2” 80 lpm
LSV-81035340-HK$Spare lever assembly1/2” 120 lpm
LSV-81303400-SK$Seal kit for valve LSV81303400
LSV-81035340-SK$Seal kit for valve LSV81035340

Product Enquiry

Eg. 5x Part Number
Please enter your physical address for your us to quote on freight delivery.
=

Lot 25, Mannanarie Road, JAMESTOWN SA
PO Box 178 , JAMESTOWN South Australia 5491

Call Charles 0418 641 566

© 2024 Catford Engineering. All Rights Reserved.
Website by Tracey Dewell Designs
Login to your account
