At Catford Engineering we offer a wide range of hydraulic products. Browse our phasing & re-phasing hydraulic cylinders specifications and pricing below.
If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.
ISO 3834-2 (Fusion Welding Process)

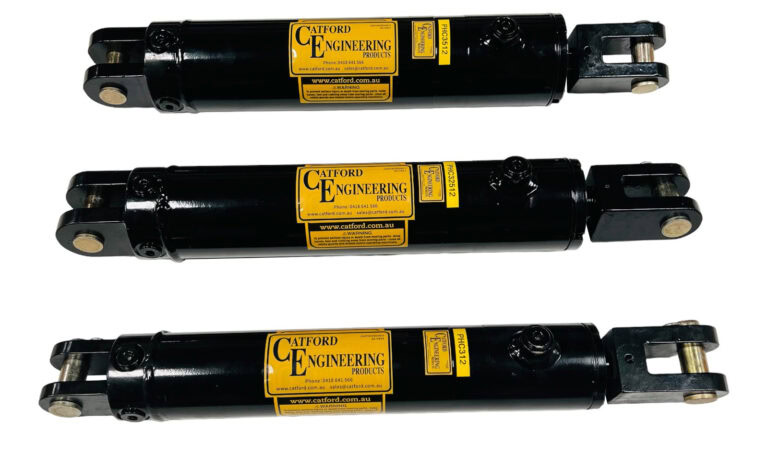

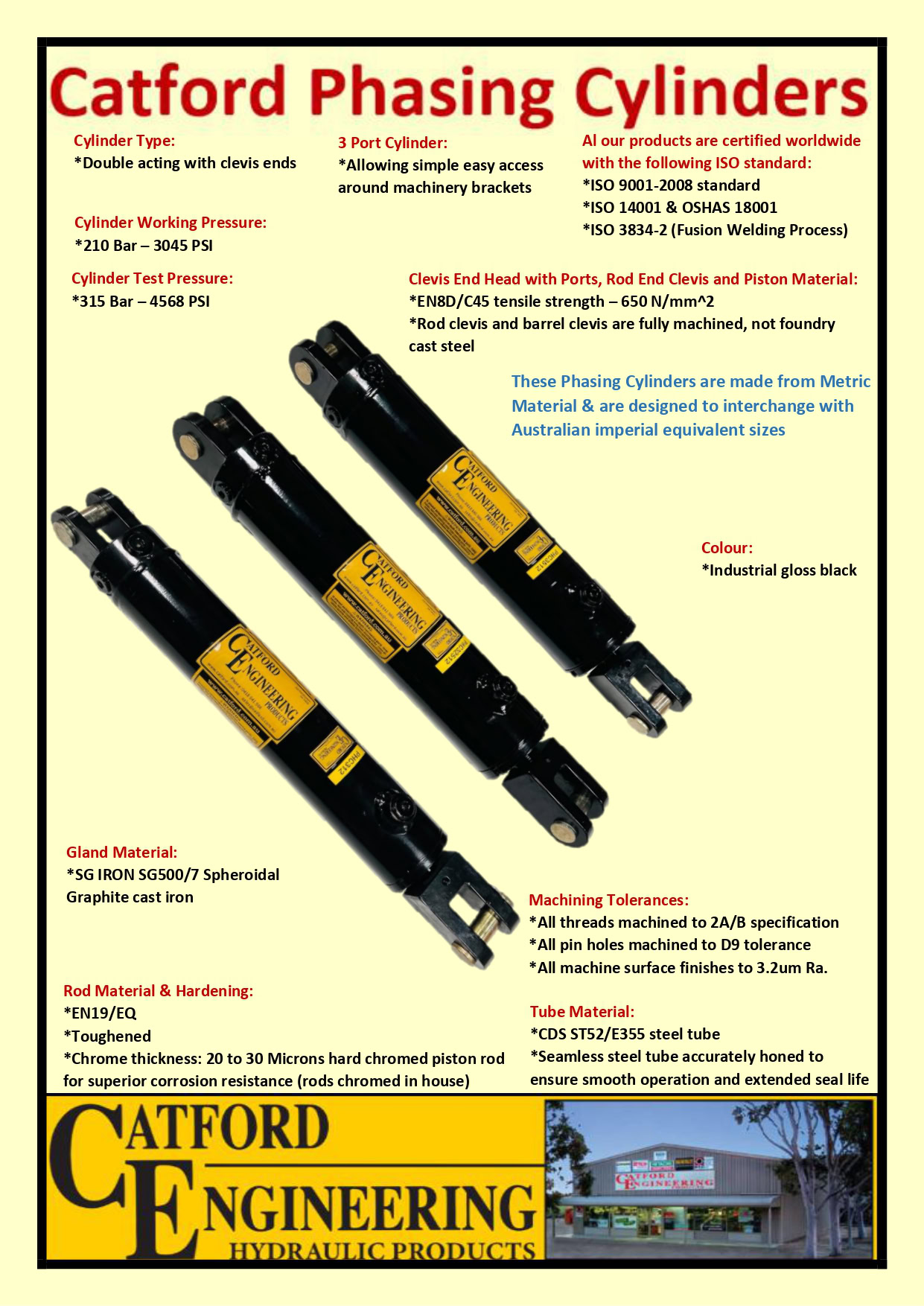

| Cylinder Type: We use Metric Materials in Catford Cylinders. | Double Acting with Clevis ends |
|---|---|
| 3 Port Cylinder: | Allowing simple easy access around machinery brackets |
| Cylinder Working Pressure: | 210 Bar – 3045 PSI |
| Cylinder Test Pressure: | 315 Bar – 4568 PSI |
| Rod Material & Hardening: |
|
| Tube Material: |
|
| Clevis End Head with Ports, Rod End Clevis and Piston Material: |
|
| Gland Material: | SG IRON SG500/7 Spheroidal Graphite Cast Iron |
| Colour: | Industrial Gloss Black |
| Machining Tolerances: |
|

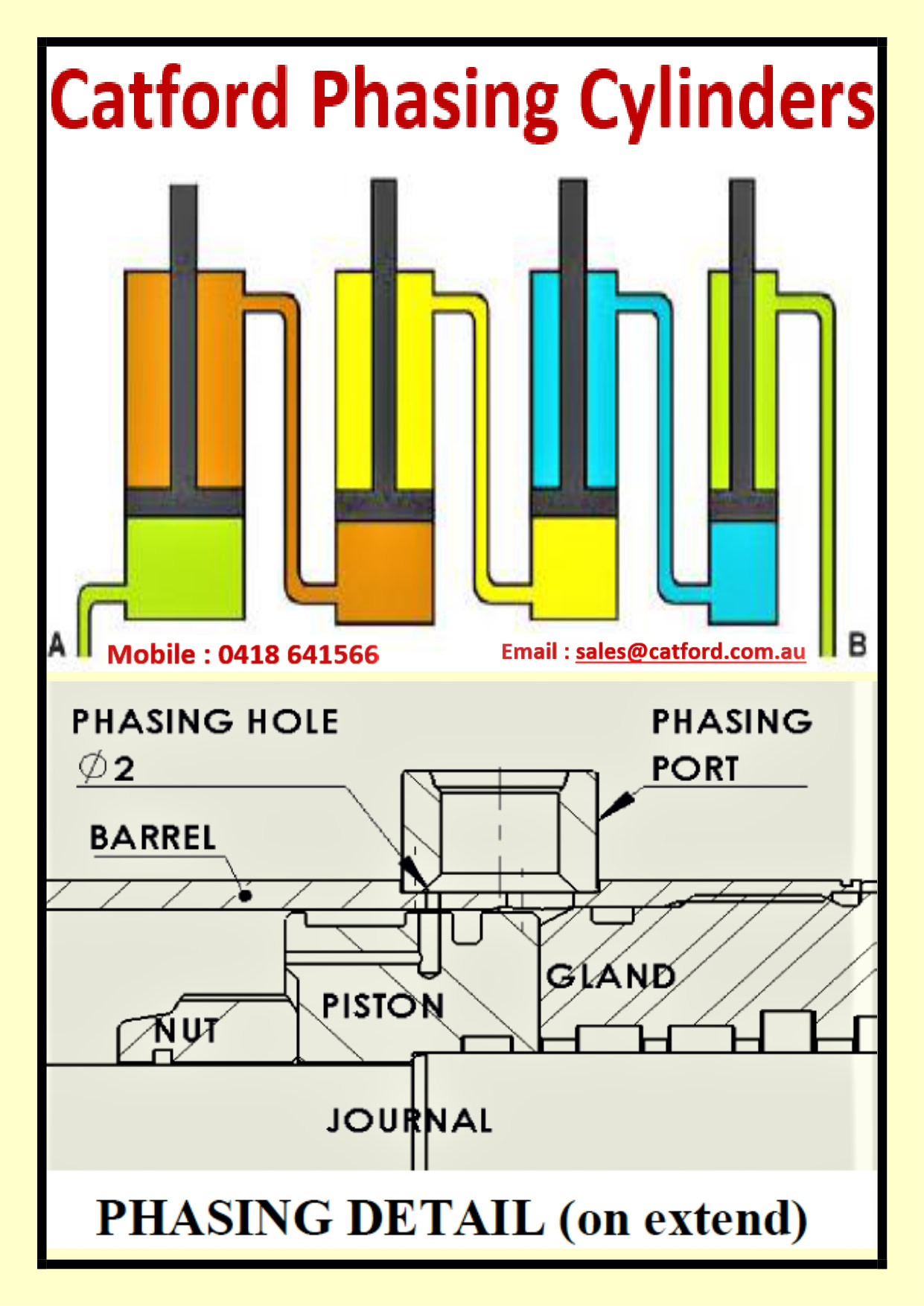

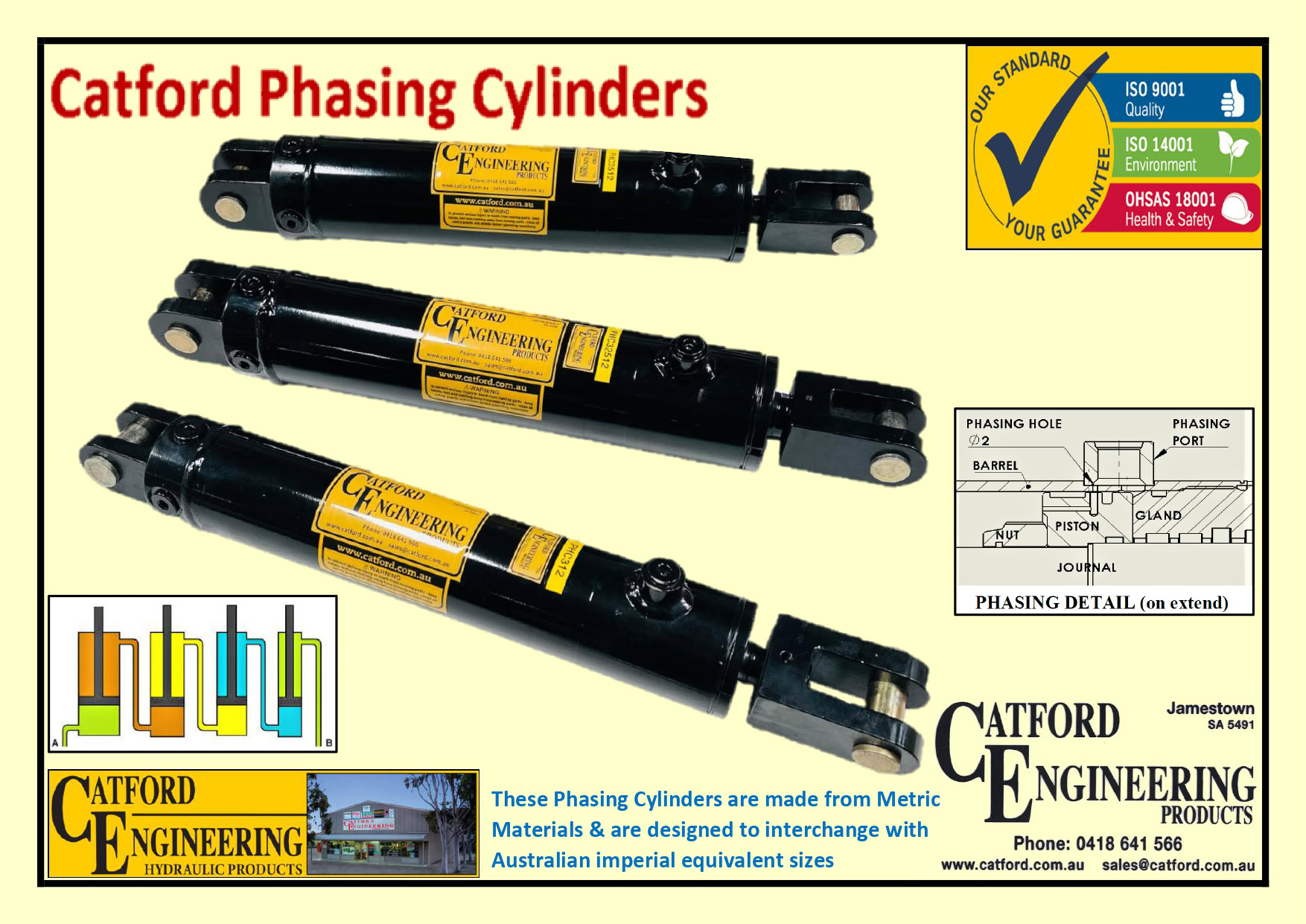

These phasing cylinders are made from metric material and are designed to interchange with Australian imperial equivalent sizes.

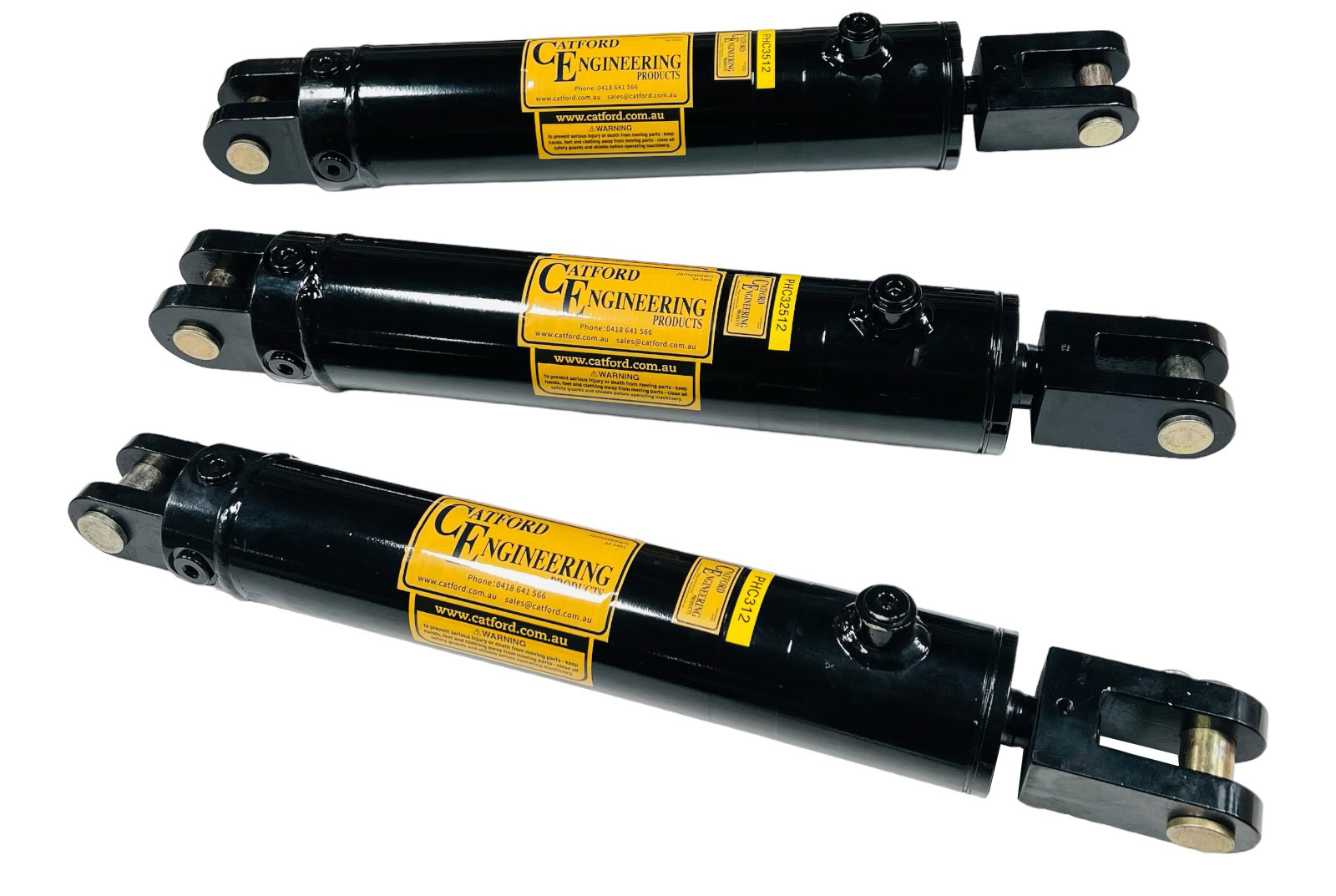

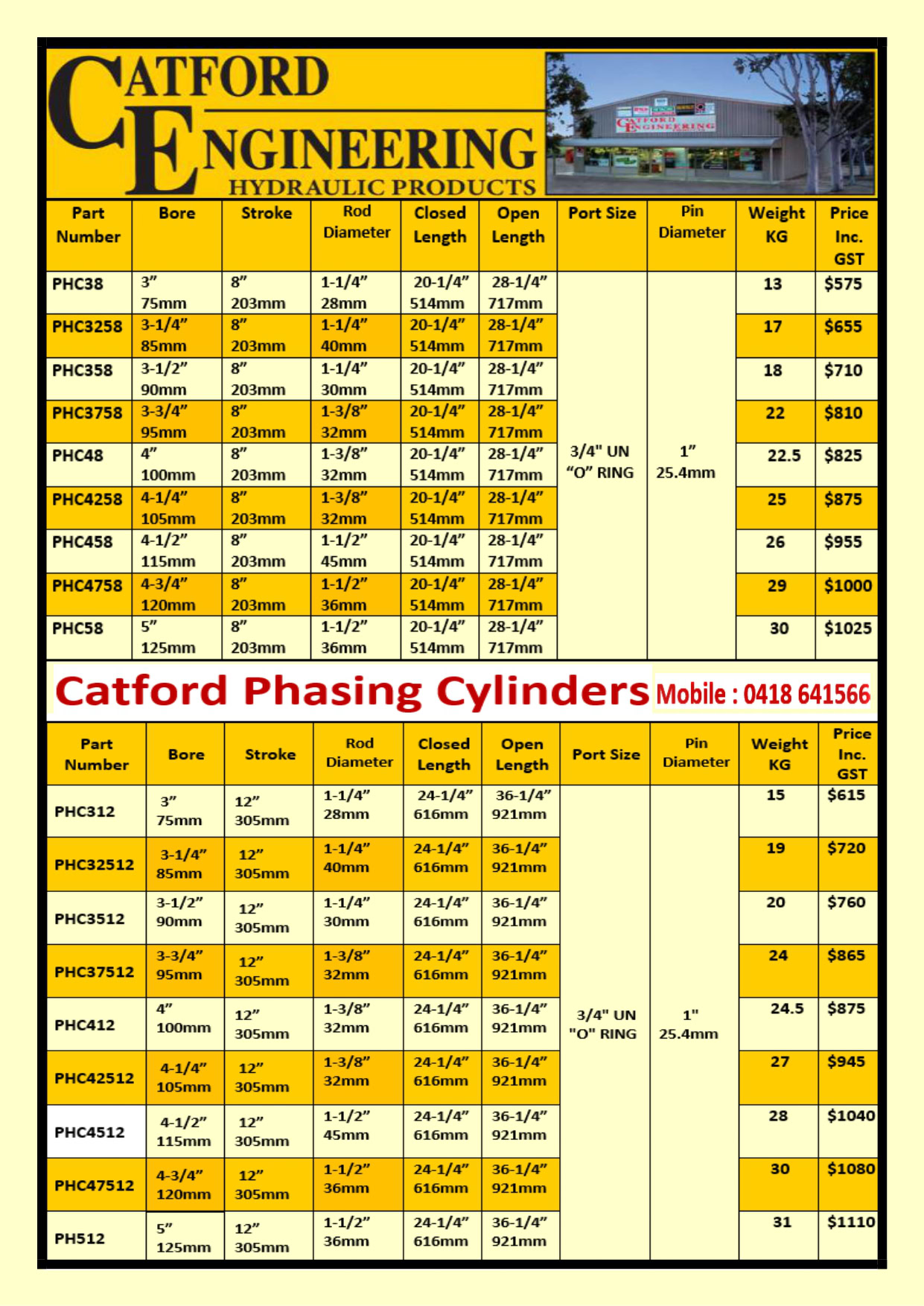

| Part Number | Bore | Stroke | Rod Diameter | Closed Length | Open Length | Port Size | Pin Diameter | Weight KG | Price Inc. GST |
|---|---|---|---|---|---|---|---|---|---|
| PHC38 | 3″ 75mm | 8″ 203mm | 1-1/4″ 28mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 3/4″ UN “0” RING |
1″ 25.4mm |
13 | $575 |
| PHC3258 | 3-1/4″ 85mm | 8″ 203mm | 1-1/4″ 40mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 17 | $655 | ||
| PHC358 | 3-1/2″ 90mm | 8″ 203mm | 1-1/4″ 30mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 18 | $710 | ||
| PHC3758 | 3-3/4″ 95mm | 8″ 203mm | 1-3/8″ 32mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 22 | $810 | ||
| PHC48 | 4″ 100mm | 8″ 203mm | 1-3/8″ 32mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 22.5 | $825 | ||
| PHC4258 | 4-1/4″ 105mm | 8″ 203mm | 1-3/8″ 32mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 25 | $875 | ||
| PHC458 | 4-1/2″ 115mm | 8″ 203mm | 1-1/2″ 45mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 26 | $955 | ||
| PHC4758 | 4-3/4″ 120mm | 8″ 203mm | 1-1/2″ 36mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 29 | $1000 | ||
| PHC58 | 5″ 125mm | 8″ 203mm | 1-1/2″ 36mm | 20-1/4″ 514mm | 28-1/4″ 717mm | 30 | $1025 |
| Part Number | Bore | Stroke | Rod Diameter | Closed Length | Open Length | Port Size | Pin Diameter | Weight KG | Price Inc. GST |
|---|---|---|---|---|---|---|---|---|---|
| PHC312 | 3″ 75mm | 12″ 305mm | 1-1/4″ 28mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 3/4″ UN “O” RING |
1″ 25.4mm |
15 | $615 |
| PHC32512 | 3-1/4″ 85mm | 12″ 305mm | 1-1/4″ 40mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 19 | $720 | ||
| PHC3512 | 3-1/2″ 90mm | 12″ 305mm | 1-1/4″ 30mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 20 | $760 | ||
| PHC37512 | 3-3/4″ 95mm | 12″ 305mm | 1-3/8″ 32mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 24 | $865 | ||
| PHC412 | 4″ 100mm | 12″ 305mm | 1-3/8″ 32mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 24.5 | $875 | ||
| PHC42512 | 4-1/4″ 105mm | 12″ 305mm | 1-3/8″ 32mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 27 | $945 | ||
| PHC4512 | 4-1/2″ 115mm | 12″ 305mm | 1-1/2″ 45mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 28 | $1040 | ||
| PHC47512 | 4-3/4″ 120mm | 12″ 305mm | 1-1/2″ 36mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 30 | $1080 | ||
| PH512 | 5″ 125mm | 12″ 305mm | 1-1/2″ 36mm | 24-1/4″ 616mm | 36-1/4″ 921mm | 31 | $1110 |
