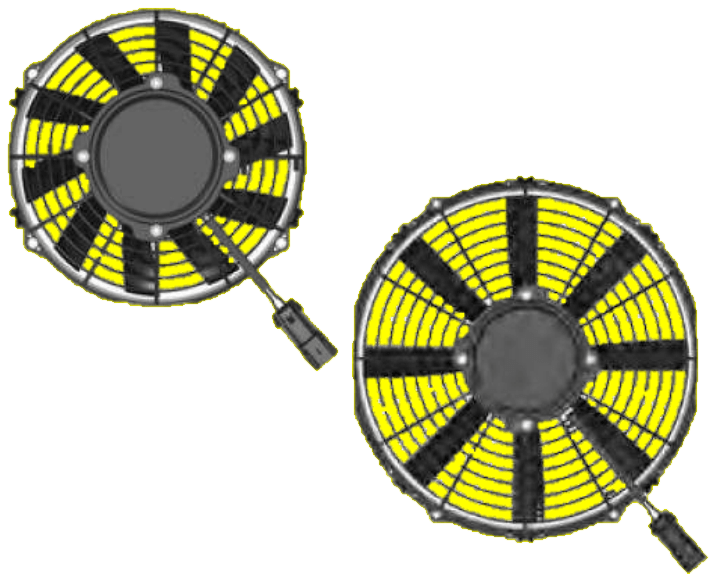

At Catford Engineering we offer a wide range of Sovatec Axial Fans. Browse our specifications and pricing below.
If you require a quotation or have any questions, get in touch with our friendly hydraulic experts today.
ISO 3834-2 (Fusion Welding Process)
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Airflow | Power (watts) | Current (amps) | Dimensions mm | |||||
|---|---|---|---|---|---|---|---|---|---|---|

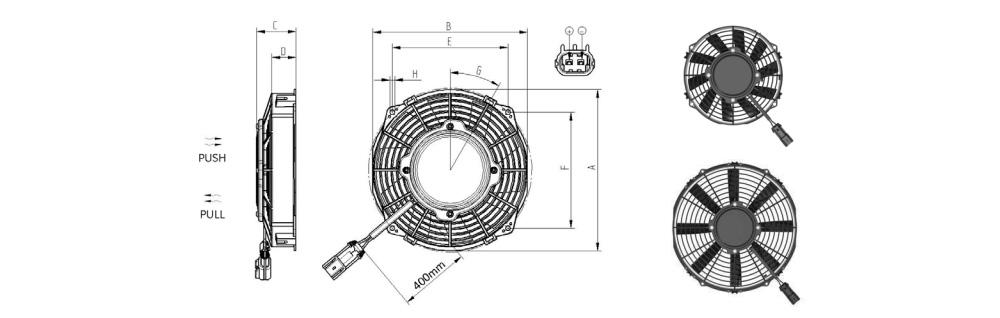

| A | B | C | D | E | F | |||||
| MBD1-190-A12H-AAA | $ | Push | 85 | 6.6 | 210 | 202 | 52 | 32 | 151 | 151 |
| MBD1-190-A12H-BAA | $ | Pull | 102 | 7.9 | 210 | 202 | 52 | 32 | 151 | 151 |
| MBD1-225-A12H-AAA | $ | Push | 83 | 6.4 | 247 | 238 | 52 | 28 | 139 | 206 |
| MBD1-225-A12H-BAA | $ | Pull | 96 | 7.4 | 247 | 238 | 52 | 28 | 139 | 206 |
| MBD1-255-A12H-AAA | $ | Push | 108 | 8.3 | 284.5 | 269 | 52 | 28 | 142 | 247 |
| MBD1-255-A12H-BAA | $ | Pull | 111 | 8.5 | 284.5 | 269 | 52 | 28 | 142 | 247 |
| MBD2-280-B12H-AAA | $ | Push | 121 | 9.3 | 310 | 294 | 64.5 | 28 | 155 | 269 |
| MBD2-280-B12H-BAA | $ | Pull | 142 | 10.9 | 310 | 294 | 64.5 | 28 | 155 | 269 |
| MBD2-305-B12H-AAA | $ | Push | 163 | 12.6 | 336 | 321 | 64.5 | 28 | 168 | 291.5 |
| MBD2-305-B12H-BAA | $ | Pull | 150 | 11.5 | 336 | 321 | 64.5 | 28 | 168 | 291.5 |
| MBD3-350-C12H-AAA | $ | Push | 242 | 18.6 | 383 | 367 | 74 | 28 | 191 | 331 |
| MBD3-350-C12H-BAA | $ | Pull | 239 | 18.3 | 383 | 367 | 74 | 28 | 191 | 331 |
| MBD3-385-C12H-AAA | $ | Push | 223 | 17.2 | 414 | 400 | 74 | 28 | 206.5 | 385.5 |
| MBD3-385-C12H-BAA | $ | Pull | 245 | 18.8 | 414 | 400 | 74 | 28 | 206.5 | 385.5 |
| Part # | List Price Excluding GST To access PRICES, please click on “Download Brochure” Button at the top of the page. | Airflow | Power (watts) | Current (amps) | Dimensions mm | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |||||
| MBD1-190-A24H-AAA | $ | Push | 78 | 3 | 210 | 202 | 52 | 32 | 151 | 151 |
| MBD1-190-A24H-BAA | $ | Pull | 89 | 3.4 | 210 | 202 | 52 | 32 | 151 | 151 |
| MBD1-225-A24H-AAA | $ | Push | 107 | 4.1 | 247 | 238 | 52 | 28 | 139 | 206 |
| MBD1-225-A24H-BAA | $ | Pull | 110 | 4.2 | 247 | 238 | 52 | 28 | 139 | 206 |
| MBD1-255-A24H-AAA | $ | Push | 118 | 4.5 | 284.5 | 269 | 52 | 28 | 142 | 247 |
| MBD1-255-A24H-BAA | $ | Pull | 119 | 4.6 | 284.5 | 269 | 52 | 28 | 142 | 247 |
| MBD2-280-B24H-AAA | $ | Push | 117 | 4.5 | 310 | 294 | 64.5 | 28 | 155 | 269 |
| MBD2-280-B24H-BAA | $ | Pull | 128 | 4.9 | 310 | 294 | 64.5 | 28 | 155 | 269 |
| MBD2-305-B24H-AAA | $ | Push | 172 | 6.6 | 336 | 321 | 64.5 | 28 | 168 | 291.5 |
| MBD2-305-B24H-BAA | $ | Pull | 177 | 6.8 | 336 | 321 | 64.5 | 28 | 168 | 291.5 |
| MBD3-350-C24H-AAA | $ | Push | 231 | 8.9 | 383 | 367 | 74 | 28 | 191 | 331 |
| MBD3-350-C24H-BAA | $ | Pull | 231 | 8.9 | 383 | 367 | 74 | 28 | 191 | 331 |
| MBD3-385-C24H-AAA | $ | Push | 252 | 9.7 | 414 | 400 | 74 | 28 | 206.5 | 385.5 |
| MBD3-385-C24H-BAA | $ | Pull | 248 | 9.5 | 414 | 400 | 74 | 28 | 206.5 | 385.5 |
